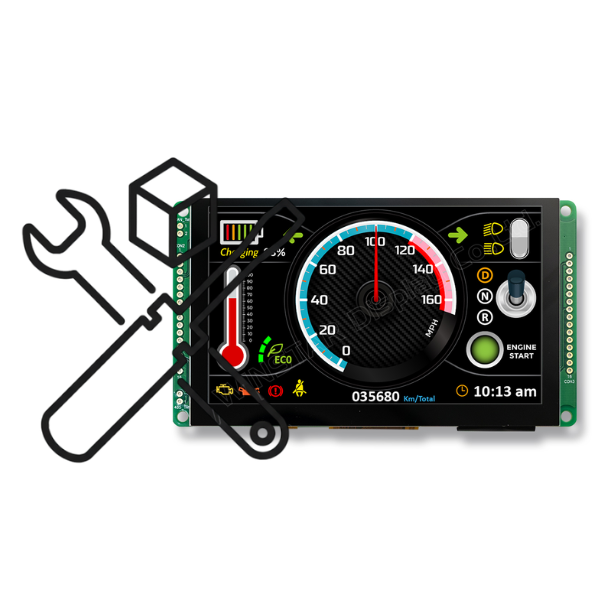

    Eval Kit for TFT 5" 800x480, RS485 ModBus interface & GPIO Support, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WWSSDEMO50F-DA-11#001

    Accessory kit

    Availability: In stock
    €139.10 excl tax
    i h

    DESCRIPTION

        Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

    Model WL0F00050000FGDADSA00-FC is a 5-inch RS485 Smart Display from WINSTAR, designed as a slave device controlled via Modbus protocol over RS485. It combines WINSTAR’s wide-temperature IPS TFT WF50-800480FD#0PW3-FC with a 4-layer FR4 PCBA and built-in firmware, offering a reliable, ready-to-use HMI solution for various applications.

    This model supports single-master platforms such as PCs (with USB-to-RS485 dongle), MCUs, and Raspberry Pi, enabling fast project deployment with reduced development effort and cost. It is ideal for industrial, vehicle, and medical applications.

    Key Features

    • Flexible input voltage range: 5V to 28V (typ. 12V)
    • RS485 interface with Modbus protocol
    • 16MB flash memory for fonts and object data
    • Capacitive touch panel support
    • Built-in buzzer controllable via Modbus RS485 commands
    • GPIO pin support
    • Built-in self-diagnostic function at startup
    • STM32F series MCU with support for ST development tools
    • Supports HOST platforms including PC (with USB-to-CAN dongle), MCU, and Raspberry Pi (with PiCAN2)
    • Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)

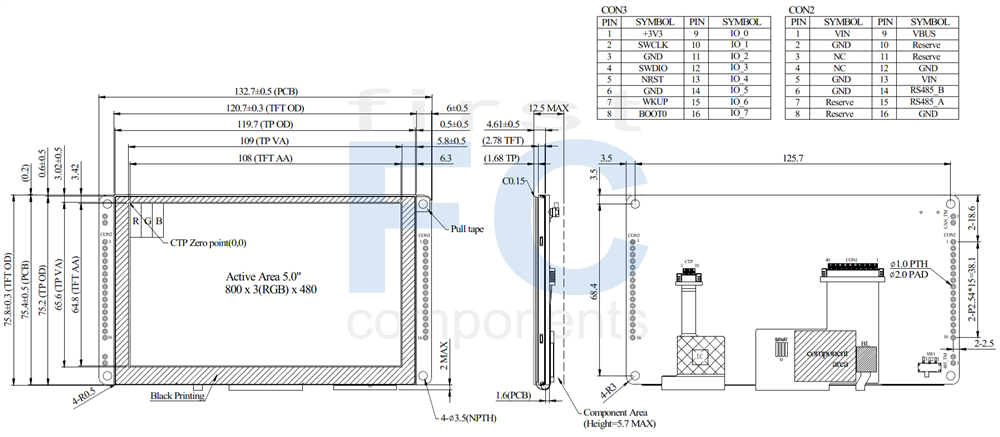

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 5V~ 28V dynamic Vdc
    Communication Interface RS485 -
    MCU STM32F750 N/A
    Flash Memory 16 MB
    LCD display size 5 inch
    Dot Matrix 800 × 3(RGB) × 480 dots
    Module dimension 132.7(W) × 75.8(H) × 12.5(D) mm
    Active area 108(W) × 64.8 (H) mm
    Pixel pitch 0.135(W) × 0.135(H) mm
    Brightness Min: 300; Typ: 400 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 15:9
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCC 5 12 28 V
    Supply Current ICC 670 240 110 mA
    I/O pin Voltage - - - 3.3 V



    BOM

    ItemDescription
    LCM WF50-800480FD#0PW3-FC
    PCBA SV10005R000FG00N0104



    Interface Pin Function

    CN2 definition

    PinSymbolFunctionRemark
    1 VIN Power supply 5V to 28V input Input
    2 GND Power supply GND input Input
    3 NC - -
    4 NC - -
    5 GND Power supply GND input GND
    6 GND Power supply GND input GND
    7 Reserve - -
    8 Reserve - -
    9 VBUS Power supply 5V input Input
    10 Reserve - -
    11 Reserve - -
    12 GND Power supply GND input Input
    13 VIN Power supply 5V to 28V input Input
    14 RS485_B RS485 DATA- I/O
    15 RS485_A RS485 DATA+ I/O
    16 GND Power supply GND input Input


    CN3 definition

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND GND Output
    7 WKUP WKup,ADC,Timer,Event,I/O TTL signal voltage is 3.3V
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot

    TTL signal voltage is 3.3V
    9 IO0 ADC,DAC,Timer,Event,I/O TTL signal voltage is 3.3V
    10 IO1 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
    11 IO2 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
    12 IO3 RST,Timer,Event,I/O TTL signal voltage is 3.3V
    13 IO4 RST,Timer,Event,I/O TTL signal voltage is 3.3V
    14 IO5 ADC,Timer,Event,I/O TTL signal voltage is 3.3V
    15 IO6 RST,Timer,Event,I/O TTL signal voltage is 3.3V
    16 IO7 RST,ADC,Event,I/O TTL signal voltage is 3.3V



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

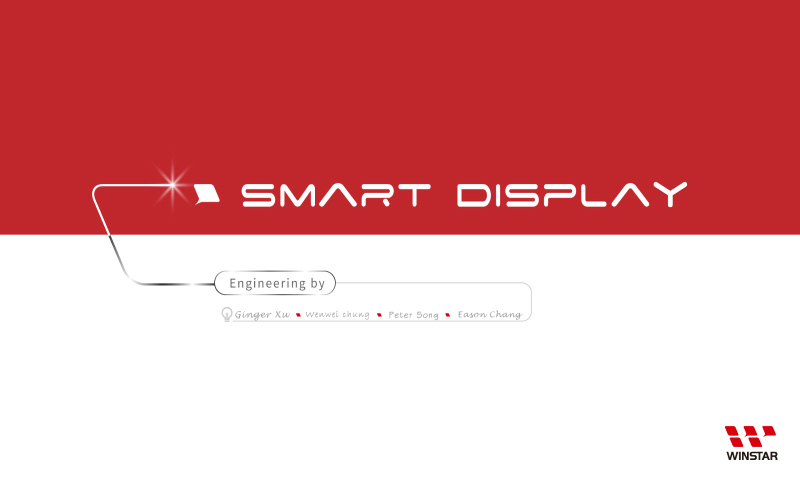

    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss

    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.

    Winstar's Smart Display Default Selection

    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

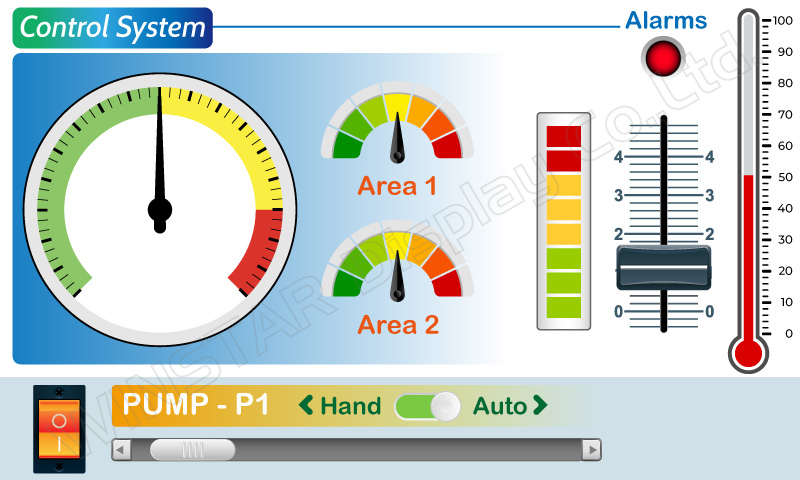

    Example Screen Layout (Industry application)

    Example Layout

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

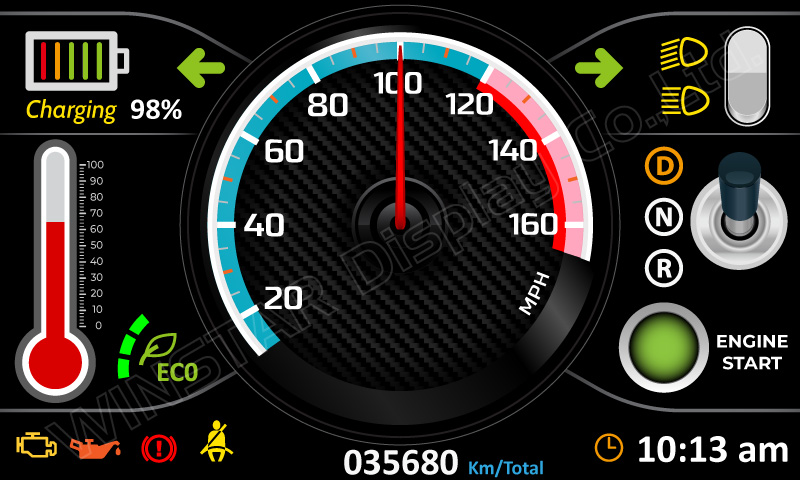

    Example Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

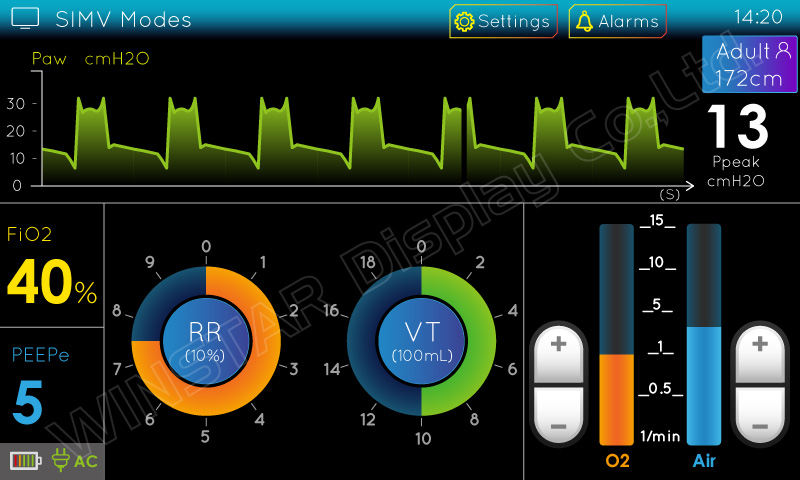

    Example Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.



    Products specifications
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Power supply 5V
    Display Interface RS485 + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
