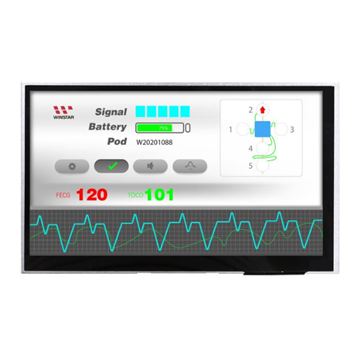

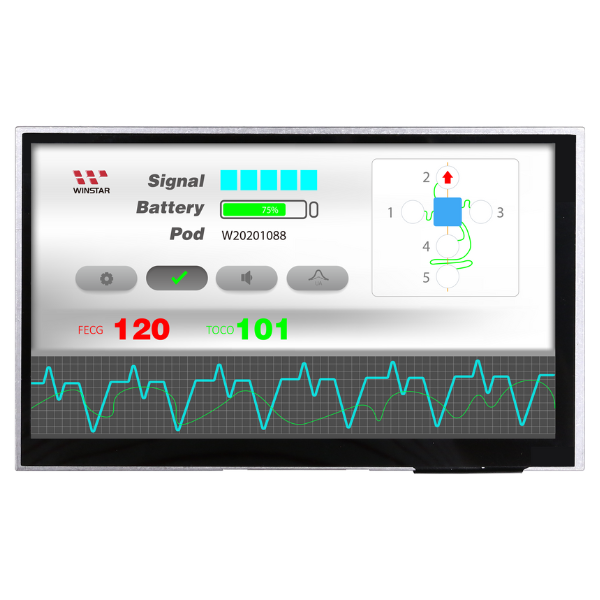

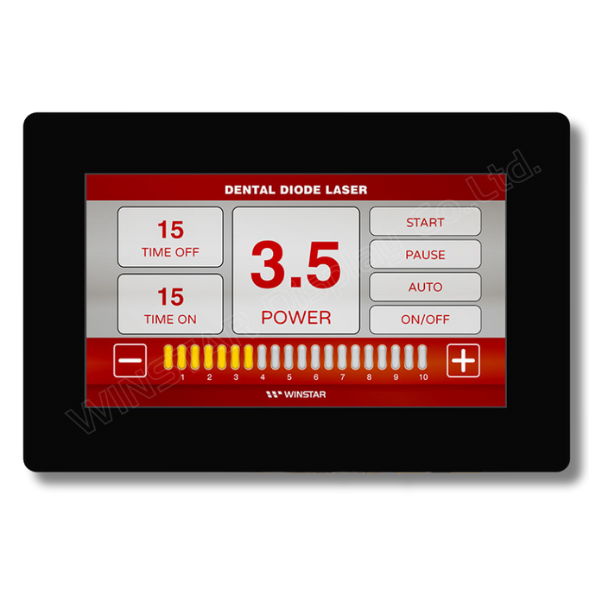

WF70-1024600A8H#CSP3-FC

TFT 7" 1024x600, HDMI Interface, IC TFP401, Wide view angle (IPS), High Brightness 850cd/m², Capacitive touch panel I2C interface (GG, GT911 IC) (Without Raspberry connectors)

DESCRIPTION

Winstar TFT 7" is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT LCD module. It is usually designed for industrial application and this module follows PoHs.

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	1024 × RGB × 600(TFT)	dots
Module dimension	202.0(W) × 135.5(H) × 25.0(D)	mm
Active area	154.2114 × 85.92	mm
Dot pitch	0.1506 × 0.1432	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	16:9
Controller IC	TFP401 or equivalent
TFT Interface	HDMI (only for DVI)
CTP IC	GT911 or equivalent
CTP Interface	I2C
CTP FW Version	67
CTP Resolution	1024*600
Backlight Type	LED, Normally White
With/Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VDD	－	4.9	5	5.1	V
Supply Current For LCM	IDD	－	－	1940	2920	mA
LED life time	－	－	－	50,000	－	Hr

Interface

USB

Pin	Symbol	Function
1	5v	Power Supply (5V)
2	D-	Data line -
3	D+	Data line +
4	NC	No connection
5	GND	Power Ground

POWER JACK

Pin No.	Symbol	I/O	Function
1	5V	P	Power Supply (5V)
2	GND	P	Ground
3	NC		No connection

DVI

Pin No.	Symbol	I/O	Function
1	Rx2+	I	Channel-2 positive receiver input; low-voltage signal differential- input pair.
2	GND	P	Ground
3	Rx2-	I	Channel-2 negative receiver input; low-voltage signal differential- input pair.
4	Rx1+	I	Channel-1 positive receiver input; low-voltage signal differential- input pair.
5	GND	P	Ground
6	Rx1-	I	Channel-1 negative receiver input; low-voltage signal differential- input pair.
7	Rx0+	I	Channel-0 positive receiver input; low-voltage signal differential- input pair.
8	GND	P	Ground
9	Rx0-	I	Channel-0 negative receiver input; low-voltage signal differential- input pair.
19	RxC+	I	Clock positive receiver input; low-voltage signal differential- input pair.
11	GND	P	Ground
12	RxC-	I	Clock negative receiver input; low-voltage signal differential- input pair.
13-14	NC	-	No connection
15	SCL	I/O	DDC (Data Display Channel) Clock
16	SDA	I/O	DDC (Data Display Channel) Data
17	GND	P	ground
18	5V	P	Power Supply
19	Detect	I/O	Hot plug detect

SKU: WF70-1024600A8H#CSP3-FC

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Touch-Panel Connector
Added Board
Added Accessory 1
Added Accessory 2

Prezzi per quantità

Quantità

10+

Prezzo

€92,20

€83,00

€67,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€92,20 IVA esclusa
