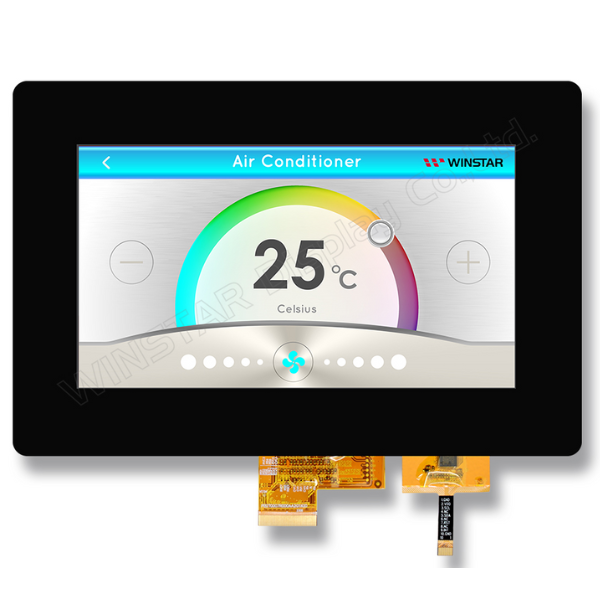

WF70-1024600A8L#CP3-FC

Immagine di WF70-1024600A8L#CP3-FC Immagine di WF70-1024600A8L#CP3-FC
TFT 7" 1024x600 LCD Panel, Interface LVDS, 450cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

Description



The WF70-1024600A8L#CP3-FC is a 7-inch TFT LCD module with a resolution of 1024 × 600 pixels and an aspect ratio of 16:9. This TFT module is equipped with a projected capacitive touch screen and adopts IPS display technology, providing wider viewing angles of 85 degrees in all directions (left, right, up, and down). It features built-in ST5021 and ST5651 driver ICs and supports an LVDS interface. The LVDS interface is becoming increasingly popular for TFT displays requiring high-speed data transmission. It provides a high data transmission rate with low power consumption, offering advantages such as compatibility with lower voltage power supply and noise, higher noise suppression ability, and more reliable signal transmission.





DRAWING



SPECIFICATIONS



Interface

1.LCM PIN Definition

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 RESET I Global reset pin
6 STBYB I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 NC --- No connection
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 NC --- No connection
37 NC --- No connection
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode





2. PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 202.0(W) × 135.5(H) × 8.4(D) mm
Active area 154.2144 × 85.92 mm
Dot pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
TFT Interface LVDS
Aspect Ratio 16:9
TFT Driver IC ST5021 + ST5651 or equivalent
Backlight Type LED, Normally White
PCTP IC GT911 or Equivalent
PCAP Interface I2C
PCAP FW Version 67
PCAP Resolution 1024*600
Touch Panel Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Supply CTP VDDT 3.0 3.3 3.5 V
ICTP － 16 24 mA
Analog Power AVDD 8.9 9.0 9.1 V
TFT Gate ON Voltage VGH 17 18 19 V
TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
TFT Common Voltage Vcom 3.0 3.15 3.3 V
Current for Driver IDD - 14 21 mA
Power Current IAVDD - 25 - mA
TFT Gate ON Current IVGH - 1 - mA
TFT Gate OFF Current IVGL - 1 - mA
TFT Common Current IVCOM - 1 - mA
SKU: WF70-1024600A8L#CP3-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€55,90
€46,60
€40,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€55,90 IVA esclusa

Description



The WF70-1024600A8L#CP3-FC is a 7-inch TFT LCD module with a resolution of 1024 × 600 pixels and an aspect ratio of 16:9. This TFT module is equipped with a projected capacitive touch screen and adopts IPS display technology, providing wider viewing angles of 85 degrees in all directions (left, right, up, and down). It features built-in ST5021 and ST5651 driver ICs and supports an LVDS interface. The LVDS interface is becoming increasingly popular for TFT displays requiring high-speed data transmission. It provides a high data transmission rate with low power consumption, offering advantages such as compatibility with lower voltage power supply and noise, higher noise suppression ability, and more reliable signal transmission.





DRAWING



SPECIFICATIONS



Interface

1.LCM PIN Definition

Pin No.SymbolI/OFunction
1 VCOM P Common Voltage
2 VDD P Digital circuit
3 VDD P Digital circuit
4 NC --- No connection
5 RESET I Global reset pin
6 STBYB I Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND P Ground
8 RXIN0- I Negative LVDS differential data input
9 RXIN0+ I Positive LVDS differential data input
10 GND P Ground
11 RXIN1- I Negative LVDS differential data input
12 RXIN1+ I Positive LVDS differential data input
13 GND P Ground
14 RXIN2- I Negative LVDS differential data input
15 RXIN2+ I Positive LVDS differential data input
16 GND P Ground
17 RXCLKIN- I Negative LVDS differential clock input
18 RXCLKIN+ I Positive LVDS differential clock input
19 GND P Ground
20 RXIN3- I Negative LVDS differential data input
21 RXIN3+ I Positive LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 NC --- No connection
28 SELB I 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Negative power for TFT
36 NC --- No connection
37 NC --- No connection
38 VGH P Positive power for TFT
39 LED+ P LED Anode
40 LED+ P LED Anode





2. PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 202.0(W) × 135.5(H) × 8.4(D) mm
Active area 154.2144 × 85.92 mm
Dot pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
TFT Interface LVDS
Aspect Ratio 16:9
TFT Driver IC ST5021 + ST5651 or equivalent
Backlight Type LED, Normally White
PCTP IC GT911 or Equivalent
PCAP Interface I2C
PCAP FW Version 67
PCAP Resolution 1024*600
Touch Panel Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3.0 3.3 3.6 V
Supply CTP VDDT 3.0 3.3 3.5 V
ICTP － 16 24 mA
Analog Power AVDD 8.9 9.0 9.1 V
TFT Gate ON Voltage VGH 17 18 19 V
TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
TFT Common Voltage Vcom 3.0 3.15 3.3 V
Current for Driver IDD - 14 21 mA
Power Current IAVDD - 25 - mA
TFT Gate ON Current IVGH - 1 - mA
TFT Gate OFF Current IVGL - 1 - mA
TFT Common Current IVCOM - 1 - mA
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x85.92
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x85.92
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Prodotti correlati

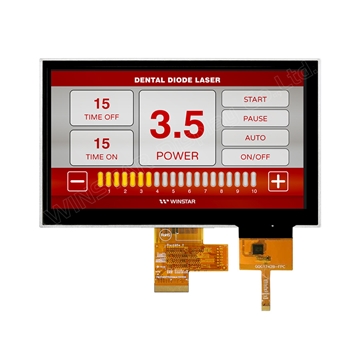

Immagine di WF70-1024600A8L#BP3-FC
