RECOMMENDED ONLY AS SPARE PARTS
For new projects please contact us at [email protected].
DESCRIPTION
3.97 inch IPS TFT-LCD display module; made of resolution 480 x 800 pixels. WF40C module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 720 (typical value), brightness 600 nits (typical value), Anti-Glare surface panel.
This 3.97 inch MIPI LCD display is portrait mode; it integrated driver IC ST7701S on module, interface supply voltage range 2.8V to 3.3V. Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.

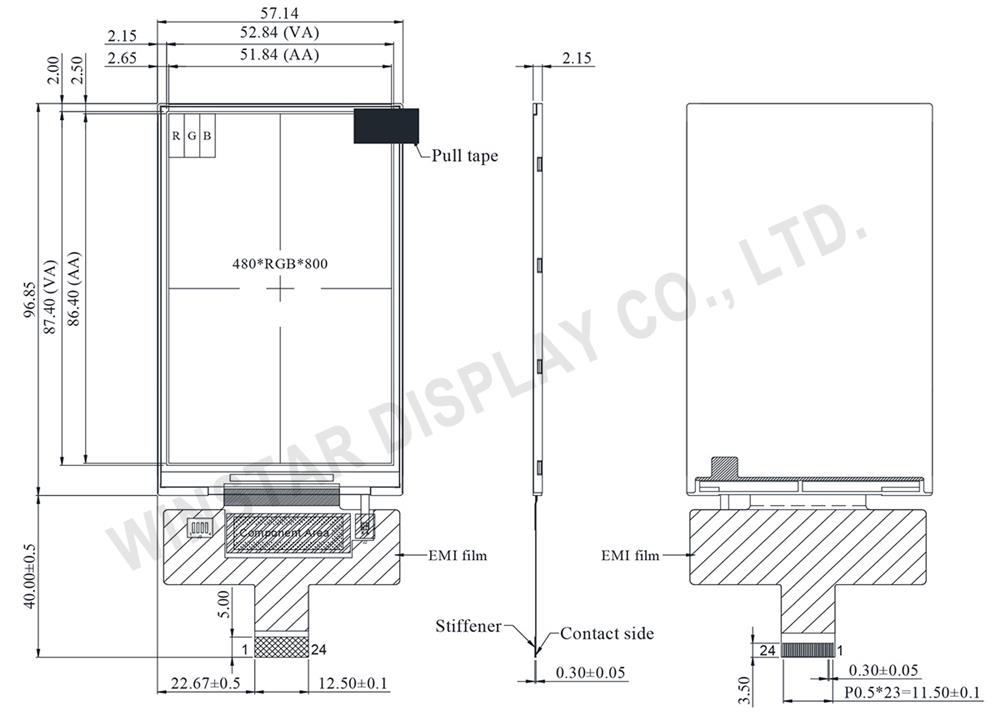

DRAWING

SPECIFICATIONS
Interface
| Pin | Symbol | Function |
| 1 |
GND |
Power ground |
| 2~5 |
NC |
No connect |
| 6 |
GND |
Power ground |
| 7 |
D0N |
MIPI DSI differential data pair (Data lane 0) |
| 8 |
D0P |
| 9 |
GND |
Power ground |
| 10 |
CLK_N |
MIPI DSI differential clock pair |
| 11 |
CLK_P |
| 12 |
GND |
Power ground |
| 13 |
D1N |
MIPI DSI differential data pair(Data lane 1) |
| 14 |
D1P |
| 15 |
GND |
Power ground |
| 16 |
IOVCC |
I/O and interface power supply (1.8V) |
| 17 |
RESET |
Reset input |
| 18 |
TE |
Tearing effect output pin. |
| 19 |
VCI |
Analog power supply |
| 20 |
VCI |
Analog power supply |
| 21 |
NC |
No connect |
| 22 |
LEDK |
Power for LED backlight cathode |
| 23 |
LEDA |
Power for LED backlight anode |
| 24 |
GND |
Power ground |
General Specifications
| Item | Dimension | Unit |
| Size |
3.97 |
inch |
| Dot Matrix |
480× 3(RGB) × 800 |
dots |
| Module dimension |
57.14(H) × 96.85 (W)× 2.15 |
mm |
| Active area |
51.84(H) × 86.4 (V) |
mm |
| Dot pitch |
0.108(H) × 0.108(V) |
mm |
| LCD type |
TFT, Normally Black, Transmissive |
| View Direction |
IPS |
| Aspect Ratio |
Portrait |
| Interface |
MIPI |
| Driver IC |
ST7701S |
| Backlight Type |
LED, Normally White |
| Touch Panel |
Without Touch Panel |
| Surface |
Anti-Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
| Item | Symbol | Values | Unit |
| Min. | Typ. | Max. |
| Interface Supply Voltage |
VCI |
2.8 |
- |
3.3 |
V |
| Power voltage |
IOVCC |
1.65 |
1.8 |
3.3 |
V |
| Current for Driver(White) |
IDD |
- |
65 |
98 |
mA |
Specifiche di prodotto
|
Size
|
3.97" |
|
Resolution
|
480x800 |
|
Active Area (mm)
|
51.84x86.40 |
|
Color
|
Full Color |
|
Display Interface
|
MIPI |
|
Display IC
|
ST7701S |
|
View Angle
|
IPS |
|
Frame
|
No |
|
Touch Panel
|
No touch |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
24 |
|
Pin Pitch
|
0.5mm |
|
Preferred - Not Preferred
|
Not Preferred |
