DESCRIPTION

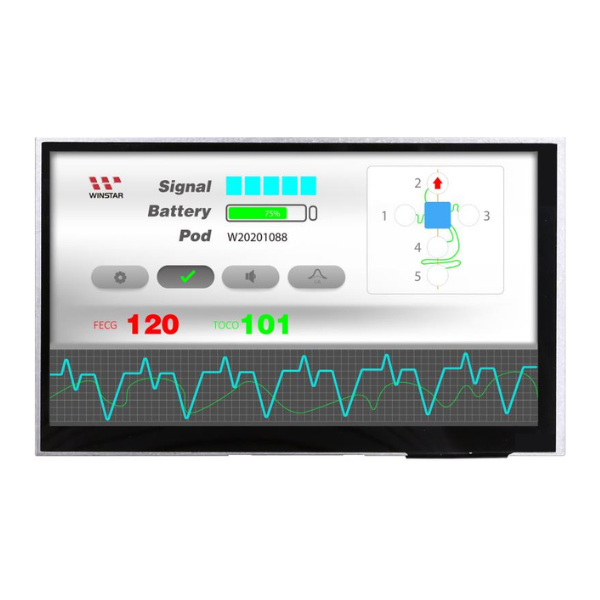

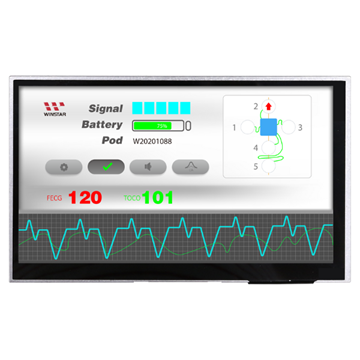

Winstar 7" medium-sized supporting for HDMI signal display, made of high resolution 1024x600 dots. This 7 inch TFT Display comes with a board which supports HDMI signal interface and a 40-pin connector on it; it is designed to make Raspberry Pi usage become easily.
You can simply use this medium-sized TFT display with your Raspberry Pi, and also you can use it as computer display with any device which supports HDMI signal output. This 7" TFT model comes in 1024x600 resolutions that is high quality and would be good for embedded computing usage. Please note, this part no. does not include a HDMI connector or USB cable.

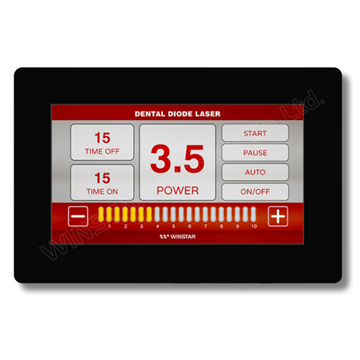

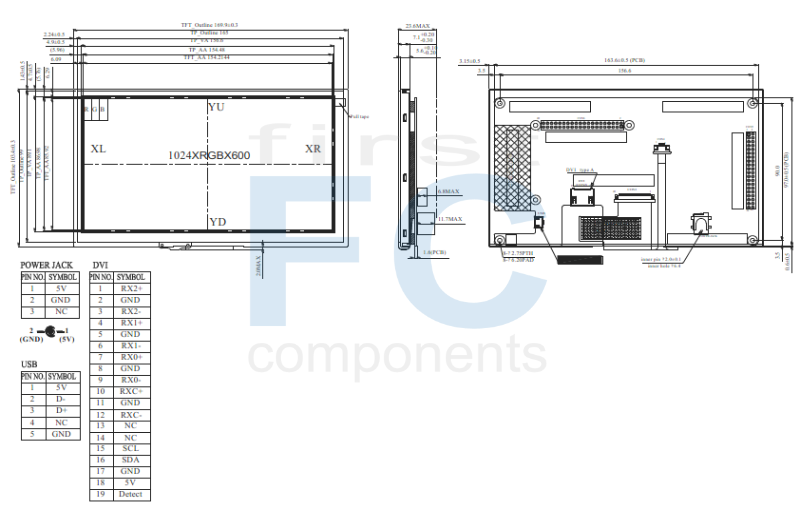

DRAWING

SPECIFICATIONS
Interface
1. HDMI
| Pin | Symbol | I/0 | Function |
| 1 |
Rx2+ |
I |
Channel-2 positive receiver input; low-voltage signal differential-input pair. |
| 2 |
GND |
P |
Ground |
| 3 |
Rx2- |
I |
Channel-2 negative receiver input; low-voltage signal differential-input pair. |
| 4 |
Rx1+ |
I |
Channel-1 positive receiver input; low-voltage signal differential-input pair. |
| 5 |
GND |
P |
Ground |
| 6 |
Rx1- |
I |
Channel-1 negative receiver input; low-voltage signal differential-input pair. |
| 7 |
Rx0+ |
I |
Channel-0 positive receiver input; low-voltage signal differential-input pair. |
| 8 |
GND |
P |
Ground |
| 9 |
Rx0- |
I |
Channel-0 negative receiver input; low-voltage signal differential-input pair. |
| 10 |
RxC+ |
I |
Clock positive receiver input: low-voltage signal differential - input pair |
| 11 |
GND |
P |
Ground |
| 12 |
RxC- |
I |
Clock negative receiver input; low-voltage signal differential - input pair |
| 13-14 |
NC |
- |
No connection |
| 15 |
SCL |
I/O |
DDC (Data Display Channel) Clock |
| 16 |
SDA |
I/O |
DDC (Data Display Channel) Data |
| 17 |
GND |
P |
Ground |
| 18 |
5V |
P |
Power Supply |
| 19 |
Detact |
I/O |
Hot plug detact |
4. POWER JACK
| Pin No. | Symbol | I/O | Function |
| 1 |
5V |
P |
Power Supply (5V) |
| 2 |
GND |
P |
Ground |
| 3 |
NC |
|
No connection |
General Specifications
| Item | Dimension | Unit |
| Size |
7.0 |
inch |
| Dot Matrix |
1024 × RGB × 600(TFT) |
dots |
| Module dimension |
169.9(W) × 103.4(H) × 22.0(D) |
mm |
| Active area |
154.2114 × 85.92 |
mm |
| Dot pitch |
0.1506 × 0.1432 |
mm |
| LCD type |
TFT, Normally Black, Transmissive |
| View Direction |
85/85/85 |
| Aspect Ratio |
16:9 |
| Backlight Type |
LED, Normally White |
| Controller IC |
TFP401 or equivalent |
| TFT Interface |
Support HDMI Connector (Only DVI Signal) |
| Touch Screen |
with RPT |
| Surface |
Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For LCM |
VDD |
- |
4.9 |
5 |
5.1 |
V |
| Supply Current For LCM |
IDD |
- |
- |
1635 |
2453 |
mA |
| LED life time |
- |
- |
- |
50,000 |
- |
Hr |
Specifiche di prodotto
|
Size
|
7" |
|
Resolution
|
1024x600 |
|
Active Area (mm)
|
154.21x85.92 |
|
Color
|
Full Color |
|
Display Interface
|
HDMI |
|
View Angle
|
IPS |
|
Frame
|
No |
|
Touch Panel
|
Resistive |
|
O. Temperature (°C)
|
-20~70 |
|
Data Connection
|
HDMI Connector |
|
Preferred - Not Preferred
|
Preferred |
