    WF70-1024600A8H#0SP3-FC

    TFT 7" 1024x600, HDMI Interface, IC TFP401, Wide View Angle (IPS), High Brightness 850cd/m², Capacitive touch panel Mouse mode with USB interface (GG, ILI2130 IC) (Without Raspberry connectors)
    Brand: Winstar
    Cod.: WF70-1024600A8H#0SP3-FC

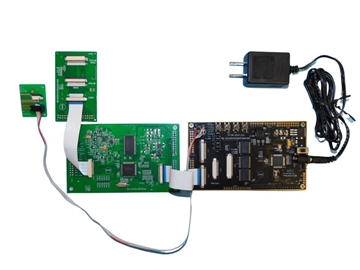

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €105,30
    €94,80
    €89,10

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €105,30 IVA esclusa
    i h



    DESCRIPTION

    TFT 7.0”is a IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT LCD module, It is usually designed for industrial application and this module follows RoHs.



    DRAWING

    SPECIFICATIONS

    Interface

    USB

    Pin

    Symbol

    Function

    Remark

    1

    5V

    Power Supply (5V)



    2

    D-

    Data line -



    3

    D+

    Data line +



    4

    NC

    No connection



    5

    GND

    Power Ground





    POWER JACK

    Pin No.

    Symbol

    I/O

    Function

    Remark

    1

    5V

    P

    Power Supply (5V)



    2

    GND

    P

    Ground



    3

    NC



    No connection





    DVI

    Pin No.

    Symbol

    I/O

    Function

    Remark

    1

    Rx2+

    I

    +LVDS Differential Data Input



    2

    GND

    P

    Ground



    3

    Rx2-

    I

    -LVDS Differential Data Input



    4

    Rx1+

    I

    +LVDS Differential Data Input



    5

    GND

    P

    Ground



    6

    Rx1-

    I

    -LVDS Differential Data Input



    7

    Rx0+

    I

    +LVDS Differential Data Input



    8

    GND

    P

    Ground



    9

    Rx0-

    I

    -LVDS Differential Data Input



    10

    RxC+

    I

    +LVDS Differential Clock Input



    11

    GND

    P

    Ground



    12

    RxC-

    I

    -LVDS Differential Clock Input



    13-14

    NC

    -

    No connection



    15

    SCL

    I/O

    DDC(Data Display Channel) Clock



    16

    SDA

    I/O

    DDC(Data Display Channel) Data



    17

    GND

    P

    Ground



    18

    5V

    P

    Power Supply



    19

    Detect

    I/O

    Hot plug detect





    General Specifications

    Item

    Dimension

    Unit

    Size

    7.0

    inch

    Dot Matrix

    1024 x RGBx600(TFT)

    dots

    Module dimension

    169.9(W) x 103.4(H) x 23.9 (D)

    mm

    Active area

    154.2144 x 85.92

    mm

    Pixel pitch

    0.1506 x 0.1432

    mm

    LCD type

    TFT, Normally Black, Transmissive

    Viewing Angle

    85/85/85/85

    Aspect Ratio

    16:9

    Controller IC

    TFP401 or equivalent

    Backlight Type

    LED, Normally White

    TFT Interface

    HDMI(only for DVI)

    CTP IC

    ILI2130 or Equivalent

    CTP Interface

    USB

    CTP FW Version

    0x07.0x00.0x00.0x00.0x65.0x90.0x00.0x01

    CTP Resolution

    16384*16384

    With /Without TP

    With CTP

    Surface

    Glare



    Electrical Characteristics

    Operating conditions:

    Item

    Symbol

    Condition

    Min

    Typ

    Max

    Unit

    Remark

    Supply Voltage For LCM

    VDD

    -

    4.9

    5

    5.1

    V

    -

    Supply Current For LCM

    IDD

    -

    -

    1940

    2920

    mA

    Note 1

    LED life time

    -

    -

    -

    50,000

    -

    Hr

    Note 4



    Optical Characteristics

    Item

    Symbol



    Min



    Unit

    Remark

    Response time

    Tr

    8=0°、Φ=0°

    -

    13

    20

    .ms

    Note 3

    Tf

    -

    15

    25

    Contrast ratio

    CR

    At optimized
    viewing angle

    600

    800

    -

    -

    Note 4

    Color

    Chromaticity

    White

    Wx

    8=0°、Φ=0

    0.269

    0.319

    0.369

    -

    Note

    2,5,6

    Wy

    0.291

    0.341

    0.391

    -

    Viewing angle



    ΘR

    CR≧10

    80

    85

    -



    Note 1

    ΘL

    80

    85

    -



    ΦT

    80

    85

    -

    ΦB

    80

    85

    -

    Brightness

    -

    -

    800

    850

    -

    cd/m2

    Center of display

    Uniformity

    (U)

    -

    75

    -

    -

    %

    Note 5

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface HDMI
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
