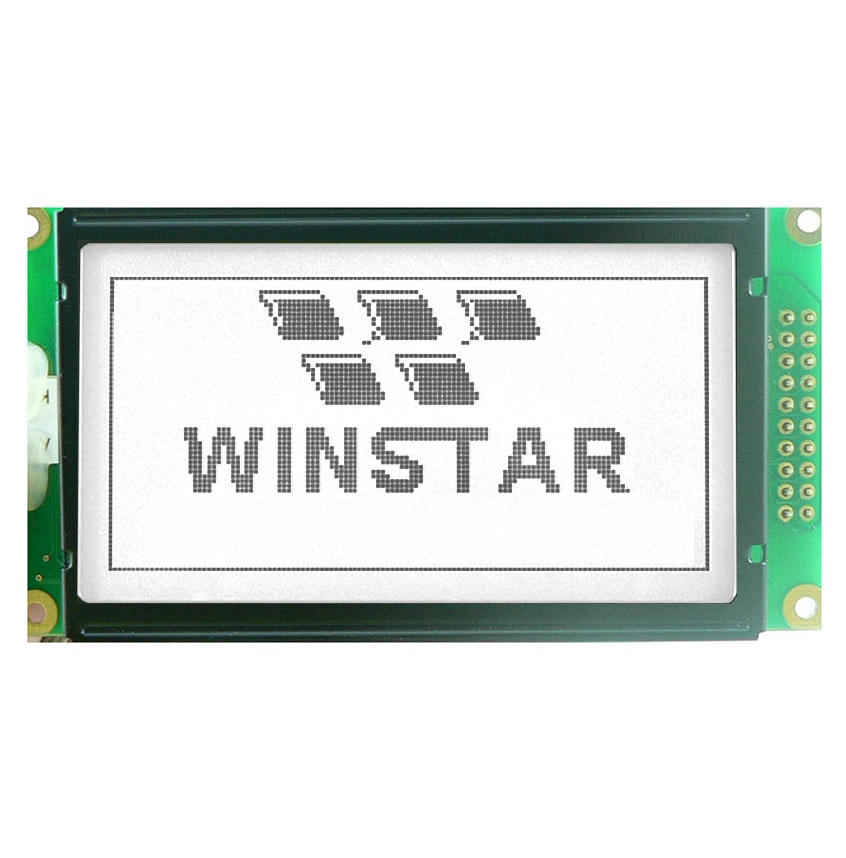

WG12864M-TFH-V#N

Graphic LCD 2.9" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION



WG12864M is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 95.5x50.2 mm and AA size 66.52x33.24 mm; it is smaller than WG12864K.  WG12864M model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  WG12864M LCD display is 5V power supply and negative voltage built in on module.  This WG12864M module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

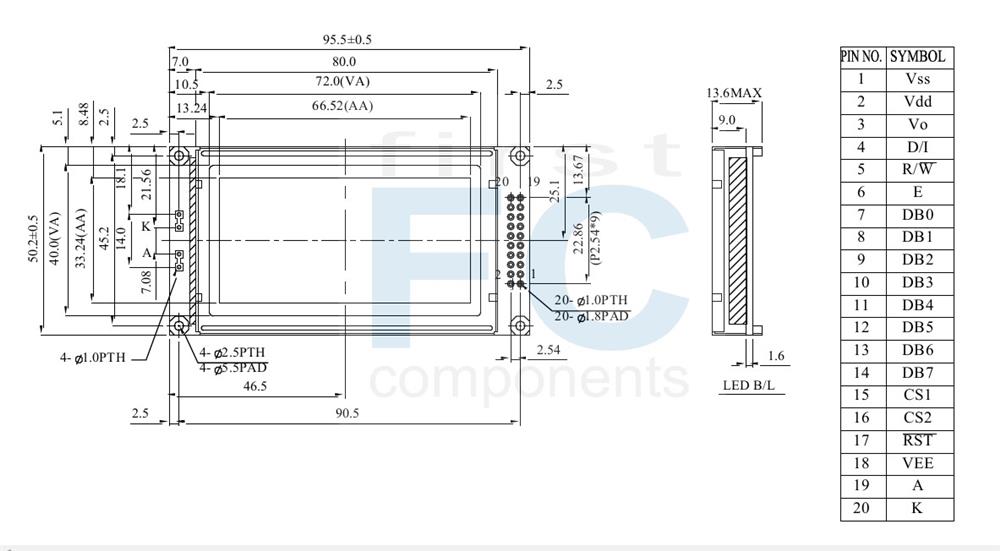

DRAWING




SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction  select signal
5 R/ W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Chip Select for IC1
16 CS2 Chip Select for IC2
17 /RST Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 95.5 × 50.2 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 90.5 × 45.2 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 9.10 V


SKU: WG12864M-TFH-V#N
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€20.20
€14.80
€14.30
€13.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.20 excl tax

DESCRIPTION



WG12864M is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 95.5x50.2 mm and AA size 66.52x33.24 mm; it is smaller than WG12864K.  WG12864M model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  WG12864M LCD display is 5V power supply and negative voltage built in on module.  This WG12864M module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING




SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 D/I Data/ Instruction  select signal
5 R/ W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 CS1 Chip Select for IC1
16 CS2 Chip Select for IC2
17 /RST Controller reset signal, Active Low
18 VEE Negative Voltage Output
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 95.5 × 50.2 mm
Viewing Area 72.0 × 40.0 mm
Mounting Hole 90.5 × 45.2 mm
Dot Pitch 0.52 × 0.52 mm
Dot Size 0.48 × 0.48 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 9.10 V


Date Notice Link/Description
2023/04/06 PCN Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
