WFN0210DA2#0P0-FC

Picture of WFN0210DA2#0P0-FC Picture of WFN0210DA2#0P0-FC
TFT 2.1" 480x480, Round LCD Panel, Interface RGB+SPI IC ST7701S, Wide View Angle (IPS), 450 cd/m², Standard Temp., No Touch

DESCRIPTION

The WFN0210DA2#0P0-FC is a 2.1-inch 480x480 round TFT display with IPS panel, featuring wide viewing angles (85/85/85/85) and consistent image quality. With a typical brightness of 450 cd/m² (380~450 cd/m²) and a contrast ratio of 1000:1, the display ensures reliable visibility under moderate lighting conditions.

This display module utilizes the ST7701 IC for display driving, supporting both 3-wire SPI and 18-bit RGB interfaces for flexible system integration. Its anti-glare surface enhances readability, while the square active area of 53.28 x 53.28 mm offers a true circular display zone, ideal for modern round-interface designs.

With a compact profile of 56.18 x 59.71 x 2.3 mm, the module is easy to integrate into space-constrained enclosures. It is well-suited for applications such as smart home devices, HVAC systems, industrial control panels, and other products requiring a stylish and reliable round display.

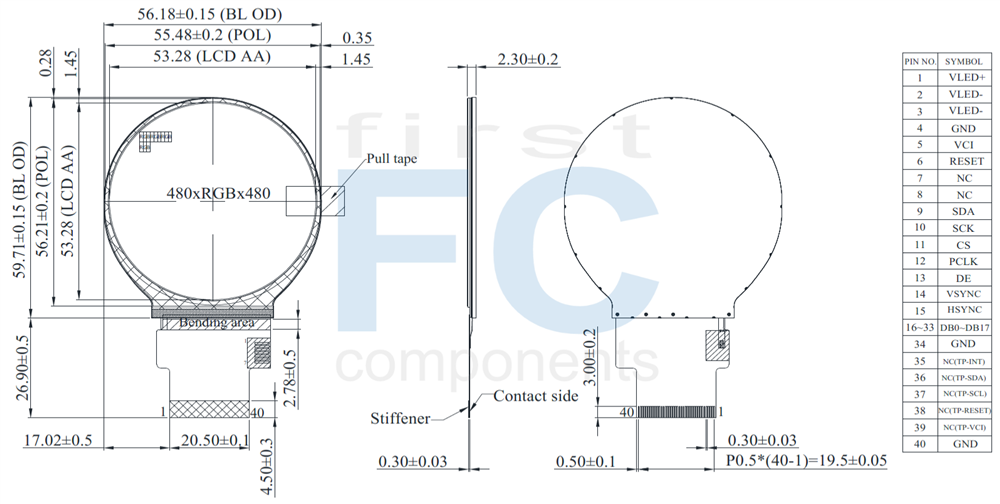

DRAWING

2.1-inch Round TFT Display with IPS Panel - WFN0210A2T0YADNN000

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.1 inch
Dot Matrix 480 x RGB x 480 (TFT) dots
Module dimension 56.18 x 59.71 x 2.3 mm
Active area 53.28 x 53.28 mm
Pixel pitch 0.111 x 0.111 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 3W SPI+RGB18bit
Backlight Type LED, Normally White
TFT Controller IC ST7701
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating Conditions

ItemSymbolMin.Typ.Max.Unit
Power supply Voltage VCI 2.6 3.0 3.3 V
Input Signal Voltage Low Level VIL 0 - 0.3 x VCI V
High Level VIH 0.7 x VCI - VCI V
Power supply Voltage IVCI - 24 35 mA


LED Driving Conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 20 25 mA
LED voltage VLED+ - 12.8 14 V
LED Life Time - 30000 - - Hr



Interface

LCM PIN Definition

Match connector: XF2M-4015-1A（OMRON）or equivalent.
PIN NoSymbolI/ODescription
1 VLED+ P LED ANODE
2 VLED- P LED CATHODE
3 VLED- P LED CATHODE
4 GND P Ground
5 VCI P Power supply (VCI=VDD=VCC=VDDI)
6 RESET I Reset Signal ,Active Low (RESX)
7 NC - No connect.
8 NC - No connect.
9 SDA I SPI Data signal (In: DIN, Out: DOUT)
10 SCK I SPI Clock signal (SCL)
11 CS I SPI Chip select signal (CSX)
12 PCLK I RGB dot clock signal (DOTCLK)
13 DE I RGB data enable signal (ENABLE)
14 VSYNC I RGB frame synchronizing signal (VS)
15 HSYNC I RGB line synchronizing signal (HS)
16~33 DB0~DB17 I RGB data signal:
DB0:BLUE LSB--DB5:BLUE MSB; DB6:GREEN LSB--DB11:GREEN,MSB; DB12:RED LSB--DB17:RED MSB.
34 GND P Ground
35 NC (TP_INT) - No connection (Touch Interrupt)
36 NC(TP_SDA) - No connection (Touch IIC Data signal)
37 NC(TP_SCL) - No connection (Touch IIC Clock signal)
38 NC(TP_RESET) - No connection (Touch Reset Signal)
39 NC(TP_VCI) - No connection (Touch Power supply)
40 GND P Ground
I：Input, O：Output, P：Power/Ground
SKU: WFN0210DA2#0P0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€25.00
€20.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€25.00 excl tax

DESCRIPTION

The WFN0210DA2#0P0-FC is a 2.1-inch 480x480 round TFT display with IPS panel, featuring wide viewing angles (85/85/85/85) and consistent image quality. With a typical brightness of 450 cd/m² (380~450 cd/m²) and a contrast ratio of 1000:1, the display ensures reliable visibility under moderate lighting conditions.

This display module utilizes the ST7701 IC for display driving, supporting both 3-wire SPI and 18-bit RGB interfaces for flexible system integration. Its anti-glare surface enhances readability, while the square active area of 53.28 x 53.28 mm offers a true circular display zone, ideal for modern round-interface designs.

With a compact profile of 56.18 x 59.71 x 2.3 mm, the module is easy to integrate into space-constrained enclosures. It is well-suited for applications such as smart home devices, HVAC systems, industrial control panels, and other products requiring a stylish and reliable round display.



DRAWING

2.1-inch Round TFT Display with IPS Panel - WFN0210A2T0YADNN000

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.1 inch
Dot Matrix 480 x RGB x 480 (TFT) dots
Module dimension 56.18 x 59.71 x 2.3 mm
Active area 53.28 x 53.28 mm
Pixel pitch 0.111 x 0.111 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 85/85/85/85
TFT Interface 3W SPI+RGB18bit
Backlight Type LED, Normally White
TFT Controller IC ST7701
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating Conditions

ItemSymbolMin.Typ.Max.Unit
Power supply Voltage VCI 2.6 3.0 3.3 V
Input Signal Voltage Low Level VIL 0 - 0.3 x VCI V
High Level VIH 0.7 x VCI - VCI V
Power supply Voltage IVCI - 24 35 mA


LED Driving Conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 20 25 mA
LED voltage VLED+ - 12.8 14 V
LED Life Time - 30000 - - Hr



Interface

LCM PIN Definition

Match connector: XF2M-4015-1A（OMRON）or equivalent.
PIN NoSymbolI/ODescription
1 VLED+ P LED ANODE
2 VLED- P LED CATHODE
3 VLED- P LED CATHODE
4 GND P Ground
5 VCI P Power supply (VCI=VDD=VCC=VDDI)
6 RESET I Reset Signal ,Active Low (RESX)
7 NC - No connect.
8 NC - No connect.
9 SDA I SPI Data signal (In: DIN, Out: DOUT)
10 SCK I SPI Clock signal (SCL)
11 CS I SPI Chip select signal (CSX)
12 PCLK I RGB dot clock signal (DOTCLK)
13 DE I RGB data enable signal (ENABLE)
14 VSYNC I RGB frame synchronizing signal (VS)
15 HSYNC I RGB line synchronizing signal (HS)
16~33 DB0~DB17 I RGB data signal:
DB0:BLUE LSB--DB5:BLUE MSB; DB6:GREEN LSB--DB11:GREEN,MSB; DB12:RED LSB--DB17:RED MSB.
34 GND P Ground
35 NC (TP_INT) - No connection (Touch Interrupt)
36 NC(TP_SDA) - No connection (Touch IIC Data signal)
37 NC(TP_SCL) - No connection (Touch IIC Clock signal)
38 NC(TP_RESET) - No connection (Touch Reset Signal)
39 NC(TP_VCI) - No connection (Touch Power supply)
40 GND P Ground
I：Input, O：Output, P：Power/Ground
Products specifications
Brand Winstar
Size 2.1"
Resolution 480x480
Active Area (mm) 53.28x53.28
Color Full Color
Display Interface RGB+SPI
Display IC ST7701S
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.1"
Resolution 480x480
Active Area (mm) 53.28x53.28
Color Full Color
Display Interface RGB+SPI
Display IC ST7701S
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
