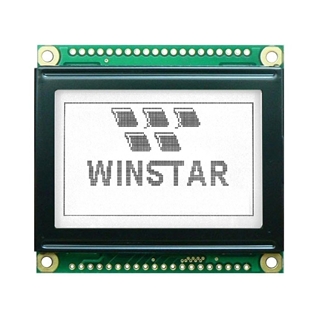

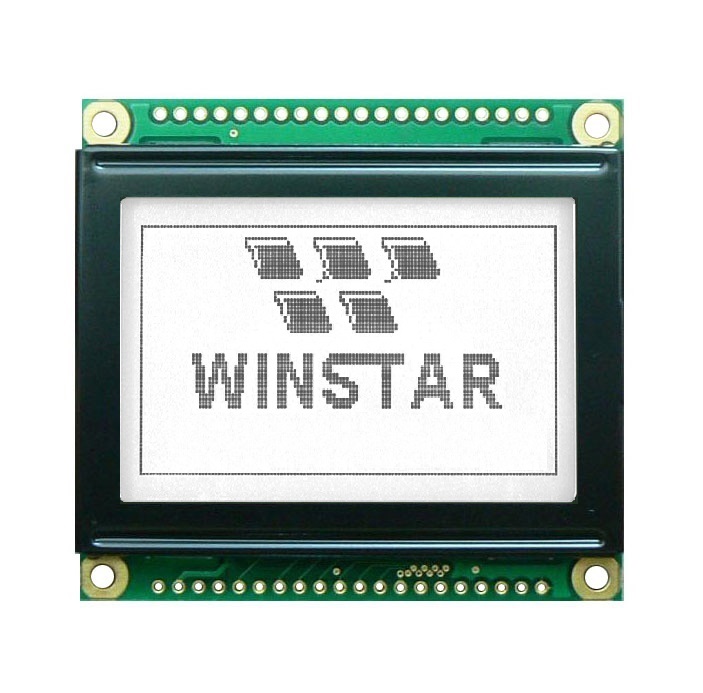

    WG12864E1-TFK-V#N

    Graphic LCD 1.9" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 12 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG12864E1-TFK-V#N

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €18.40
    €16.60
    €15.60
    €15.20

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €18.40 excl tax
    i h

    DESCRIPTION



    WG12864E1 is a monochrome LCD module 128x64 dot matrix graphic display.  WG12864E1 model is built in with NT7107, NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864E1 LCD display is 5V power supply.  WG12864E1 type is having 4 icons on LCD; This module use LED backlight, , if you would like to use LED backlight also without 4 icons on LCD; please choose WG12864EP2.  The outline of WG12864EP2 is 55x60 mm; it's larger than WG12864E1 (55x50mm).

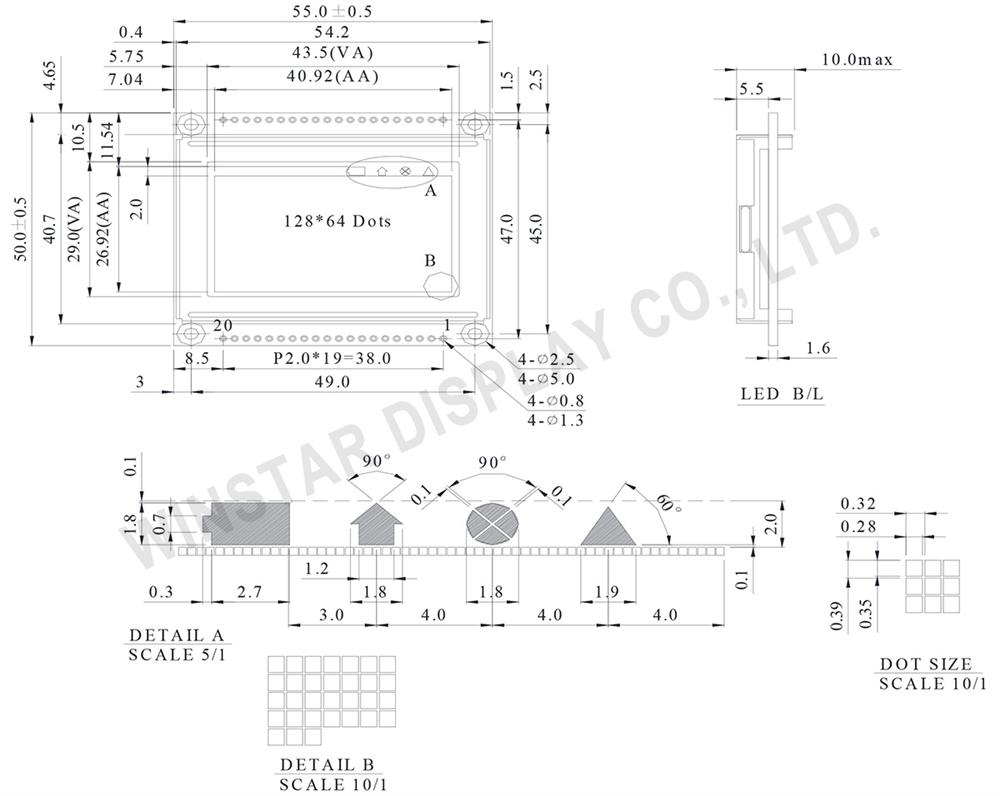

    DRAWING

    Graphic Module 128x64 - WG12864E1



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolLevelDescription
    1 Vss 0V Ground
    2 Vdd 5.0V Supply voltage for logic
    3 VO (Variable) Operating voltage for LCD
    4 D/I H/L H: Data , L: Instruction
    5 R/ W H/L H: Read(MPU←Module) , L :Write(MPU→Module)
    6 E H Enable signal
    7 DB0 H/L Data bus line
    8 DB1 H/L Data bus line
    9 DB2 H/L Data bus line
    10 DB3 H/L Data bus line
    11 DB4 H/L Data bus line
    12 DB5 H/L Data bus line
    13 DB6 H/L Data bus line
    14 DB7 H/L Data bus line
    15 CS1 H Chip Enable (Select Column 1 ~ Column 64)
    16 CS2 H Chip Enable (Select Column 65 ~ Column 128)
    17 /RET L Reset signal
    18 VEE   Negative Voltage output
    19 A - Power supply for B/L(+)
    20 K - Power supply for B/L(-)



    Mechanical Data

    ItemDimensionUnit
    Number of dots 128 × 64 -
    Module dimension 55.0 × 50.0 × 10.0(MAX) mm
    View area 43.5 × 29.0 mm
    Active area 40.92 × 26.92 mm
    Dot size 0.28 × 0.35 mm
    Dot pitch 0.32× 0.39 mm
    Duty 1/64
    Backlight Type LED
    IC NT7107, NT7108



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃
    Supply Voltage For Logic VDD-VSS -0.3 - 7.0 V
    Driver Supply Voltage VLCD VEE-0.3 - VDD+0.3 V



    Electrical Characteristics

    ItemSymbolConditionMin.Typ.Max.Unit
    Supply Voltage For Logic VDD-VSS - 4.5 5.0 5.5 V
    Supply Voltage For LCD VDD-VO Ta=-20℃
    Ta=25℃
    Ta=70℃
    -
    8.4
    7.0
    -
    8.6
    -
    9.8
    8.8
    -
    V
    V
    V
    Input High Volt. VIH - 0.7 VDD - VDD V
    Input Low Volt. VIL - 0 - 0.8 V
    Output High Volt. VOH - 2.4 - - V
    Output Low Volt. VOL - - - 0.4 V
    Supply Current IDD VDD=5.0V 1.0 1.2 1.5 mA


    Products specifications
    Size 1.9"
    Resolution 128x64
    Active Area (mm) 40.92x26.92
    Dot Size 0.28x0.35
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 5V
    Display Interface 6800
    Display IC NT7107T+NT7108T
    Constructive Structure COB
    View Angle 12H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
