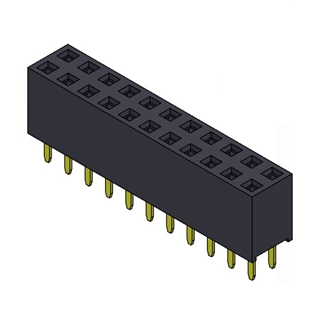

CSHA221-1102A001R1AC-Q5

Female Header - Straight Contact, Dual Row, 11 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6,50mm)

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC





Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

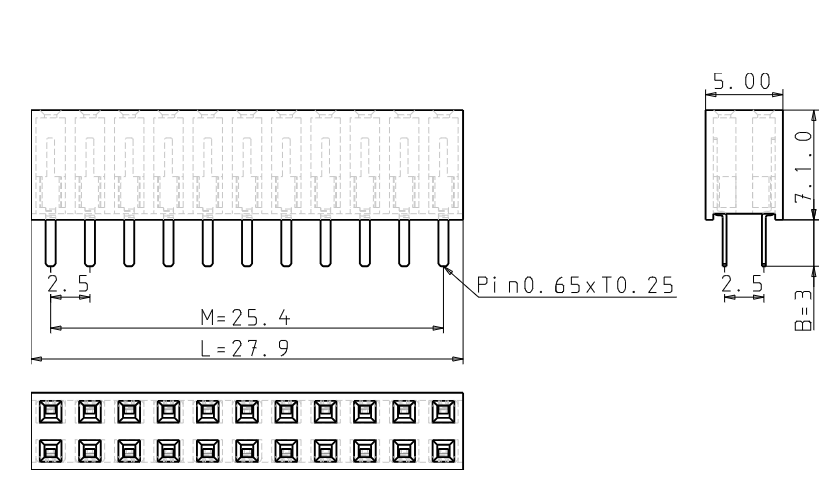

Dimensions



SKU: CSHA221-1102A001R1AC-Q5
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.81
€0.69
€0.66
€0.60
€0.55
€0.46

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.81 excl tax

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC





Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0



Dimensions



Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 2*11
Pin Pitch 2.54mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 2*11
Pin Pitch 2.54mm
Contact Direction DIP
