WG12864AB-TMI-V#N

Picture of WG12864AB-TMI-V#N Picture of WG12864AB-TMI-V#N
Graphic LCD 2.9" 128x64, B/L white, STN blue neg, Transmissive, COB, 3V, Interface 6800, 6 O'clock, VNEG

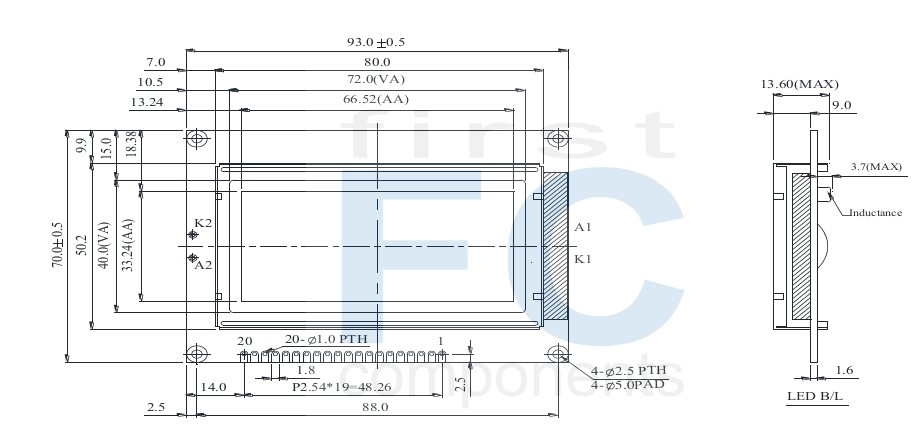

DRAWING



SKU: WG12864AB-TMI-V#N
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.30
€13.40
€12.90
€12.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€18.30 excl tax



DRAWING



Date Notice Link/Description
2023/04/06 PCN Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 128x64
Active Area (mm) 66.52x33.24
Dot Size 0.48x0.48
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
