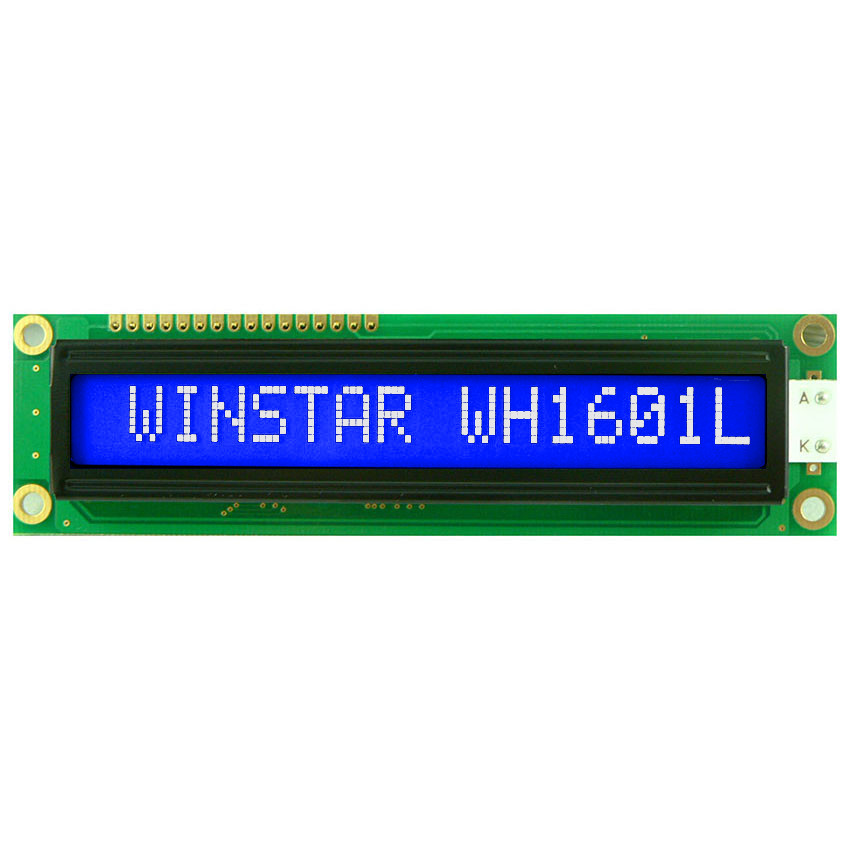

WH1601L-TMI-ET#020

Character LCD 3.8" 16x1, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock, Reverse A/K

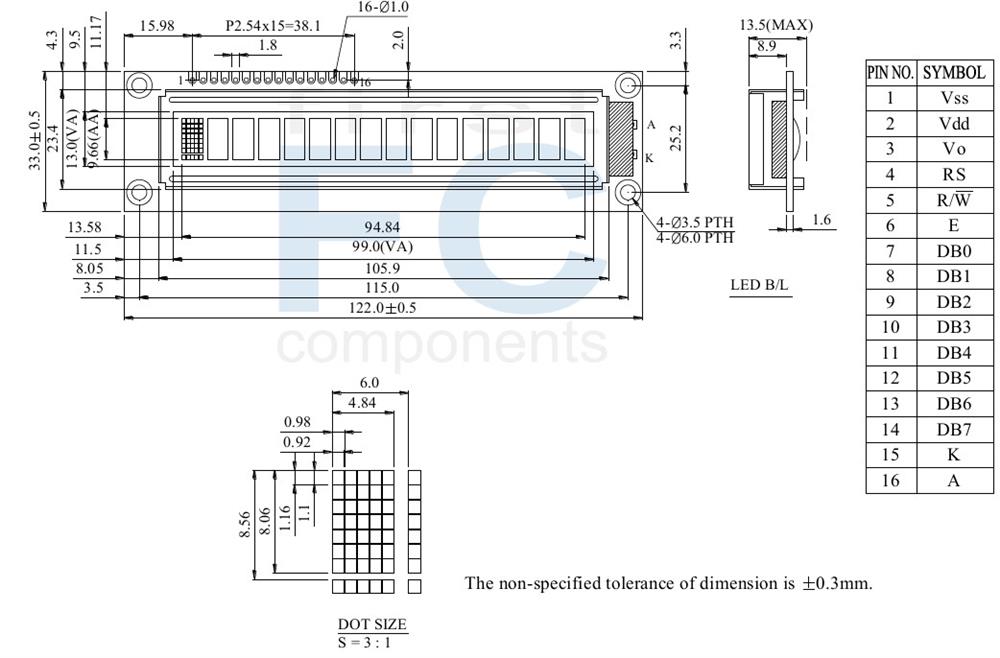

DRAWING

SKU: WH1601L-TMI-ET#020
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.30
€6.90
€6.60
€6.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.30 excl tax



DRAWING

Products specifications
Brand Winstar
Size 3.8"
Resolution 16x1
Active Area (mm) 94.84x9.66
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.8"
Resolution 16x1
Active Area (mm) 94.84x9.66
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
