WFN0570DA2#0PW1-FC

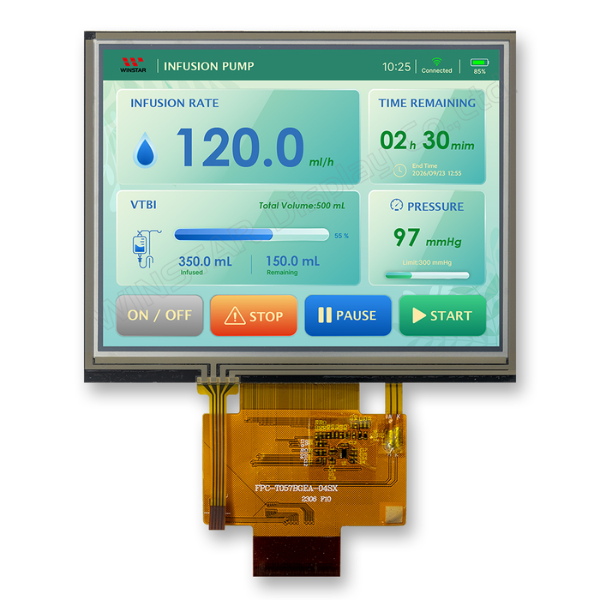

Picture of WFN0570DA2#0PW1-FC Picture of WFN0570DA2#0PW1-FC
TFT 5.7" 640x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super Extended Temperature, Resistive touch panel

DESCRIPTION

WFN0570DA2#0PW1-FC is a 5.7-inch wide temperature IPS TFT LCD display with a resistive touch panel (RTP). It features a 640x480 resolution, a 4:3 aspect ratio, and a typical brightness of 400 cd/m². The display surface features an anti-glare treatment.

The IPS panel provides wide viewing angles of 89/89/89/89 degrees. The module measures 124.7 x 100.0 x 7.41 mm, with an active area of 115.2 x 86.4 mm.

WFN0570DA2#0PW1-FC is equipped with a JD9168S TFT driver IC or equivalent and supports an 18-bit RGB interface with SYNC+DE mode. The TFT operates from a typical 3.15V supply.

With an operating temperature range of -30°C to +80°C, this 5.7-inch TFT display is suitable for industrial HMI, control equipment, instrumentation, and other embedded applications requiring resistive touch input and wide temperature operation.



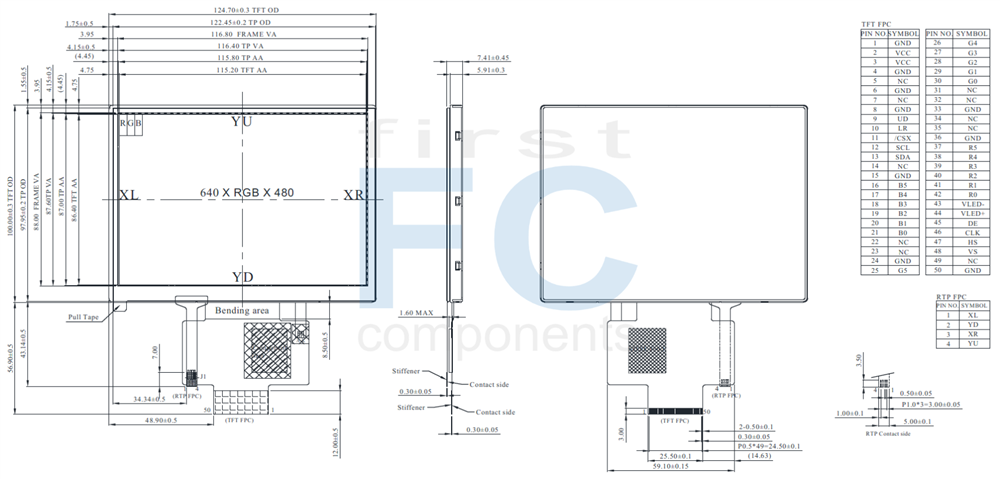

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 7.41 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
TFT Driver IC JD9168S or Equivalent
TFT Interface RGB 18 bits SYNC+DE mode
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolConditionMinTypMaxUnit
Supply Voltage VCC Ta=25⁰C 3.0 3.15 3.3 V
Input voltage H VIH VCC=3.0V 0.7VCC - VCC
L VIL VCC=3.0V 0 - 0.3VCC mW
Power supply Current ICC VCC=3.0V - 50 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current ILED - 80 - mA
LED voltage VLED+ 15.6 18.0 19.2 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

PinSymbolI/OFunction
1 GND P Ground.
2 VCC P Power supply for TFT
3 VCC P Power supply for TFT
4 GND P Ground.
5 NC - No connection
6 GND P Ground.
7 NC - No connection
8 GND P Ground.
9 UD I Up/down selection
10 LR I Left /right selection
11 /CSX I Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed.
If this pin is not used, please connect it to VCC.
12 SCL I Serial clock input in SPI interface .If not use, let it open or VCC or GND.
13 SDA I Serial data input / output pin in SPI interface operation. If not use, let it open.
14 NC - No connection
15 GND P Ground.
16 B5 I Blue Data bus
17 B4 I Blue Data bus
18 B3 I Blue Data bus
19 B2 I Blue Data bus
20 B1 I Blue Data bus
21 B0 I Blue Data bus
22 NC - No connection
23 NC - No connection
24 GND P Ground.
25 G5 I Green Data bit
26 G4 I Green Data bit
27 G3 I Green Data bit
28 G2 I Green Data bit
29 G1 I Green Data bit
30 G0 I Green Data bit
31 NC - No connection
32 NC - No connection
33 GND P Ground.
34 NC - No connection
35 NC - No connection
36 GND P Ground.
37 R5 I Red Data bit
38 R4 I Red Data bit
39 R3 I Red Data bit
40 R2 I Red Data bit
41 R1 I Red Data bit
42 R0 I Red Data bit
43 VLED- P Power supply for LED cathode
44 VLED+ P Power supply for LED anode
45 DE I Data enable input in RGB interface.
46 CLK I Pixel clock input in RGB interface.
47 HS I Horizontal sync input in RGB interface.
48 VS I Vertical sync input in RGB interface
49 NC - No connection
50 GND P Ground.
SKU: WFN0570DA2#0PW1-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€69.20
€62.30
€58.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€69.20 excl tax

DESCRIPTION

WFN0570DA2#0PW1-FC is a 5.7-inch wide temperature IPS TFT LCD display with a resistive touch panel (RTP). It features a 640x480 resolution, a 4:3 aspect ratio, and a typical brightness of 400 cd/m². The display surface features an anti-glare treatment.

The IPS panel provides wide viewing angles of 89/89/89/89 degrees. The module measures 124.7 x 100.0 x 7.41 mm, with an active area of 115.2 x 86.4 mm.

WFN0570DA2#0PW1-FC is equipped with a JD9168S TFT driver IC or equivalent and supports an 18-bit RGB interface with SYNC+DE mode. The TFT operates from a typical 3.15V supply.

With an operating temperature range of -30°C to +80°C, this 5.7-inch TFT display is suitable for industrial HMI, control equipment, instrumentation, and other embedded applications requiring resistive touch input and wide temperature operation.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 x RGB x 480(TFT) dots
Module dimension 124.7 x 100 x 7.41 mm
Active area 115.2 x 86.4 mm
Pixel pitch 0.18 x 0.18 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 89/89/89/89
TFT Driver IC JD9168S or Equivalent
TFT Interface RGB 18 bits SYNC+DE mode
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ParameterSymbolConditionMinTypMaxUnit
Supply Voltage VCC Ta=25⁰C 3.0 3.15 3.3 V
Input voltage H VIH VCC=3.0V 0.7VCC - VCC
L VIL VCC=3.0V 0 - 0.3VCC mW
Power supply Current ICC VCC=3.0V - 50 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current ILED - 80 - mA
LED voltage VLED+ 15.6 18.0 19.2 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

PinSymbolI/OFunction
1 GND P Ground.
2 VCC P Power supply for TFT
3 VCC P Power supply for TFT
4 GND P Ground.
5 NC - No connection
6 GND P Ground.
7 NC - No connection
8 GND P Ground.
9 UD I Up/down selection
10 LR I Left /right selection
11 /CSX I Chip select pin. 0: Chip can be accessed; 1: Chip cannot be accessed.
If this pin is not used, please connect it to VCC.
12 SCL I Serial clock input in SPI interface .If not use, let it open or VCC or GND.
13 SDA I Serial data input / output pin in SPI interface operation. If not use, let it open.
14 NC - No connection
15 GND P Ground.
16 B5 I Blue Data bus
17 B4 I Blue Data bus
18 B3 I Blue Data bus
19 B2 I Blue Data bus
20 B1 I Blue Data bus
21 B0 I Blue Data bus
22 NC - No connection
23 NC - No connection
24 GND P Ground.
25 G5 I Green Data bit
26 G4 I Green Data bit
27 G3 I Green Data bit
28 G2 I Green Data bit
29 G1 I Green Data bit
30 G0 I Green Data bit
31 NC - No connection
32 NC - No connection
33 GND P Ground.
34 NC - No connection
35 NC - No connection
36 GND P Ground.
37 R5 I Red Data bit
38 R4 I Red Data bit
39 R3 I Red Data bit
40 R2 I Red Data bit
41 R1 I Red Data bit
42 R0 I Red Data bit
43 VLED- P Power supply for LED cathode
44 VLED+ P Power supply for LED anode
45 DE I Data enable input in RGB interface.
46 CLK I Pixel clock input in RGB interface.
47 HS I Horizontal sync input in RGB interface.
48 VS I Vertical sync input in RGB interface
49 NC - No connection
50 GND P Ground.
Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
