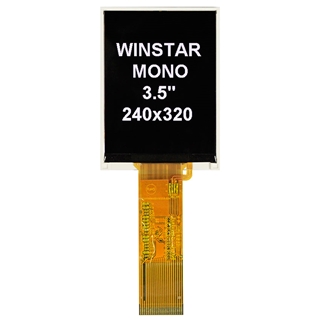

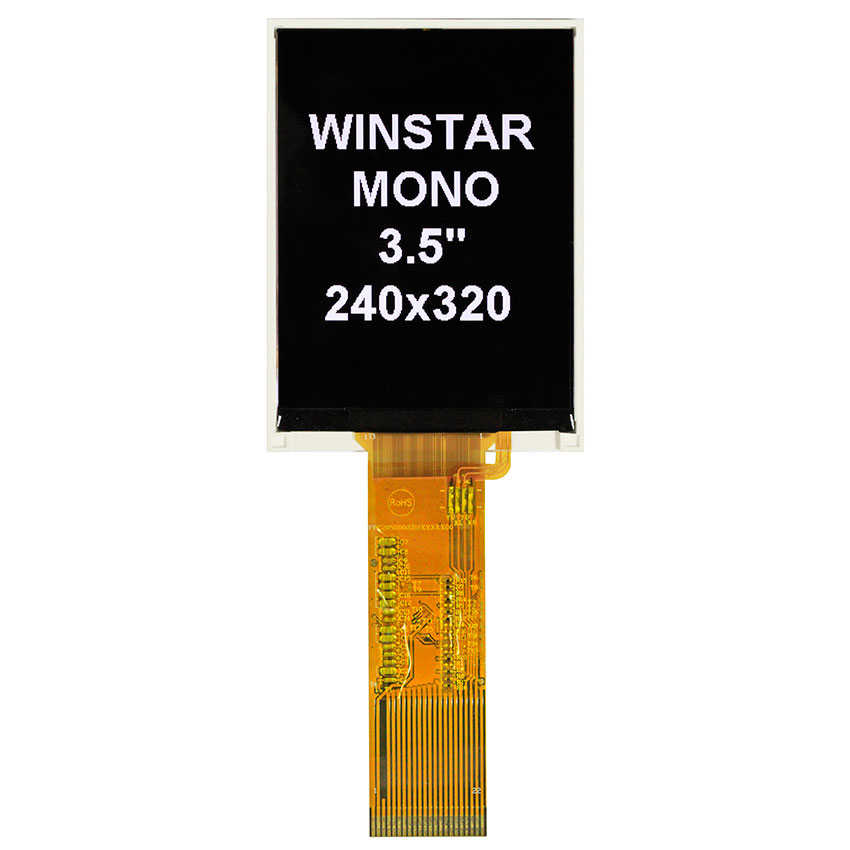

WF35-240320ND#0W0-FC

Picture of WF35-240320ND#0W0-FC Picture of WF35-240320ND#0W0-FC
TFT 3.5" 240x320, Monochrome, LCD + IC Controller, Interface MCU (Parallel) IC ST7511, 500cd/m², Super extended Temperature, No touch

DESCRIPTION

The Winstar WF35-240320ND#0W0-FC is a graphic TFT LCD display with a diagonal of 3.5 " and a resolution of 240 x 320 mono TFT Display. This is a monochrome model, but applied in the active matrix TFT; which allows for high contrast (900:1) and short response time.

Mono TFT models are featured with very high contrast while comparing with the monochrome STN displays. The DFSTN displays have the good black background with white character performance, but you might find the purplish background phenomenon.

The monochrome TFT display is a very good solution instead to replace the DFSTN. It has high contrast ratio, wide viewing angle, and built in controller with MCU interface; so the customer can use regular micro processor to drive it. Most importantly, the price for some modules is better than STN.

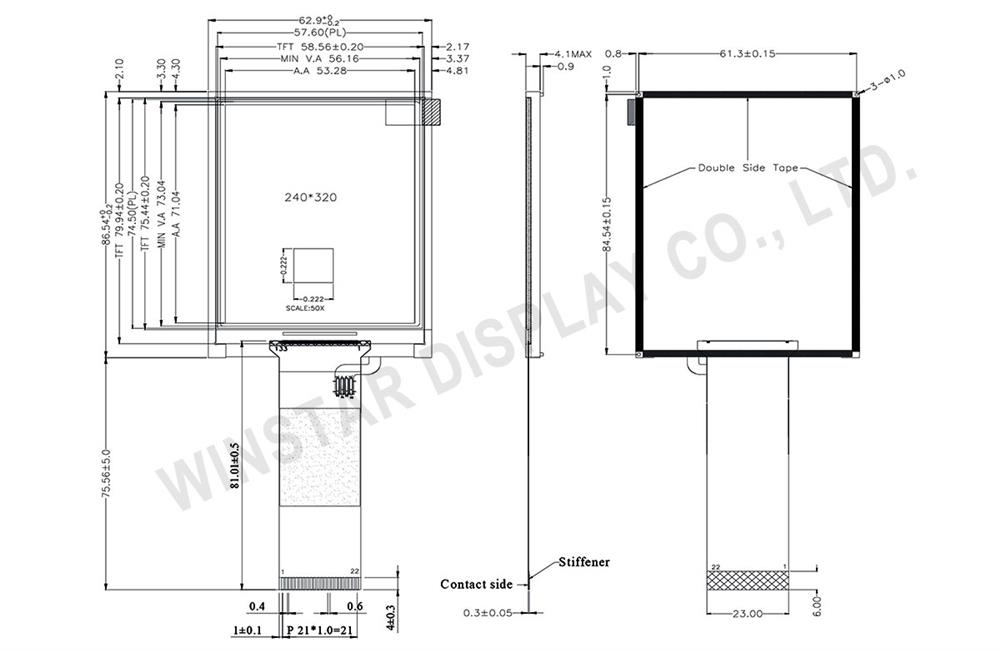

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 A0 Data/Command select
5 /WR(R/W) Write strobe signal
6 /RD(E) Read strobe signal
7~14 DB0~DB7 Data bus
15 /CS Chip select
16 /RESET(RSTB) Hardware reset
17 IF0 Mode select
18 IF1 Mode select
19 A LED+
20 K LED-
21~22 NC No connect



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 240 x 320 dots
Module dimension 62.9 × 86.54 × 4.1 mm
Active area 53.28 × 71.04 mm
Dot pitch 0.222 × 0.222 mm
LCD type TFT, Mono Transmissive
View Direction Wide View
Gray Scale 16 Gray scale (4BPP)/ 4 Gray scale (2BPP)/ 2 Gray scale (1BPP)
Driver IC ST7511
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.3 3.6 V
Supply Current For LCM IDD － － 13 - mA
Power Consumption － － － - 46.8 mW


SKU: WF35-240320ND#0W0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€51.30
€42.80
€36.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€51.30 excl tax

DESCRIPTION

The Winstar WF35-240320ND#0W0-FC is a graphic TFT LCD display with a diagonal of 3.5 " and a resolution of 240 x 320 mono TFT Display. This is a monochrome model, but applied in the active matrix TFT; which allows for high contrast (900:1) and short response time.

Mono TFT models are featured with very high contrast while comparing with the monochrome STN displays. The DFSTN displays have the good black background with white character performance, but you might find the purplish background phenomenon.

The monochrome TFT display is a very good solution instead to replace the DFSTN. It has high contrast ratio, wide viewing angle, and built in controller with MCU interface; so the customer can use regular micro processor to drive it. Most importantly, the price for some modules is better than STN.



DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 A0 Data/Command select
5 /WR(R/W) Write strobe signal
6 /RD(E) Read strobe signal
7~14 DB0~DB7 Data bus
15 /CS Chip select
16 /RESET(RSTB) Hardware reset
17 IF0 Mode select
18 IF1 Mode select
19 A LED+
20 K LED-
21~22 NC No connect



General Specifications

ItemDimensionUnit
Size 3.5 inch
Dot Matrix 240 x 320 dots
Module dimension 62.9 × 86.54 × 4.1 mm
Active area 53.28 × 71.04 mm
Dot pitch 0.222 × 0.222 mm
LCD type TFT, Mono Transmissive
View Direction Wide View
Gray Scale 16 Gray scale (4BPP)/ 4 Gray scale (2BPP)/ 2 Gray scale (1BPP)
Driver IC ST7511
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VDD － 3.0 3.3 3.6 V
Supply Current For LCM IDD － － 13 - mA
Power Consumption － － － - 46.8 mW


Products specifications
Brand Winstar
Size 3.5"
Resolution 240x320
Active Area (mm) 53.28x71.04
Color Monochrome
Display Interface MCU (Parallel)
Display IC ST7511
View Angle MVA
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 22
Pin Pitch 1mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 240x320
Active Area (mm) 53.28x71.04
Color Monochrome
Display Interface MCU (Parallel)
Display IC ST7511
View Angle MVA
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 22
Pin Pitch 1mm
Preferred - Not Preferred Not Preferred
