TFT 7" 800x480 LCD Panel, Interface LVDS, High Brightness 1000cd/m², Wide View Angle (IPS), Wide Temperature, Capacitive touch panel I2C Interface (GG, ILI2130)

Manufacturer: Winstar

SKU: WF70-800480D2L#0SPW3-FC

Accessory kit

FFC Cable
Display Connector
Touch-Panel Connector

PRICE BREAKS

Quantity

10+

Price

€76.00

€68.40

€64.30

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: In stock

€76.00 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

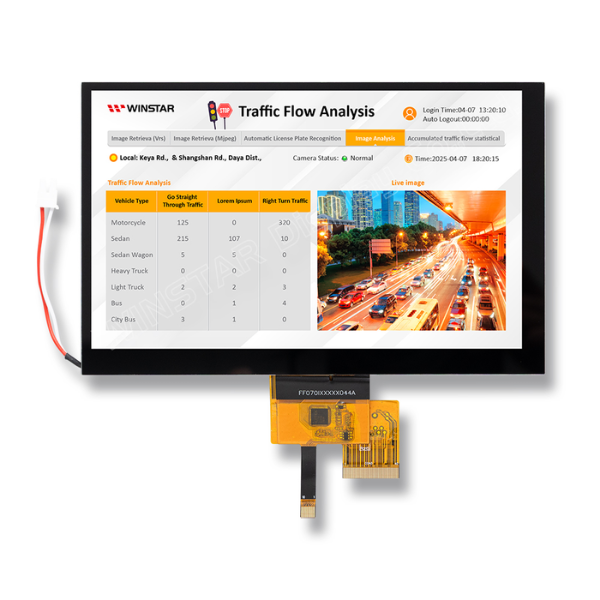

The WF70-800480D2L#0SPW3-FC is a 7-inch IPS TFT LCD display designed for high-performance applications. It features a resolution of 800x480 pixels with a 16:9 aspect ratio and is equipped with a projected capacitive touch panel (PCAP) for smooth and responsive touch interactions. With a typical brightness of 1000 cd/m² and a contrast ratio of 1500:1, this display is optimized for clear visibility in environments with high ambient light, making it an excellent choice for outdoor or bright indoor settings.

Thanks to its IPS technology, the display offers 85-degree viewing angles in all directions (left, right, up, and down), ensuring consistent clarity from nearly any viewing position. The WF70-800480D2L#0SPW3-FC model uses an LVDS interface, which provides improved signal integrity, lower power consumption, and enhanced noise resistance—making it ideal for high-performance systems.

The module integrates the RM53052 and RM57452 driver ICs for reliable operation, and supports the ILI2130 driver IC for the PCAP touch functionality, offering 5-point touch support via I2C interfaces.

Designed to perform reliably in temperatures ranging from -30℃ to +80℃, this module is built to withstand a wide range of environmental conditions, ensuring its durability in both extreme temperatures and varied storage conditions.

Applications:

This high-brightness, wide-temperature range, touch-enabled display is particularly suited for use in industrial control systems, smart home appliances, medical equipment, and monitoring systems. It is especially effective in applications that require reliable performance in challenging lighting and temperature conditions, where touch functionality and high visibility are essential.

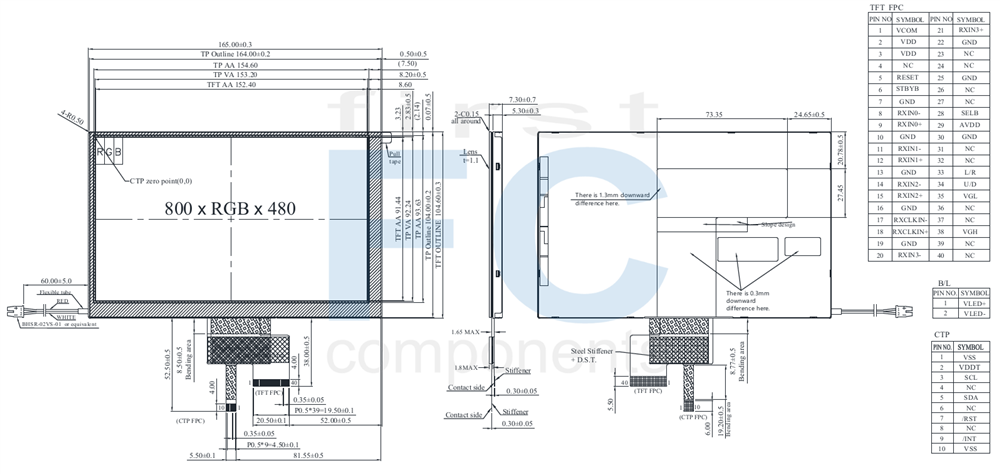

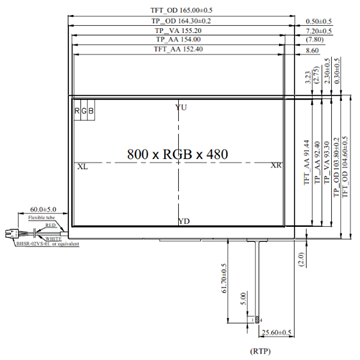

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480(TFT)	dots
Module dimension	165.0(W) × 104.6(H) × 7.3 (D)	mm
Active area	152.4 × 91.44	mm
Pixel pitch	0.1905 × 0.1905	mm
LCD type	TFT, Normally Black, Transmissive
View Angle	85/85/85/85
TFT IC	RM53052+RM57452
Aspect Ratio	16:9
Backlight Type	LED, Normally White
TFT Interface	LVDS
PCAP Driver IC	ILI2130
PCAP Interface	I2C
PCAP FW Version	0x07.0x00.0x00.0x00.0x70.0x44.0x0A.0x02
PCAP Resolution	16384*16384
Touch Panel	Projected Capacitive Touch Panel (PCAP)
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Operating conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	VDD	2.9	3.3	3.6	V
Analog Power	AVDD	-	13.0	-	V
TFT Gate ON Voltage	VGH	-	25.0	-	V
TFT Gate OFF Voltage	VGL	-	-5.9	-	V
TFT Common Voltage	Vcom	-	6.2	-	V
Power Current	IDD	-	19.3	29	mA
Analog Power Current	IAVDD	-	11.5	18	mA
TFT Gate ON Current	IVGH	-	0.27	1.0	mA
TFT Gate OFF Current	IVGL	-	0.27	1.0	mA
TFT Common Current	IVCOM	-	1.3	2	uA
Supply CTP	VDDT	3.1	3.3	3.5	V
Supply CTP	ICTP	－	65	100	mA

LED Driving Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED current	－	－	110	－	mA
LED voltage	VLED+	22.4	24.0	25.6	V
LED Life Time	－	50,000	－	－	Hr

Interface Pin Function

1. LCM PIN Definition

Pin No.	Symbol	Function
1	VCOM	Common Voltage
2	VDD	Digital circuit
3	VDD	Digital circuit
4	NC	No connection
5	RESET	Global reset pin
6	STBYB	Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7	GND	Ground
8	RXIN0-	Negative LVDS differential data input
9	RXIN0+	Positive LVDS differential data input
10	GND	Ground
11	RXIN1-	Negative LVDS differential data input
12	RXIN1+	Positive LVDS differential data input
13	GND	Ground
14	RXIN2-	Negative LVDS differential data input
15	RXIN2+	Positive LVDS differential data input
16	GND	Ground
17	RXCLKIN-	Negative LVDS differential clock input
18	RXCLKIN+	Positive LVDS differential clock input
19	GND	Ground
20	RXIN3-	Negative LVDS differential data input
21	RXIN3+	Positive LVDS differential data input
22	GND	Ground
23	NC	No connection
24	NC	No connection
25	GND	Ground
26	NC	No connection
27	NC	No connection
28	SELB	6bit/8bit mode select H:8bit / L:6bit
29	AVDD	Power for Analog Circuit
30	GND	Ground
31	NC	No connection
32	NC	No connection
33	L/R	Horizontal inversion
34	U/D	Vertical inversion
35	VGL	Negative power for TFT
36	NC	No connection
37	NC	No connection
38	VGH	Positive power for TFT
39	NC	No connection
40	NC	No connection

2. Backlight Driving Part

Pin No.	Symbol	Description
1	VLED+	Red, LED_ Anode
2	VLED-	White, LED_ Cathode

3. PCAP PIN Definition

Pin	Symbol	Function
1	VSS	Ground for analog circuit
2	VDDT	Power Supply : +3.3V
3	SCL	I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	VSS	Ground for analog circuit

Products specifications

Size	7"
Resolution	800x480
Active Area (mm)	152.40x91.44
Color	Full Color
Display Interface	LVDS
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Capacitive
O. Temperature (°C)	-30~80
Data Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2130
Preferred - Not Preferred	Preferred
