    WF70-800480D2D#0SP1-FC

    Be the first to review this product
    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), High Brightness 850cd/m², Wide View Angle (IPS), Resistive Touch Panel
    Manufacturer: Winstar
    SKU: WF70-800480D2D#0SP1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €61.90
    €55.70
    €52.40

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €61.90 excl tax
    i h

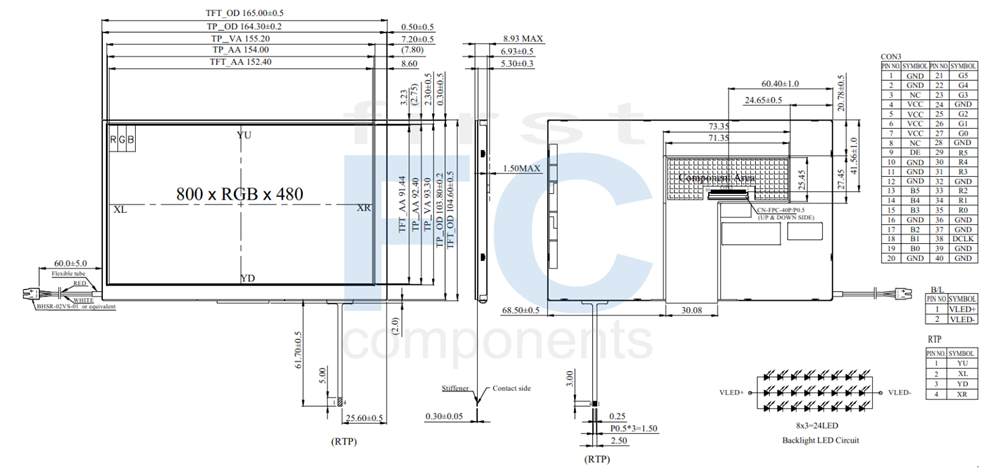

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    LCM PIN Definition

    Pin No.SymbolDescription
    1 GND Power Ground
    2 GND Power Ground
    3 NC Not Connect
    4 Vcc Power Supply for Digital Circuit
    5 Vcc Power Supply for Digital Circuit
    6 Vcc Power Supply for Digital Circuit
    7 Vcc Power Supply for Digital Circuit
    8 NC Not Connect
    9 DE Data Enable
    10 GND Power Ground
    11 GND Power Ground
    12 GND Power Ground
    13 B5 Blue data 5 (MSB)
    14 B4 Blue Data 4
    15 B3 Blue Data 3
    16 GND Power Ground
    17 B2 Blue Data 2
    18 B1 Blue Data 1
    19 B0 Blue Data 0 (LSB)
    20 GND Power Ground
    21 G5 Green Data 5 (MSB)
    22 G4 Green Data 4
    23 G3 Green Data 3
    24 GND Power Ground
    25 G2 Green Data 2
    26 G1 Green Data 1
    27 G0 Green Data 0 (LSB)
    28 GND Power Ground
    29 R5 Red Data 5 (MSB)
    30 R4 Red Data 4
    31 R3 Red Data 3
    32 GND Power Ground
    33 R2 Red Data 2
    34 R1 Red Data 1
    35 R0 Red Data 0 (LSB)
    36 GND Power Ground
    37 GND Power Ground
    38 DCLK Clock Signals; Latch Data at the Falling Edge (CLK)
    39 GND Power Ground
    40 GND Power Ground



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800xRGBx480 (TFT) dots
    Module dimension 165.0(W)x104.6(H)x8.93(MX)(D) mm
    Active area 152.4x91.44 mm
    Pixel pitch 0.1905x0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing Angle 85/85/85/85
    TFT IC RM53010+RM57410 or Equivalent
    Aspect Ratio 15:9
    Backlight Type LED, Normally White
    TFT Interface 18-bit RGB
    With/Without TP With RTP
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 － +70 ℃
    Storage Temperature TST -30 － +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VCC - 2.9 3.3 3.6 V
    Supply Current For LCM ICC Black Pattern - 85 130 mA

    LED driving conditions

    ParameterSymbolMinTypMaxUnit
    LED current - - 110 - mA
    LED voltage VLED+ 22.4 24.0 25.6 V
    LED Life Time - 50,000 - - Hr
    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
