WF70-800480D2L#0PW0-FC

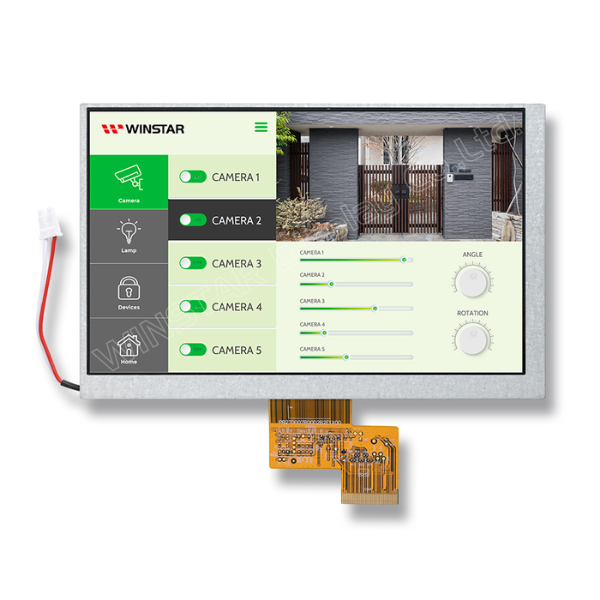

Picture of WF70-800480D2L#0PW0-FC Picture of WF70-800480D2L#0PW0-FC
TFT 7" 800x480 LCD Panel, Interface LVDS, 450cd/m², Wide View Angle (IPS), Wide Temperature, No touch

DESCRIPTION

The WF70-800480D2L#0PW0-FC is a 7-inch IPS TFT LCD featuring a resolution of 800x480 pixels and an aspect ratio of 16:9. The WF70-800480D2L#0PW0-FC TFT LCD module, with IPS glass for wide viewing angles, offers superior visual performance with viewing angles of 85 degrees in all directions (left/right/up/down). This module is designed with an extended temperature range, making it ideal for applications that require robust performance in both high and low-temperature environments. Designed to operate effectively in temperatures ranging from -30°C to +80°C, it can also withstand similar storage conditions. It features a typical brightness of 450 cd/m² and a contrast ratio of 1500:1, ensuring sharp image quality and excellent readability across various lighting conditions. The module integrates the RM53052 and RM57452 driver ICs.

The WF70-800480D2L#0PW0-FC model uses the LVDS interface, which offers enhanced signal integrity, lower power consumption, and improved noise resistance—ideal for high-performance applications. High-brightness and CTP options are also available for enhanced interactivity and visibility in bright environments.

This TFT module is suitable for a variety of applications, including industrial control systems, smart home appliances, medical equipment, and monitoring systems, especially those requiring reliable performance in extreme temperatures, thanks to its wide viewing angles and robust temperature tolerance.

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 165.0(W) × 104.6(H) × 5.3 (MAX)(D) mm
Active area 152.4 × 91.44 mm
Pixel pitch 0.1905 × 0.1905 mm
LCD type TFT, Normally Black, Transmissive
View Angle 85/85/85/85
TFT IC RM53052+RM57452 or Equivalent
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface LVDS
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 2.9 3.3 3.6 V
Analog Power AVDD - 13.0 - V
TFT Gate ON Voltage VGH - 25.0 - V
TFT Gate OFF Voltage VGL - -5.9 - V
TFT Common Voltage Vcom - 6.2 - V
Power Current IDD - 19.3 29 mA
Analog Power Current IAVDD - 11.5 18 mA
TFT Gate ON Current IVGH - 0.27 1.0 mA
TFT Gate OFF Current IVGL - 0.27 1.0 mA
TFT Common Current IVCOM - 1.3 2 uA


LED Driving Conditions

ParameterSymbolMin.Typ.Max.Unit
LED current － － 180 － mA
LED voltage VLED+ 8.4 9.0 9.6 V
LED Life Time － 50,000 － － Hr



Interface Pin Function

1. LCM PIN Definition

Pin No.SymbolFunction
1 VCOM Common Voltage
2 VDD Digital circuit
3 VDD Digital circuit
4 NC No connection
5 RESET Global reset pin
6 STBYB Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 SELB 6bit/8bit mode select
H:8bit / L:6bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 NC No connection
32 NC No connection
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Negative power for TFT
36 NC No connection
37 NC No connection
38 VGH Positive power for TFT
39 NC No connection
40 NC No connection


2. Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode
SKU: WF70-800480D2L#0PW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€47.50
€39.60
€32.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
