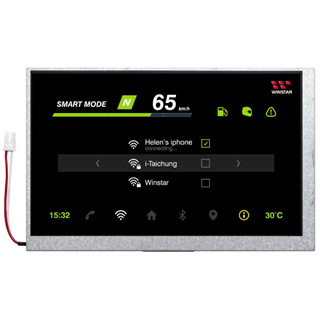

WF70-800480D2D#0PW0-FC

Name: WF70-800480D2D#0PW0-FC
SKU: WF70-800480D2D#0PW0-FC
Price: 50.00 EUR
Availability: InStock

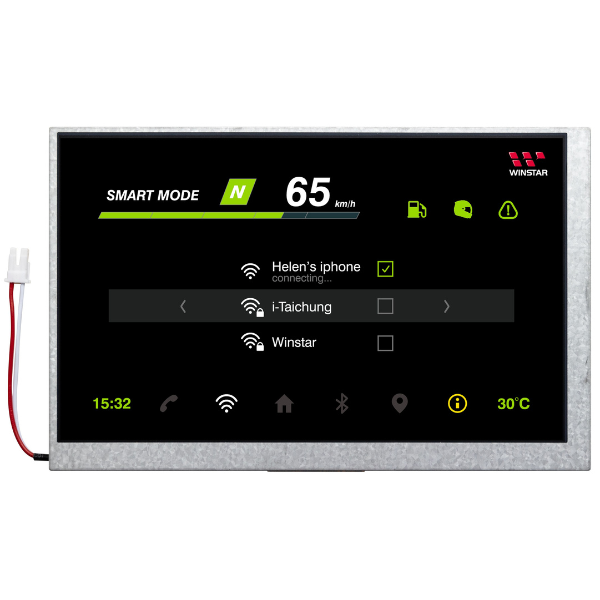

TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 450cd/m², Wide View Angle (IPS), Wide Temperature, No touch

Manufacturer: Winstar

SKU: WF70-800480D2D#0PW0-FC

PRICE BREAKS

Quantity

10+

Price

€50.00

€45.00

€42.30

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: In stock

€50.00 excl tax

Qty:

i h

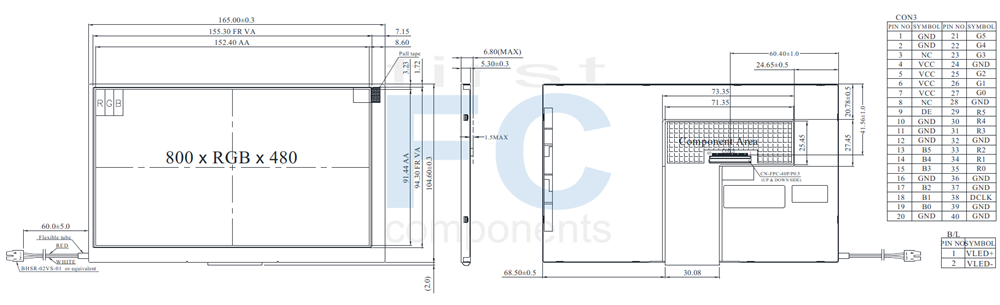

DRAWING

Pin	Symbol	Function
1	GND	Power Ground
2	GND	Power Ground
3	NC	Not Connect
4	VCC	Power Supply for Digital Circuit
5	VCC	Power Supply for Digital Circuit
6	VCC	Power Supply for Digital Circuit
7	VCC	Power Supply for Digital Circuit
8	NC	Not Connect
9	DE	Data Enable
10	GND	Power Ground
11	GND	Power Ground
12	GND	Power Ground
13	B5	Blue Data 5 (MSB)
14	B4	Blue Data 4
15	B3	Blue Data 3
16	GND	Power Ground
17	B2	Blue Data 2
18	B1	Blue Data 1
19	B0	Blue Data 0 (LSB)
20	GND	Power Ground
21	G5	Green Data 5 (MSB)
22	G4	Green Data 4
23	G3	Green Data 3
24	GND	Power Ground
25	G2	Green Data 2
26	G1	Green Data 1
27	G0	Green Data 0 (LSB)
28	GND	Power Ground
29	R5	Red Data 5 (MSB)
30	R4	Red Data 4
31	R3	Red Data 3
32	GND	Power Ground
33	R2	Red Data 2
34	R1	Red Data 1
35	R0	Red Data 0 (LSB)
36	GND	Power Ground
37	GND	Power Ground
38	DCLK	Clock Signals; Latch Data at the Falling Edge (CLK)
39	GND	Power Ground
40	GND	Power Ground

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	800 × RGB × 480 (TFT)	dots
Module dimension	165.0(W) × 104.6 (H) × 6.8 (MAX)(D)	mm
Active area	152.4 × 91.44	mm
Pixel pitch	0.1905 × 0.1905	mm
LCD type	TFT, Normally Black, Transmissive
View Angle	85/85/85/85
TFT IC	RM53010+RM57410 or Equivalent
Aspect Ratio	15:9
Backlight Type	LED, Normally White
TFT Interface	18-bit RGB
With/Without TP	Without TP
Surface	Anti-Glare

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

	Symbol	Condition	Min.	Typ.	Max.
Supply Voltage for LCM	VCC	-	2.9	3.3	3.6	V
Supply Current for LCM	ICC	Black Pattern	-	85	130	mA
