    WF70-1024600A8PL#ASP3-FC

    TFT 7" 1024x600 LCD Panel, Interface LVDS, Power board (40pin), High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, ILI2130 IC)
    Manufacturer: Winstar
    SKU: WF70-1024600A8PL#ASP3-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €78.20
    €70.40
    €66.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €78.20 excl tax
    i h

    DESCRIPTION

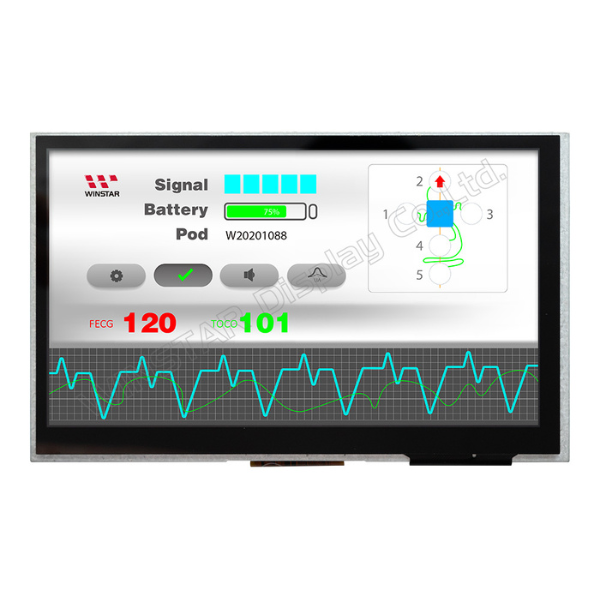

    The WF70-1024600A8PL#ASP3-FC is a 7-inch IPS high-brightness TFT-LCD module featuring a projected capacitive touchscreen, and a power board. The module measures 169.9 x 103.4 mm, with an active area size of 154.2144 x 85.92 mm and a resolution of 1024 x 600 pixels. Integrated with ST5021 and ST5651 ICs, it supports an LVDS interface. The WF70-1024600A8PL#ASP3-FC boasts an IPS panel, providing a wide viewing angle of Left: 85 / Right: 85 / Up: 85 / Down: 85 degrees, high brightness of 850 nits (typical value), a contrast ratio of 800:1, and a glare surface panel. The aspect ratio is 16:9.

    Equipped with a projected capacitive touch panel (PCAP) and built-in ILI2130 IC, supporting an I2C interface and 5-point touch, the WF70-1024600A8PL#ASP3-FC module can operate in temperatures ranging from -20℃ to +70℃, with storage temperatures from -30℃ to +80℃.

    This 7-inch high-brightness TFT display is an ideal choice for applications such as smart home appliances, medical equipment, industrial control devices, measuring instruments, and electronic piano sheet music displays.



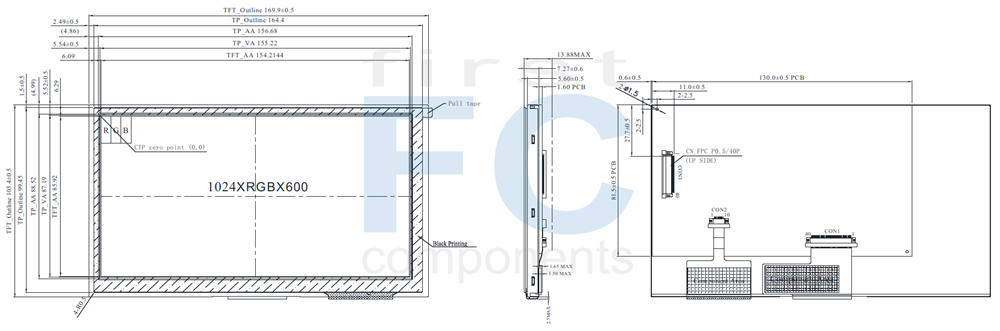

    DRAWING



    SPECIFICATIONS

    Interface

    LCM PIN Definition

    Pin No.SymbolFunction
    1 NC No connection
    2 VDD Power Supply:+3.3V for TFT
    3 VDD Power Supply:+3.3V for TFT
    4 SELB 6bit/8bit mode select
    H:6bit / L:8bit
    5 RESET Global reset pin
    6 STBYB Standby mode, Normally pulled high
    STBYB = “1”, normal operation
    STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
    7 GND Ground
    8 RXIN0- Negative LVDS differential data input
    9 RXIN0+ Positive LVDS differential data input
    10 GND Ground
    11 RXIN1- Negative LVDS differential data input
    12 RXIN1+ Positive LVDS differential data input
    13 GND Ground
    14 RXIN2- Negative LVDS differential data input
    15 RXIN2+ Positive LVDS differential data input
    16 GND Ground
    17 RXCLKIN- Negative LVDS differential clock input
    18 RXCLKIN+ Positive LVDS differential clock input
    19 GND Ground
    20 RXIN3- Negative LVDS differential data input
    21 RXIN3+ Positive LVDS differential data input
    22 GND Ground
    23 GND Ground
    24 GND Ground
    25 GND Ground
    26 NC No connection
    27 PWM_BL Backlight control signal
    28 L/R Horizontal inversion
    29 U/D Vertical inversion
    30 NC No connection
    31 VLED+ Power Supply:+12V for Backlight driving
    32 VLED+ Power Supply:+12V for Backlight driving
    33 VLED+ Power Supply:+12V for Backlight driving
    34 NC No connection
    35 CTP_SCL I2C clock input
    36 CTP_SDA I2C data input and output
    37 CTP_/RST External Reset, Low is active
    38 CTP_/INT External interrupt to the host
    39 NC No connection
    40 NC No connection



    General Specifications

    ItemDimensionUnit
    Size 7 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 169.9(W) × 103.4(H) × 13.88(D) mm
    Active area 154.2144 × 85.92 mm
    Pixel pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    TFT Interface LVDS
    Aspect Ratio 16:9
    TFT Driver IC ST5021 + ST5651 or equivalent
    Backlight Type LED, Normally White
    PCAP IC ILI2130 or Equivalent
    PCAP Interface I2C
    PCAP FW Version 0x07.0x00.0x00.0x00.0x65.0x90.0x00.0x01
    PCAP Resolution 16384*16384
    Touch Panel Projected Capacitive Touch Screen
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage For VLED+ VLED 11.5 12 12.5 V
    Supply Current For VLED+ ILED - 470 710 mA
    Supply Voltage For LCM VDD 3.0 3.3 3.6 V
    Supply Current For LCM IDD - 120 180 mA
    Supply Voltage For CTP VDDT 3.15 3.3 3.45 V
    Supply Current For CTP IDDT - 70 100 mA
    Products specifications
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
