TFT 7" 1024x600 LCD Panel, Interface LVDS, 600cd/m², No touch

Manufacturer: Winstar

SKU: WF70-1024600A7L#000-FC

Accessory kit

Display Connector

PRICE BREAKS

Quantity

10+

Price

€39.90

€35.90

€33.70

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: In stock

€39.90 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

New panel version // Previuos out-sourch versions P/Ns WF70-1024600UL#000-FC & WF70-1024600BL#000-FC in 'Related Product' section on the bottom page

Color TFT LCD with 1024x600 resolution, diagonal size 7 inch. This TFT LCD model is built in with EK79001HE and EK73215BCGA driver ICs. It supports LVDS interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional, as well as high brightness option. It is an alternative item to replace WF70BTIAHLNN0 which adopted CPT (Chunghwa Picture Tubes Ltd) and of life TFT panel: outline dimension, backlight, FPC pinout, interface, pin assignment, electrical characteristics and optical characteristics are all the same.

The power voltage (DVDD) is from 3.0V to 3.6V, typical value 3.3V. It is featured with Anti-Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, brightness 500 nits ~ 600 nits. Operating temperatures from -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 ℃.

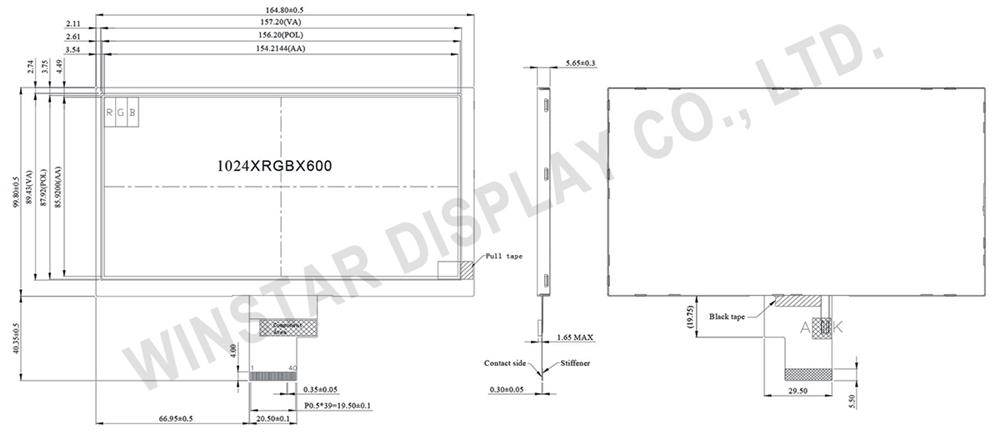

DRAWING

SPECIFICATIONS

Interface

Pin No.	Symbol	I/O	Function
1	VCOM	P	Common Voltage
2	VDD	P	Digital circuit
3	VDD	P	Digital circuit
4	NC	---	No connection
5	Reset	I	Global reset pin
6	STBYB	I	Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7	GND	P	Ground
8	RXIN0-	I	Negative LVDS differential data input
9	RXIN0+	I	Positive LVDS differential data input
10	GND	P	Ground
11	RXIN1-	I	Negative LVDS differential data input
12	RXIN1+	I	Positive LVDS differential data input
13	GND	P	Ground
14	RXIN2-	I	Negative LVDS differential data input
15	RXIN2+	I	Positive LVDS differential data input
16	GND	P	Ground
17	RXCLKIN-	I	Negative LVDS differential clock input
18	RXCLKIN+	I	Positive LVDS differential clock input
19	GND	P	Ground
20	RXIN3-	I	Negative LVDS differential data input
21	RXIN3+	I	Positive LVDS differential data input
22	GND	P	Ground
23	NC	---	No connection
24	NC	---	No connection
25	GND	P	Ground
26	NC	---	No connection
27	DIMO	O	Backlight CABC controller signal output
28	SELB	I	6bit/8bit mode select H:6bit / L:8bit
29	AVDD	P	Power for Analog Circuit
30	GND	P	Ground
31	LED-	P	LED Cathode
32	LED-	P	LED Cathode
33	L/R	I	Horizontal inversion
34	U/D	I	Vertical inversion
35	VGL	P	Negative power for TFT
36	GND	P	Ground
37	GND	P	Ground
38	VGH	P	Positive power for TFT
39	LED+	P	LED Anode
40	LED+	P	LED Anode

I:input , O:output, P:power

General Specifications

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	1024 x RGBx600(TFT)	dots
Module dimension	164.8(W) x 99.8(H) x 5.65(D)	mm
Active area	154.2144 x 85.92	mm
Dot pitch	0.1506 x 0.1432	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Driver IC	EK79001HE + EK73215BCGA
Backlight Type	LED, Normally White
Touch Panel	Without Touch Panel
Interface	LVDS
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Typical Operation Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power voltage	DVDD	3.0	3.3	3.6	V
	AVDD	9.4	9.6	9.8	V
	VGH	17	18	19	V
	VGL	-6.6	-6.0	-5.4	V
Input signal voltage	VCOM	3.1	3.3	3.6	V
Input logic high voltage	VIH	0.7 DVDD	-	DVDD	V
Input logic low voltage	VIL	0	-	0.3 DVDD	V

Products specifications

Size	7"
Resolution	1024x600
Active Area (mm)	154.21x85.92
Color	Full Color
Display Interface	LVDS
Display IC	No
View Angle	TN
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-20~70
Data Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
