    TST0007R0B4111XXXX00

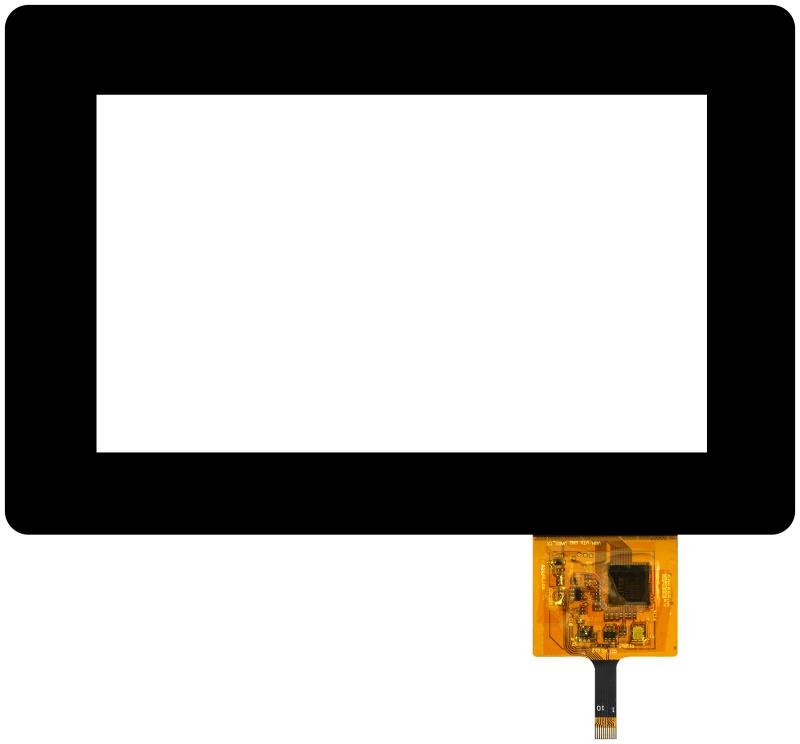

    Capacitive (GG) Touch panel 7", O.D. 202.00x 135.50mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for A2/A7/A8/B7/G/Q/P/Y/M families)
    Manufacturer: Winstar
    SKU: TST0007R0B4111XXXX00

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €69.30
    €62.40
    €58.60

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €69.30 excl tax
    i h

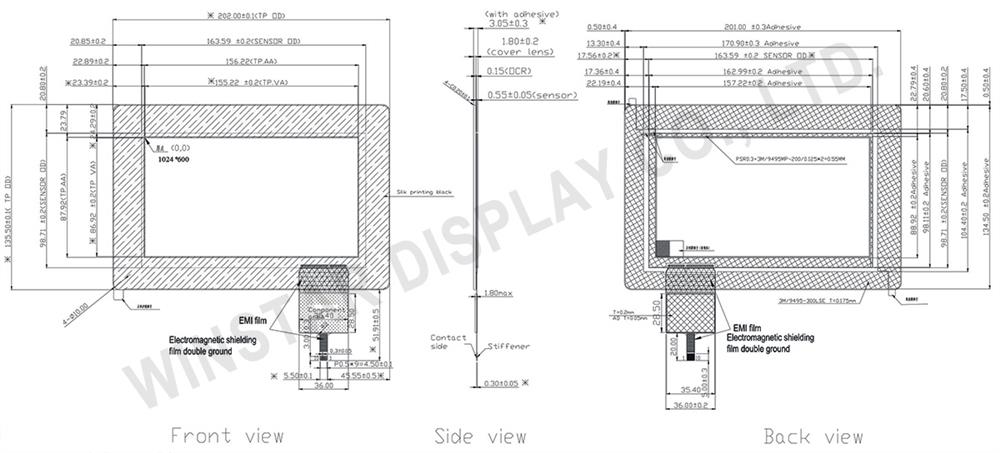

    DRAWING

    TST0007R0B4111XXXX00 - Winstar



    SPECIFICATIONS

    General Specification

    Feature
    NO.ItemSpecifications
    1 Type Projected Capacitive
    2 Input Mode Finger
    3 Connector COF

    Mechanical Description
    NO.ItemSpecificationsUnit
    1 Touch Panel Size 7.0(Diagonal) inch
    2 Structure G+G
    3 View Area 155.22(H)x86.92(V) mm
    4 Outline Dimension 202.00(H)x135.50(V)x2.50(D) mm



    Interface Pin Function

    Pin No.SymbolI/ODescription
    1 USB/GND --- System ground
    2 USB/VDD5V --- Power supply
    3 D+ I/O Data +
    4 D- I/O Data -
    5 GND --- System ground
    6 SDA I/O I2C clock signal
    7 SCL I/O I2C clock signal
    8 RST --- External reset signal, active low
    9 INT --- Interrupt signal, active low, asserted to request Host start a new transcation
    10 VDD --- Power supply



    IC Specification

    NO.ItemSpecifications
    1 Driver IC ILI2511
    2 Detect Points 10 touch
    3 Interface I2C+USB
    4 Power Supply 5.0V
    Products specifications
    Size 7"
    Active Area (mm) 156.22x87.92
    Display Interface USB/I2C
    Constructive Structure GG + Frame
    Data Connection FPC for ZIF Connector
    Pin Nr. 10
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
