TST0007R0G4111XXXX07

Name: TST0007R0G4111XXXX07
SKU: TST0007R0G4111XXXX07
Price: 33.40 EUR
Availability: InStock

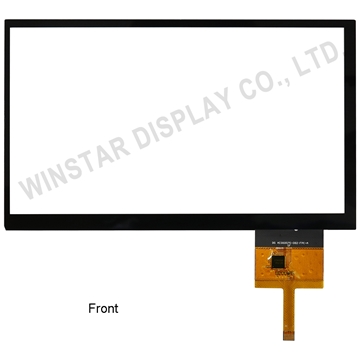

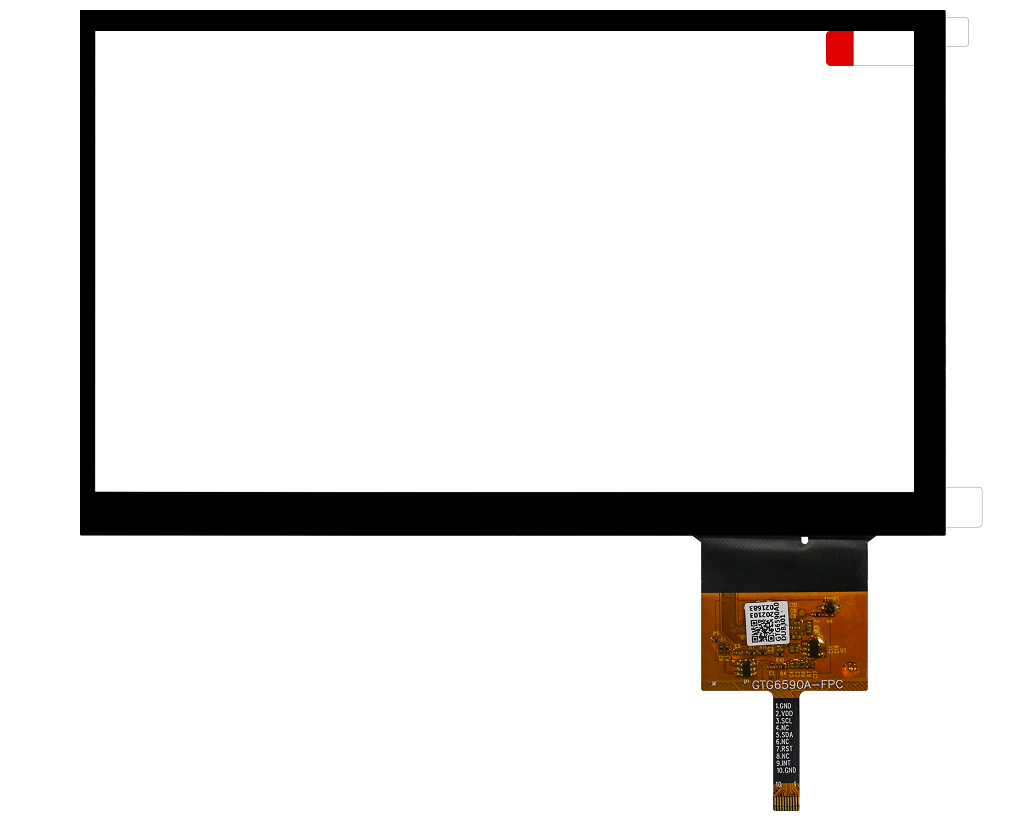

Capacitive (GG) Touch panel 7", O.D. 164.40x99.45mm, I2C interface (ILI2130 IC), Glass-Glass structure, FPC per ZIF Connector (suitable for WF70G/A2/A7/A8/B7/M/P/Q/Y families), Cover glass thickness 1.8mm

Manufacturer: Winstar

SKU: TST0007R0G4111XXXX07

Accessory kit

Touch-Panel Connector

PRICE BREAKS

Quantity

10+

Price

€33.40

€30.10

€28.30

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: In stock

€33.40 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

Cover Lens Thickness Options for Winstar 7" TFT Displays

For industrial applications, thick cover lenses provide extra protection for TFT Displays. Putting hardened cover lens on the TFT module can protect it from mechanical damages. Winstar provides three kinds of thickness options for our 7 inch TFT-LCD modules which are including 0.7mm, 1.8mm and 3.0mm in thickness.

Below is a comparison chart for reference, the higher IK code which means for better impact protection. The IK Code, or impact rating, is an international numeric classification for the degrees of protection provided by enclosures for electrical equipment against external mechanical impacts. We recommend customers can choose proper thickness of cover lens for your applications. Winstar also can offer custom solutions for customers needing thick cover lens. Please note, the thickness of cover lens will affect the touch sensitivity; the thinner cover lens usually the touch sensitivity will be better than thicker ones.

Remark: Below information is reference only, welcome to contact our engineering team for different sizes of cover lens for applications.

TP Part No.	Winstar 7"cover lens	Impact protection	Detect points	Waterproof	Touch sensitivity
TP Part No.	thickness	IK Code	Detect points	Waterproof	Touch sensitivity
TST0007R0G4111XXXX06	0.7 mm (standard)	IK03	max 10	Good	Great
TST0007R0G4111XXXX07	1.8 mm	IK06	max 10	Normal	Good
TST0007R0G4111XXXX08	3.0 mm	IK07	max 10	Normal	Normal

Support TFT series: WF70G, WF70A2, WF70A7, WF70A8, WF70M, WF70P, WF70Q, WF70Y

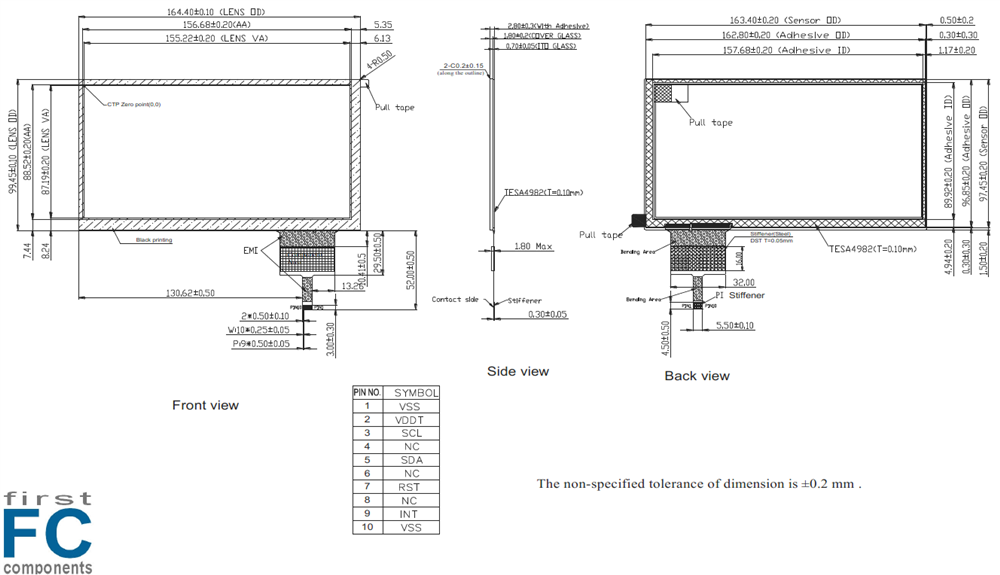

DRAWING

SPECIFICATIONS

Construction:

Construction	Materials	Comment
COVER LENS	GLASS	Thickness：0.7mm
LOCA	Adhesive	Thickness：0.2mm
ITO Glass	ITO glass	Thickness：0.7mm

Mechanical characteristics:

Item	Description	Unit
Outline dimension	164.40±0.1 × 99.45±0.1	mm
View Area	155.22±0.2 × 87.19±0.2	mm
Active Area	156.68 × 88.52	mm
Thickness	1.7±0.15 (with AD)	mm
Input Method	Finger
Hardness Of Surface	Hard Surface : ≥7H
Accuracy	+/-1mm@10mm	mm
Support Operation	Finger	5 Finger
Channel	15 × 27
Interface	I2C
Supported Operating Systems	Android2.0-4.2Windows
IC	ILI2130s

Interface Pin Function

PIN No	Symbol	Function
1	GND	Ground for analog circuit
2	VDDT	Power Supply
3	SCL	I2C clock input
4	NC	No connect
5	SDA	I2C data input and output
6	NC	No connect
7	/RST	External Reset, Low is active
8	NC	No connect
9	/INT	External interrupt to the host
10	GND	Ground for analog circuit

Products specifications

Size	7"
Active Area (mm)	156.68x88.52
Display Interface	I2C
Constructive Structure	GG
Data Connection	FPC for ZIF Connector
Pin Nr.	10
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2130
Preferred - Not Preferred	Preferred
