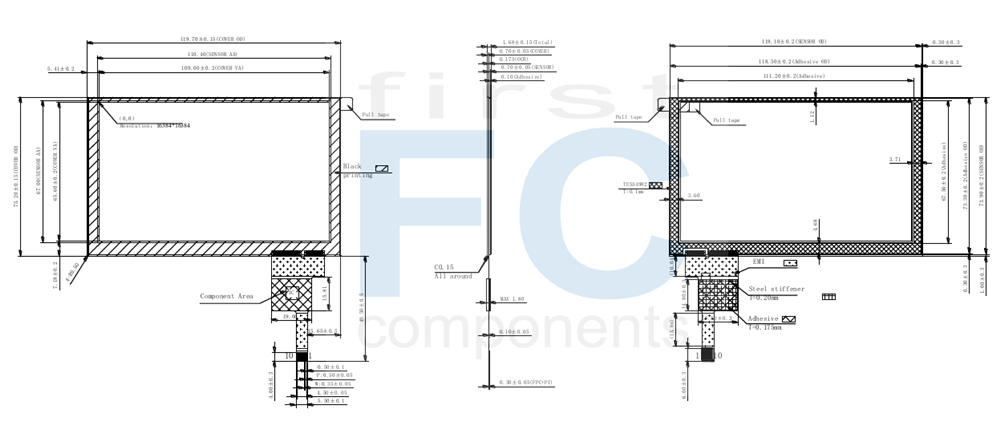

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight (Cathode)

2

VLED+

Power for LED backlight (Anode)

3

GND

Power Ground

4

VDD

Power voltage

5

R0

Red data (LSB)

6

R1

Red data

7

R2

Red data

8

R3

Red data

9

R4

Red data

10

R5

Red data

11

R6

Red data

12

R7

Red data(MSB)

13

G0

Green data(LSB)

14

G1

Green data

15

G2

Green data

16

G3

Green data

17

G4

Green data

18

G5

Green data

19

G6

Green data

20

G7

Green data(MSB)

21

B0

Blue data(LSB)

22

B1

Blue data

23

B2

Blue data

24

B3

Blue data

25

B4

Blue data

26

B5

Blue data

27

B6

Blue data

28

B7

Blue data(MSB)

29

GND

Power Ground

30

CLK

Sample clock

31

DISP

Display on/off

32

NC/HSync

No connection /Horizontal sync input

(Note)

33

NC/VSync

No connection /Vertical sync input

(Note)

34

DE

Data input enable

35

NC

No connection

36

GND

Power Ground

37

NC

No connection

38

NC

No connection

39

NC

No connection

40

NC

No connection

Pin

Symbol

Function

Remark

1

VSS

Ground for analog circuit

2

VDDT

Power Supply : +3.3V

3

SCL

I2C clock inputI2C clock input

4

NC

No connect

5

SDA

I2C data input and output

6

NC

No connect

7

/RST

External Reset, Low is active

8

NC

No connect

9

/INT

External interrupt to the host

10

VSS

Ground for analog circuit
