WF50-800480FD#0SP1-FC

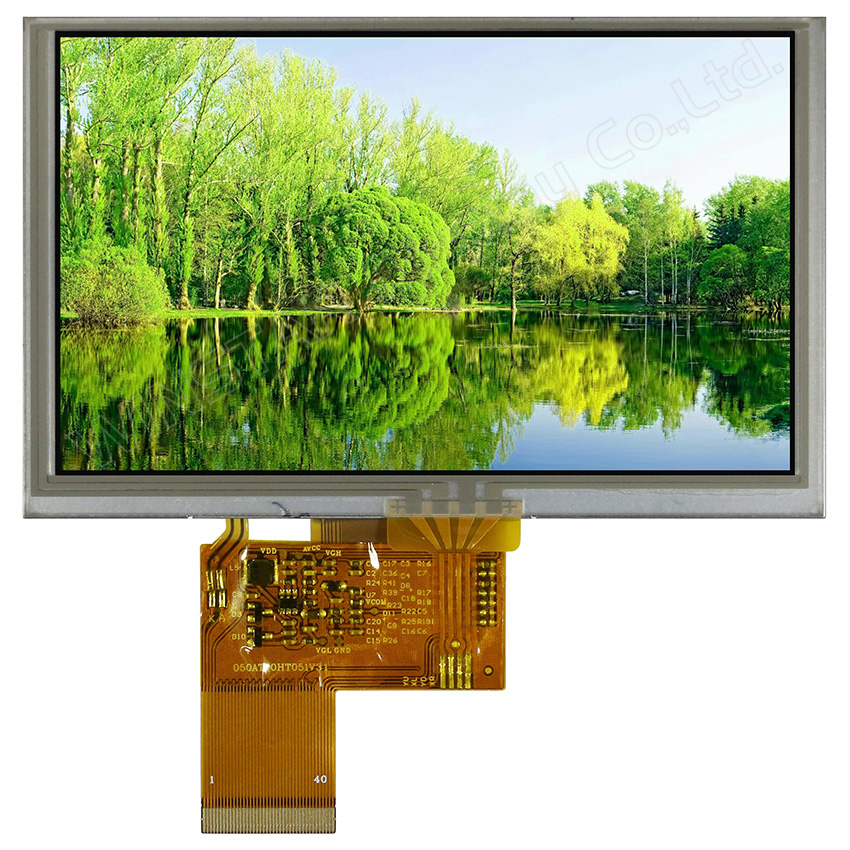

TFT 5" 800x480 LCD Panel, Interface RGB (DE mode), High Brightness 750cd/m², Wide view angle (IPS), Resistive touch panel

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels.  Resistive touch panel on board. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). High brightness version 750 nits (typical value). This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

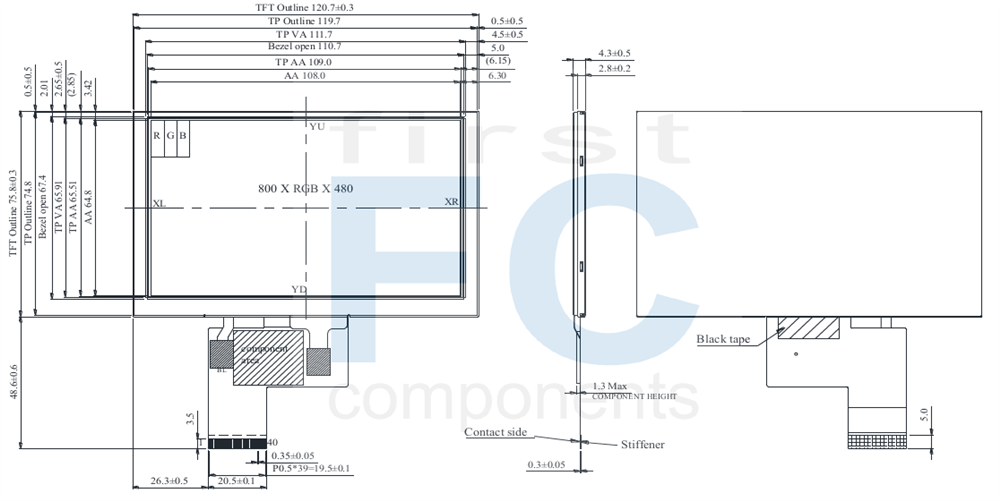

DRAWING

SPECIFICATIONS

Interface
LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin

Symbol

Function

1

VLED-

Power for LED backlight (Cathode)

2

VLED+

Power for LED backlight (Anode)

3

GND

Power Ground

4

VDD

Power voltage

5

R0

Red data (LSB)

6

R1

Red data

7

R2

Red data

8

R3

Red data

9

R4

Red data

10

R5

Red data

11

R6

Red data

12

R7

Red data(MSB)

13

G0

Green data(LSB)

14

G1

Green data

15

G2

Green data

16

G3

Green data

17

G4

Green data

18

G5

Green data

19

G6

Green data

20

G7

Green data(MSB)

21

B0

Blue data(LSB)

22

B1

Blue data

23

B2

Blue data

24

B3

Blue data

25

B4

Blue data

26

B5

Blue data

27

B6

Blue data

28

B7

Blue data(MSB)

29

GND

Power Ground

30

CLK

Sample clock

31

DISP

Display on/off

32

NC

No connection

33

NC

No connection

34

DE

Data input enable

35

NC

No connection

36

GND

Power Ground

37

XR

Right electrode

38

YD

Bottom electrode

39

XL

Left electrode

40

YU

Top electrode



SKU: WF50-800480FD#0SP1-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€36.50
€29.20
€24.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€36.50 excl tax

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels.  Resistive touch panel on board. This module is built in with ST7262 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). High brightness version 750 nits (typical value). This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage is from 3.0 to 3.6V, aspect ratio 16:9, normally black, transmissive LCD type, Anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.


DRAWING

SPECIFICATIONS

Interface
LCM PIN Definition

FPC Connector is used for the module electronics interface.

Pin

Symbol

Function

1

VLED-

Power for LED backlight (Cathode)

2

VLED+

Power for LED backlight (Anode)

3

GND

Power Ground

4

VDD

Power voltage

5

R0

Red data (LSB)

6

R1

Red data

7

R2

Red data

8

R3

Red data

9

R4

Red data

10

R5

Red data

11

R6

Red data

12

R7

Red data(MSB)

13

G0

Green data(LSB)

14

G1

Green data

15

G2

Green data

16

G3

Green data

17

G4

Green data

18

G5

Green data

19

G6

Green data

20

G7

Green data(MSB)

21

B0

Blue data(LSB)

22

B1

Blue data

23

B2

Blue data

24

B3

Blue data

25

B4

Blue data

26

B5

Blue data

27

B6

Blue data

28

B7

Blue data(MSB)

29

GND

Power Ground

30

CLK

Sample clock

31

DISP

Display on/off

32

NC

No connection

33

NC

No connection

34

DE

Data input enable

35

NC

No connection

36

GND

Power Ground

37

XR

Right electrode

38

YD

Bottom electrode

39

XL

Left electrode

40

YU

Top electrode



Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
