TST0005R0B1241XXXX01

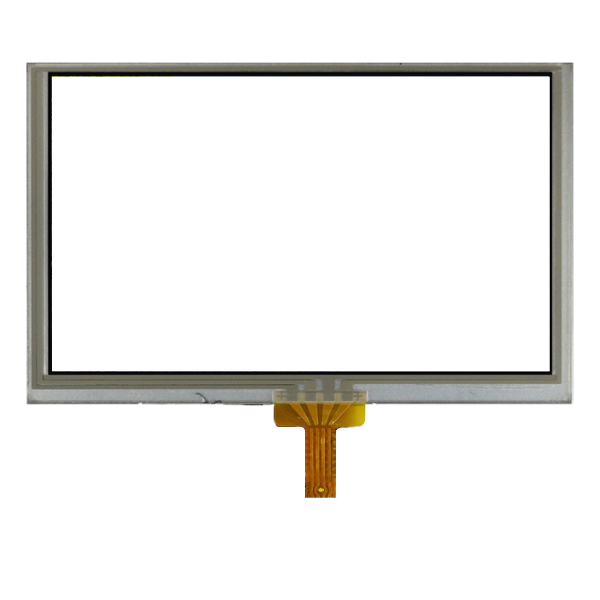

Resistive Touch panel 5", O.D. 119.70x74.80mm, 4w, Film-Glass structure, Soldering FPC (suitable for WST WF43G/V/U families)

General Specification

Item Description
Outline dimension 119.7x74.8mm
View area 111.7x65.91mm
Active area 109x65.51mm
Total thickness 1.5±0.15 (With Double side adhesive)mm
Length of FPC 22.3±0.5mm
Thickness of FPC terminal 0.10±0.05mm

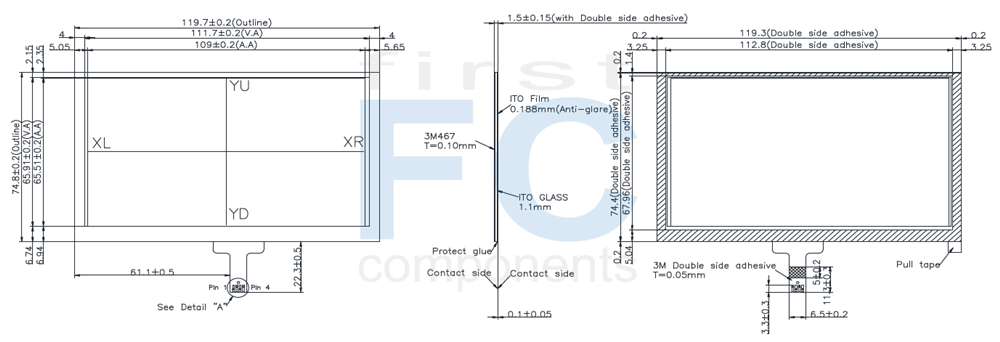

DRAWING

SKU: TST0005R0B1241XXXX01
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€8.60
€6.30
€5.60
€5.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.60 excl tax

General Specification

Item Description
Outline dimension 119.7x74.8mm
View area 111.7x65.91mm
Active area 109x65.51mm
Total thickness 1.5±0.15 (With Double side adhesive)mm
Length of FPC 22.3±0.5mm
Thickness of FPC terminal 0.10±0.05mm


DRAWING

Products specifications
Brand Winstar
Size 5"
Active Area (mm) 109.00x65.51
Constructive Structure GF, 4W
Display Connection FPC for Soldering
Pin Nr. 4
Pin Pitch 1.3mm
Touch Panel IC Controller -
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Active Area (mm) 109.00x65.51
Constructive Structure GF, 4W
Display Connection FPC for Soldering
Pin Nr. 4
Pin Pitch 1.3mm
Touch Panel IC Controller -
Preferred - Not Preferred Preferred
Related products
Picture of WF50-800480FD#0P1-FC

WF50-800480FD#0P1-FC

TFT 5" 800x480 LCD Panel, Interface RGB, 350cd/m², Wide view angle (IPS), Resistive touch panel
From €23.30 excl tax
Picture of WF50-800480FD#0PW0-FC

WF50-800480FD#0PW0-FC

TFT 5" 800x480 LCD Panel, Interface RGB, 500cd/m², Wide view angle (IPS), Super extended Temperature, No touch
From €18.70 excl tax
Picture of WF50-800480FD#0SP1-FC

WF50-800480FD#0SP1-FC

TFT 5" 800x480 LCD Panel, Interface RGB (DE mode), High Brightness 750cd/m², Wide view angle (IPS), Resistive touch panel
From €24.70 excl tax

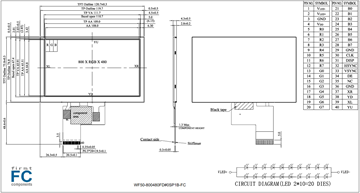

Picture of WF50-800480FD#0SP1B-FC
