WF43-480272WS#0SPW1B-FC

TFT 4.3" 480x272 LCD Panel, Interface SPI (4-wire), High Brightness 700cd/m², Wide view angle (IPS), Super Extended Temperature, Resistive touch panel

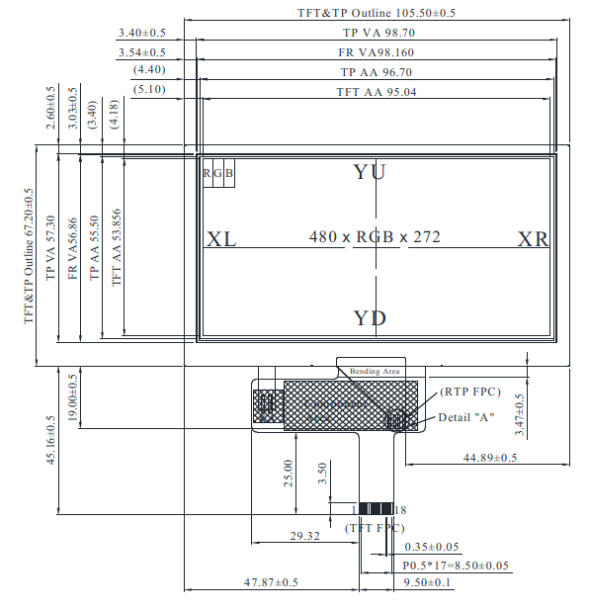

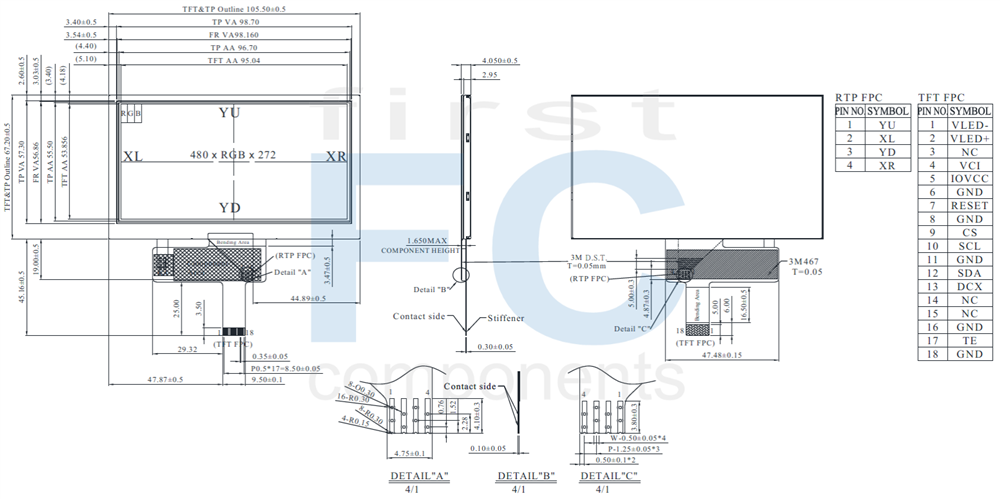

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	NC	No connection
4	VCI	Power supply for analog circuit
5	IOVCC	Power supply for digital interface I/O pins
6	GND	Ground
7	RESET	Reset
8	GND	Ground
9	CS	Chip select, internal pull high. (CSX)
10	SCL	This pin is used serial interface clock
11	GND	Ground
12	SDA	SPI bi-direction data pin (SDA)
13	DCX	Command or parameter select.
14	NC	No connection
15	NC	No connection
16	GND	Ground
17	TE	Tearing effect output pin is used to synchronize MCU frame writing, activated by S/W command. When this pin is not activated (TE function OFF), this pin is GND level.
18	GND	Ground

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	105.5(W) × 67.2(H) × 4.05(D)	mm
Active area	95.04 × 53.856	mm
Dot pitch	0.198 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Aspect Ratio	16:9
TFT Driver IC	NV3041A-01 or equivalent
TFT Interface	4 Line SPI
Backlight Type	LED, Normally White
With/Without TP	With RTP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Power supply for analog circuit	VCI	3.0	3.3	3.6	V
Power supply for logic circuit	IOVCC	1.65	1.8	3.3	V
Current for Driver	I_VCI	-	30	45	mA
Current for Driver	I_IOVCC	-	20	30	mA

SKU: WF43-480272WS#0SPW1B-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€28.90

€23.10

€19.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.90 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	NC	No connection
4	VCI	Power supply for analog circuit
5	IOVCC	Power supply for digital interface I/O pins
6	GND	Ground
7	RESET	Reset
8	GND	Ground
9	CS	Chip select, internal pull high. (CSX)
10	SCL	This pin is used serial interface clock
11	GND	Ground
12	SDA	SPI bi-direction data pin (SDA)
13	DCX	Command or parameter select.
14	NC	No connection
15	NC	No connection
16	GND	Ground
17	TE	Tearing effect output pin is used to synchronize MCU frame writing, activated by S/W command. When this pin is not activated (TE function OFF), this pin is GND level.
18	GND	Ground

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	105.5(W) × 67.2(H) × 4.05(D)	mm
Active area	95.04 × 53.856	mm
Dot pitch	0.198 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Aspect Ratio	16:9
TFT Driver IC	NV3041A-01 or equivalent
TFT Interface	4 Line SPI
Backlight Type	LED, Normally White
With/Without TP	With RTP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Power supply for analog circuit	VCI	3.0	3.3	3.6	V
Power supply for logic circuit	IOVCC	1.65	1.8	3.3	V
Current for Driver	I_VCI	-	30	45	mA
Current for Driver	I_IOVCC	-	20	30	mA

Products specifications

Brand	Winstar
Size	4.3"
Resolution	480x272
Active Area (mm)	95.04x53.85
Color	Full Color
Display Interface	SPI
Display IC	NV3041A-01
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-30~80
Display Connection	FPC for ZIF Connector
Pin Nr.	18
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
