WF43-480272WS#0SPW1-FC

Picture of WF43-480272WS#0SPW1-FC Picture of WF43-480272WS#0SPW1-FC
TFT 4.3" 480x272 LCD Panel, Interface QSPI, High Brightness 700cd/m², Wide view angle (IPS), Super Extended Temperature, Resistive touch panel

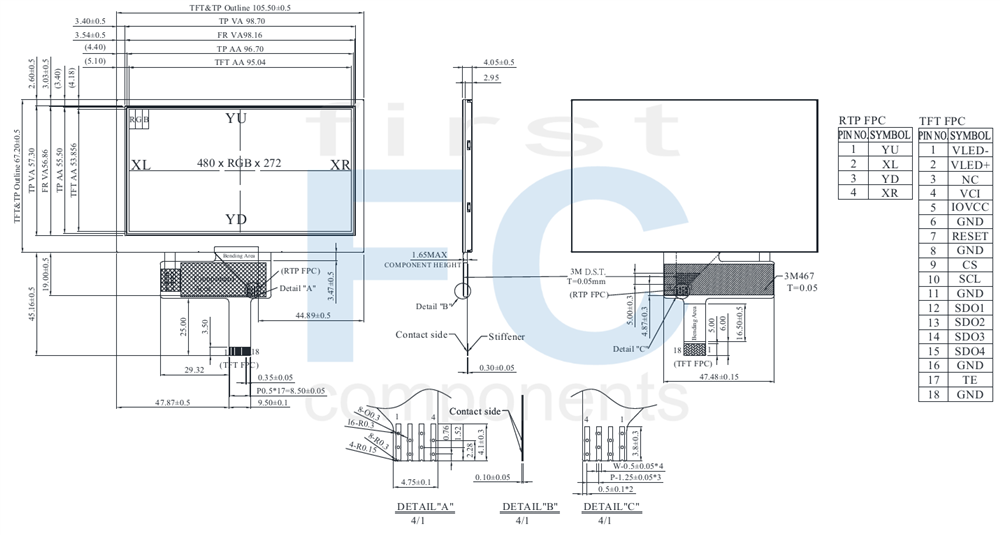

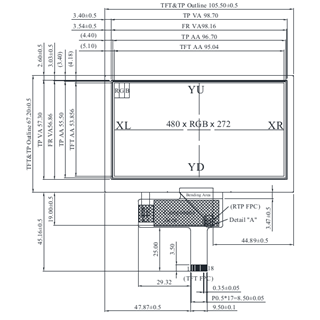

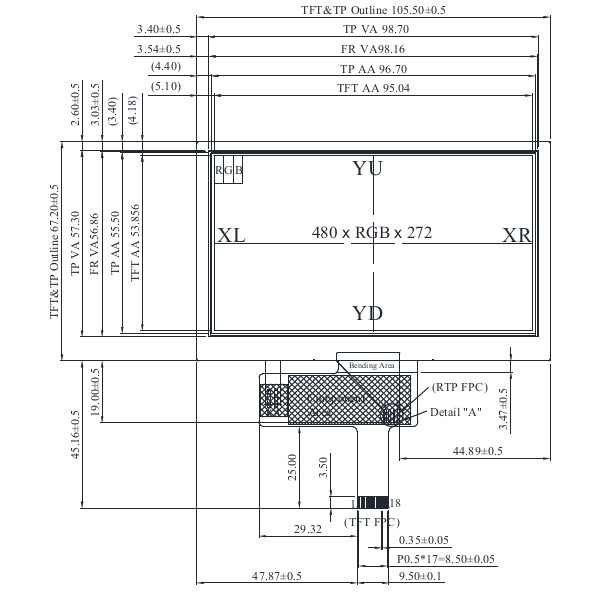

DRAWING





SPECIFICATIONS

Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 NC No connection
4 VCI Power supply for analog circuit
5 IOVCC Power supply for digital interface I/O pins
6 GND Ground
7 RESET Reset
8 GND Ground
9 CS Chip select, internal pull high. (CSX)
10 SCL This pin is used serial interface clock
11 GND Ground
12 SDO1 SPI bi-direction data pin (SDA)
13 SDO2 Std-SPI(4 wire): command or parameter select. Quard-SPI: the second data pin (DCX)
14 SDO3 The third pin of Quard-SPI (DB[2])
15 SDO4 The fourth pin of Quard-SPI (DB[3])
16 GND Ground
17 TE Tearing effect output pin is used to synchronize MCU frame writing, activated by S/W command. When this pin is not activated (TE function OFF), this pin is GND level.
18 GND Ground



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.198 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC NV3041A-01 or equivalent
TFT Interface 4 Line data QSPI
Backlight Type LED, Normally White
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power supply for analog circuit VCI 3.0 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65  1.8 3.3 V
Current for Driver IVCI - 30 45 mA
IIOVCC - 20 30 mA
SKU: WF43-480272WS#0SPW1-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€28.90
€23.10
€19.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.90 excl tax

DRAWING





SPECIFICATIONS

Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 NC No connection
4 VCI Power supply for analog circuit
5 IOVCC Power supply for digital interface I/O pins
6 GND Ground
7 RESET Reset
8 GND Ground
9 CS Chip select, internal pull high. (CSX)
10 SCL This pin is used serial interface clock
11 GND Ground
12 SDO1 SPI bi-direction data pin (SDA)
13 SDO2 Std-SPI(4 wire): command or parameter select. Quard-SPI: the second data pin (DCX)
14 SDO3 The third pin of Quard-SPI (DB[2])
15 SDO4 The fourth pin of Quard-SPI (DB[3])
16 GND Ground
17 TE Tearing effect output pin is used to synchronize MCU frame writing, activated by S/W command. When this pin is not activated (TE function OFF), this pin is GND level.
18 GND Ground



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.198 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC NV3041A-01 or equivalent
TFT Interface 4 Line data QSPI
Backlight Type LED, Normally White
With/Without TP With RTP
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Power supply for analog circuit VCI 3.0 3.3 3.6 V
Power supply for logic circuit IOVCC 1.65  1.8 3.3 V
Current for Driver IVCI - 30 45 mA
IIOVCC - 20 30 mA
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface QSPI
Display IC NV3041A-01
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface QSPI
Display IC NV3041A-01
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -30~80
Display Connection FPC for ZIF Connector
Pin Nr. 18
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
