WF43-480272WS#BSP3-FC

TFT 4.3" 480x272 LCD Panel, Interface QSPI, High Brightness 800cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, ST1624 IC)

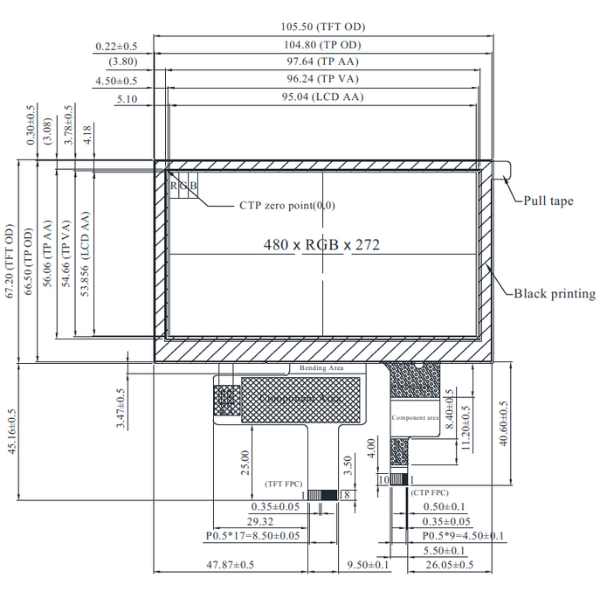

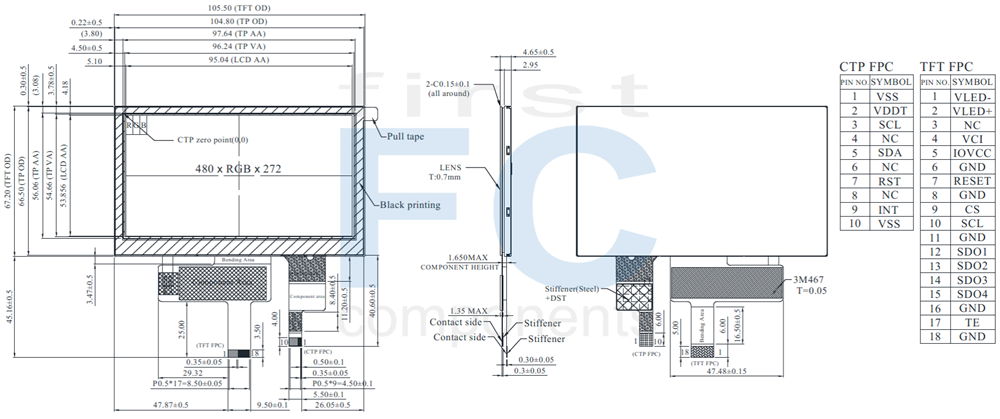

DRAWING

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	NC	No connection
4	VCI	Power supply for analog circuit
5	IOVCC	Power supply for digital interface I/O pins
6	GND	Ground
7	RESET	Reset
8	GND	Ground
9	CS	Chip select, internal pull high. (CSX)
10	SCL	This pin is used serial interface clock
11	GND	Ground
12	SDO1	SPI bi-direction data pin (SDA)
13	SDO2	Std-SPI(4 wire): command or parameter select. Quard-SPI: the second data pin (DCX)
14	SDO3	The third pin of Quard-SPI (DB[2])
15	SDO4	The fourth pin of Quard-SPI (DB[3])
16	GND	Ground
17	TE	Tearing effect output pin is used to synchronize MCU frame writing, activated by S/W command. When this pin is not activated (TE function OFF), this pin is GND level.
18	GND	Ground

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	105.5(W) × 67.2(H) × 4.65(D)	mm
Active area	95.04 × 53.856	mm
Dot pitch	0.198 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	80/80/80/80
Aspect Ratio	16:9
TFT Driver IC	NV3041A-01 or equivalent
TFT Interface	4 Line data QSPI
Backlight Type	LED, Normally White
CTP FW Version	0x01
CTP IC	ST1624 or equivalent
CTP Interface	I2C
CTP Resolution	480*272
With/Without TP	With CTP
Surface	Glare

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Item	Symbol	Min	Typ	Max	Unit
Power supply for analog circuit	VCI	3.0	3.3	3.6	V
Power supply for logic circuit	IOVCC	1.65	1.8	3.3	V
Current for Driver	I_VCI	-	30	45	mA
Current for Driver	I_IOVCC	-	20	30	mA
Supply CTP	VDDT	-	3.3	-	V
Supply CTP	I_DDT	-	15	25	mA

SKU: WF43-480272WS#BSP3-FC

Brand: Winstar

Available: No
