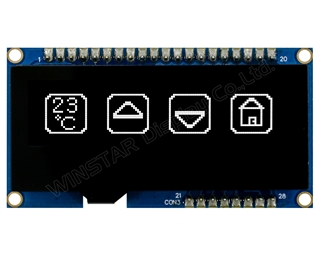

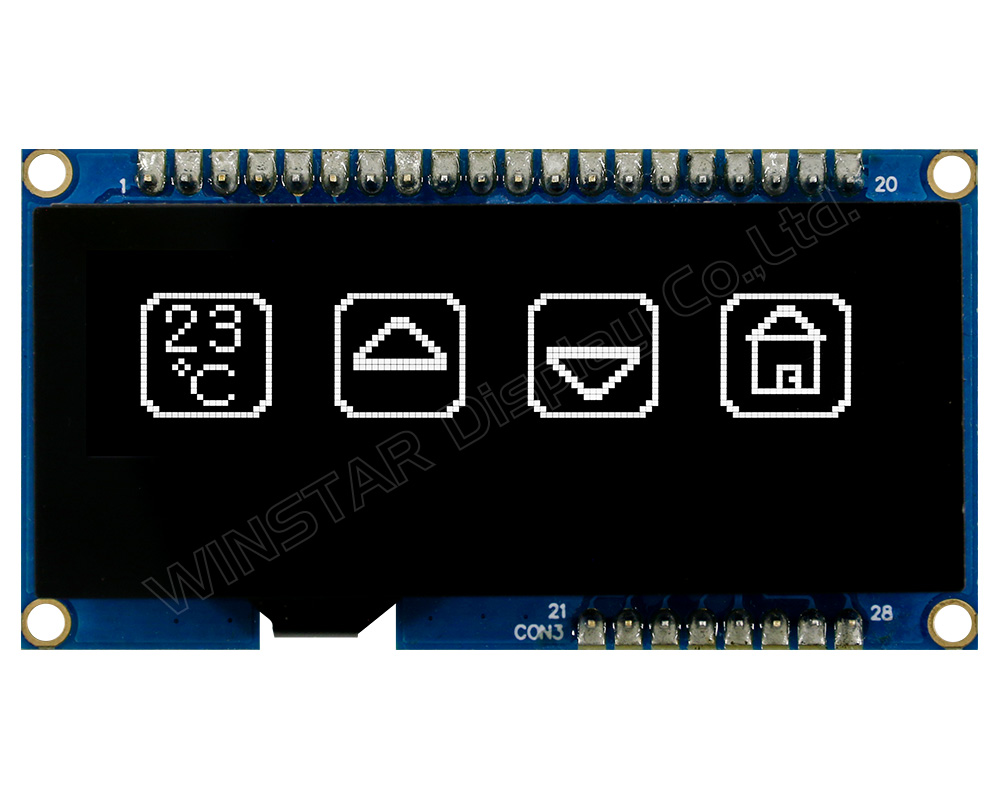

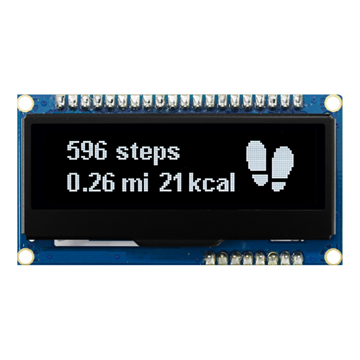

    PMOLED 2.23" Graphic 128x32, White color, COG + PCB + FR, 3~5V, Interface 6800,8080,SPI,I2C, Glare, Capacitive touch panel I2C (IC FT6336U)
    Manufacturer: Winstar
    SKU: WEP12832W#A8D-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €39.10
    €35.20
    €33.10

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €39.10 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    OLED model with Capacitive Touch Panel on board; it is 2.23" diagonal size, made of 128x32 pixels. This OLED module is built in with SSD1305 IC; it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for logic 3.3V, supply voltage for display 12.5V, I/O level 3.3V to 5V, with conversion circuit. This model is having Capacitive Touch Panel on module, it supports I2C interface (IT7259 IC).

    It is a COG OLED display which is having mounting holes on PCB board. Customers can choose Hot Bar Soldering or metal pins with FPC and connector (part no. will be different) for your applications.

    This 2.23 inch OLED module is suitable for smart home application, medical device, smart control, etc. Operating temperatures from -20℃ to +70℃; storage temperatures from -40℃ to +85℃.

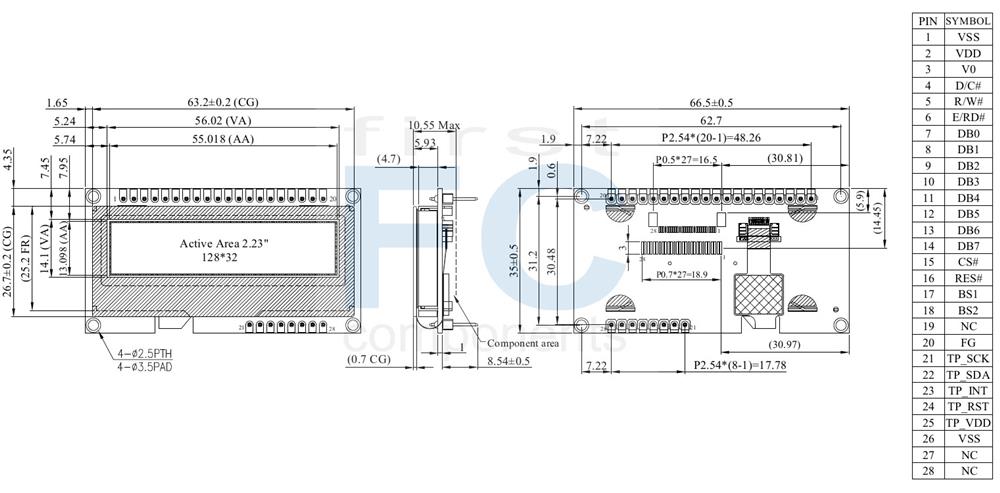

    DRAWING







    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 VSS Ground.
    2 VDD Power supply pin for core logic operation.
    3 V0 Keep float (i.e. disable). Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
    4 D/C# This is Data/Command control pin. When it is pulled HIGH (i.e. connect to VDDIO), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to the command register.
    In I2C mode, this pin acts as SA0 for slave address selection.
    5 R/W# This is read / write control input pin connecting to the MCU interface.
    When interfacing to a 6800-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH (i.e. connect to VDDIO) and write mode when LOW. When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
    When serial interface is selected, this pin must be connected to VSS.
    6 E/RD# When interfacing to a 6800-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled HIGH (i.e. connect to VDDIO)
    and the chip is selected.
    When connecting to an 8080-microprocessor, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
    When serial interface is selected, this pin must be connected to VSS.
    7~14 DB0~DB7 These are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.
    When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be left opened. When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
    15 CS# This pin is the chip select input. (active LOW)
    16 RES# This pin is reset signal input. When the pin is LOW, initialization of the chip is executed.
    Keep this pin HIGH (i.e. connect to VDDIO) during normal operation.
    17,18 BS1, BS2 Communicating Protocol Select.
    These pins are MCU interface selection input. See the following table:
     68XX-parallel80XX-parallelSerialI2C
    BS1 0 1 0 1
    BS2 1 1 0 0
    19 N.C. No connection.
    20 FG(GND) Ground.
    21 TP_SCK I2C Clock
    22 TP_SDA I2C Data
    23 TP_INT Interrupt Output
    This pin is used as the dedicated interrupt output signal.
    24 TP_RST Hardware Reset
    This pin is to reset hardware for this chip.
    25 TP_VDD Power supply pin for only touch panel (3.3V).
    26 VSS Ground.
    27 N.C. No connection.
    28 N.C. No connection.



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 x 32 Dots -
    Module dimension 66.5 x 35.0 x 10.55(Max) mm
    Active Area 55.018 x 13.098 mm
    Pixel Size 0.408 x 0.388 mm
    Pixel Pitch 0.43 x 0.41 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/32 Duty
    IC SSD1305
    OLED Interface 6800, 8080, 4-Wire SPI, I2C
    Size 2.23 inch

    CTP IC IT7259
    Detect Point 1
    CTP Interface I2C
    Surface Normal Glare



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD -0.3 4.0 V
    Supply Voltage for Display V0 0 16.0 V
    Operating Temperature TOP -20 +70 °C
    Storage Temperature TSTG -40 +85 °C




    Electronical Characteristics

    DC Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 3.2 3.3 3.5 V
    Supply Voltage for Display V0 - 12.0 12.5 13.0 V
    Input High Volt. VIH - 0.8×VDD - VDD V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH IOUT = 100uA, 3.3MHz 0.9×VDD - VDD V
    Output Low Volt. VOL IOUT = 100uA, 3.3MHz 0 - 0.1×VDD V
    Operating Current for VDD 50% Check Board IDD V0 =12.5V - 85 128 mA




    Products specifications
    Size 2.23"
    Resolution 128x32
    Active Area (mm) 55.01x13.09
    Dot Size 0.41x0.39
    Polarizer Glare
    Color White
    Power supply 3~5V
    Display Interface 6800/8080/SPI/I2C
    Display IC SSD1305Z
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 28
    Pin Pitch 2.54mm
    Touch Panel IC Controller FT6336U
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2021/10/04 EOL

    Winstar OLED with IC Solomon SSD1305Z



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
