WWOLEDUSBDEMO-158#

Picture of WWOLEDUSBDEMO-158#

Evaluation kit for PMOLED + PCB versions 0.49-2.42"

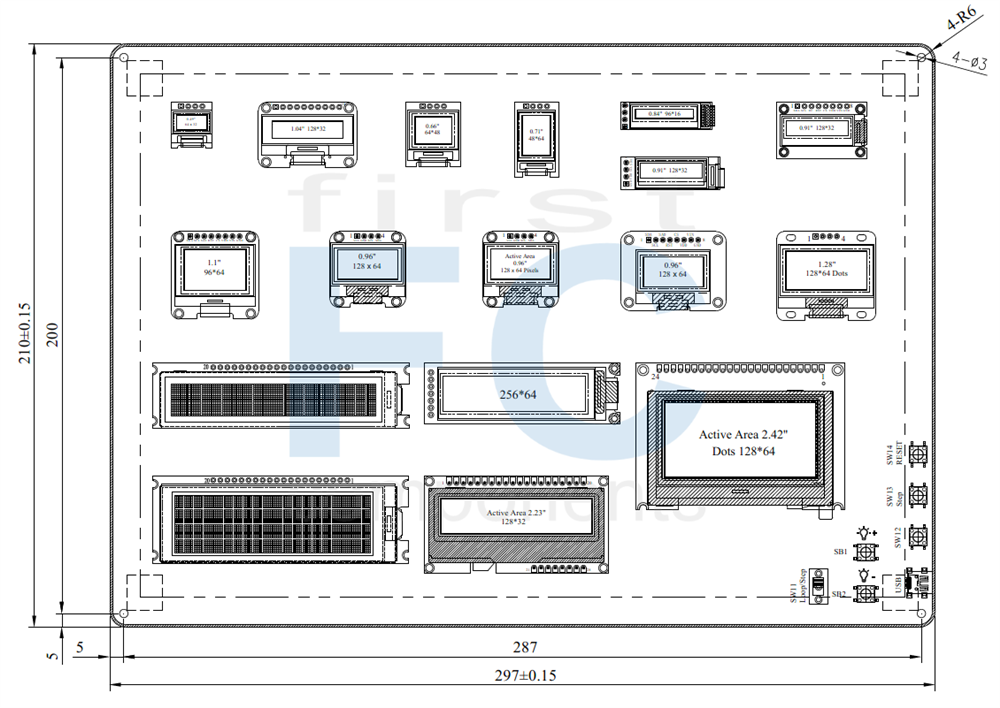

DRAWING

General Specification

Module	Size	Resolution
WEA6432W#A00-FC	0.49"	64*32
WEA12832W#E00-FC	1.04"	128*32
WEA6448W#A00-FC	0.66"	64*48
WEA4864W#A00-FC	0.71"	48*64
WEA9616W#A00-FC	0.84"	96*16
WEA12832W#F00-FC	0.91"	128*32
WEA12832W#D00-FC	0.91"	128*32
WEA9664L#B00-FC	1.1"	96*64
WEA12864W#D08-FC	0.96"	128*64
WEA12864X#M00-FC	0.96"	128*64
WEA12864W#D00-FC	0.96"	128*64
WEA12864L#L00-FC	1.28"	128*64
WEP2002W#AP3N00000-FC	2.93"	20*2
WEA25664W#A01-FC	2.08"	256*64
WEP2004L#C00-FC	2.89"	20*4
WEP12832W#A8D-FC	2.23"	128*32
WEO12864W#J0D-FC	2.42"	128*64

Interface Description

Component explain

Parts Location	Function explanation	Remarks
USB	+5V power supply from adaptor or Notebook/PC	-
SB1	High Brightness	-
SB2	Low Brightness	-
SW11	Loop/Step Mode Function switch	-
SW12	Reserved Switch. No function	-
SW13	Step Control Function (Switch to the next image)	-
SW14	Reset Function	-

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
USB Supply Voltage	VDD	0	5.5	V	1
Operating Temperaature	TOP	-20	+60	°C	-
Storage Temperature	TSTG	-30	+70	°C	-

Note 1: All the above voltages are on the basis of "VSS = 0V".

Electrical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min.	Typical	Max.	Unit
USB Supply Voltage	VDD-VSS	-	4.7	5	5.3	V
VDD Supply Current	IDD	-	2	-	3	A

Module Dimensions Characteristics

No	Item	Remark
1.	Demo Board PCB + OLED Module	297*210 (mm)

SKU: WWOLEDUSBDEMO-158#
