GPHB101-0802A044A1BA-30

Pin Header - R/A Contact, Single Row, 8 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3,20mm)

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

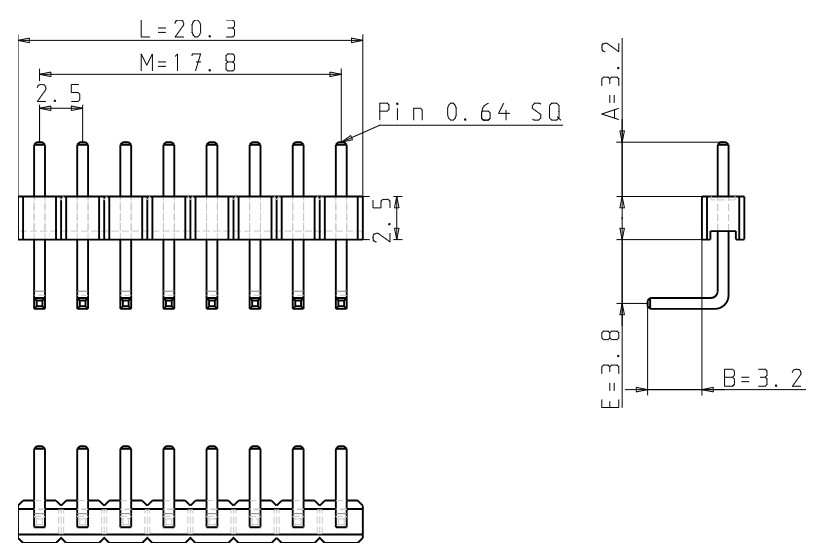

Dimensions

SKU: GPHB101-0802A044A1BA-30
Brand: Greenconn
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€2.10
€1.90
€1.70
€1.50
€1.30
€1.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€2.10 excl tax

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*8
Pin Pitch 2.54mm
Contact Direction R/A
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*8
Pin Pitch 2.54mm
Contact Direction R/A
Related products
Picture of CSHA106-0802A001R1AB-30

CSHA106-0802A001R1AB-30

Female Header - Straight Contact, Single Row, 8 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3-4,50mm)
From €0.35 excl tax
