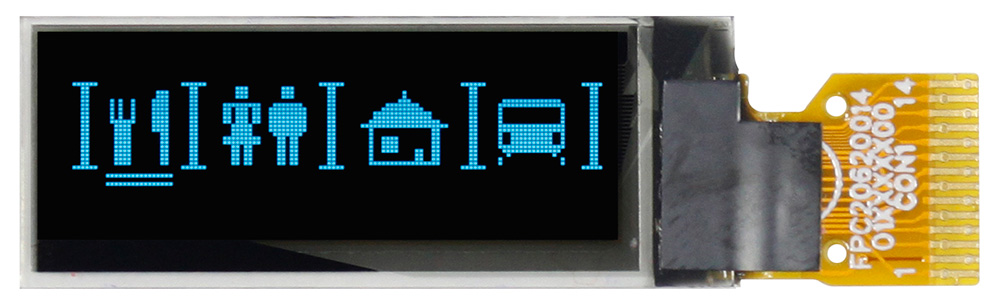

    PMOLED 0.91" Graphic 128x32, Sky Blue color, COG, 3V, Interface I2C (FPC per Soldering), Thinner version, Glare
    Manufacturer: Winstar
    SKU: WEO12832S#F08-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €6.40
    €5.80
    €5.40
    €5.30

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €6.40 excl tax
    i h

    DESCRIPTION



    Popular small OLED display which is made of 128x32 pixels, diagonal size 0.91 inch, it's very suitable for wearable device. It has the same mechanical dimension as WEO12832x#D00-FC but having different pin assignment and supports different interface. WEO012832F module is built in with SSD1306 controller IC; it supports I2C interface and having 14 pins FPC pintout. It is also built in with SSD1306 IC but it communicates via SPI interface and having 15 pins FPC pinout.

    COG structure OLED display, its controller is built-in voltage generation only need a single 3V power supply. This OLED I2C Display is lightweight, low power and small, this COG module is suitable for wall / meter devices, home applications, Cloud/IoT system, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instrument, wearable device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

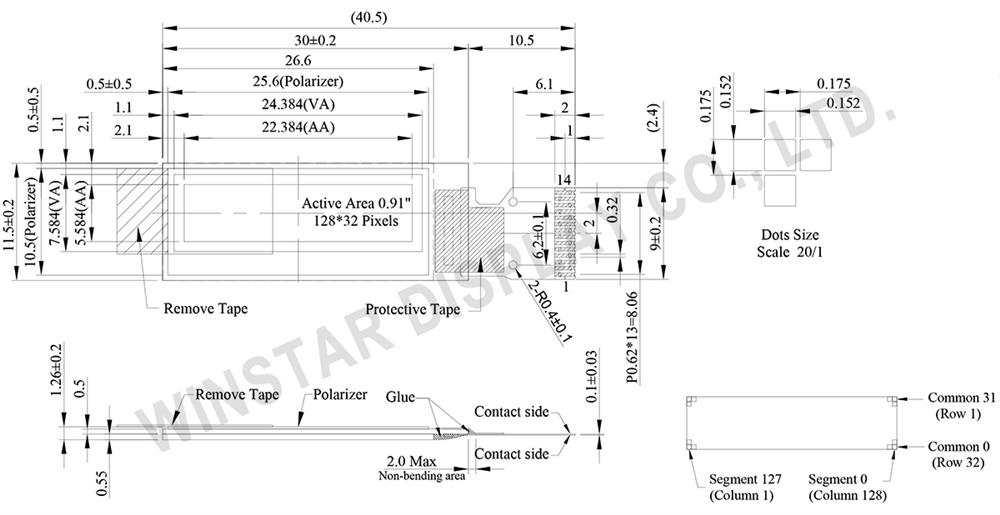

    DRAWING

    Winstar 0.91,OLED I2C, OLED I2C Display - WEO012832F



    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 C2P Positive Terminal of the Flying Inverting CapacitorNegative Terminal of the Flying Boost CapacitorThe charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
    2 C2N
    3 C1P
    4 C1N
    5 VBAT Power Supply for DC/DC Converter Circuit
    This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
    6 NC No connection
    7 VSS Ground of Logic Circuit
    This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
    8 VDD Power Supply for Logic
    This is a voltage supply pin. It must be connected to external source.
    9 RES# Power Reset for Controller and Driver
    This pin is reset signal input. When the pin is low, initialization of the chip is executed.
    10 SCL I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin inapplication and D0 is the serial clock input, SCL.
    11 SDA
    12 IREF Current Reference for Brightness Adjustment
    This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
    13 VCOMH Voltage Output High Level for COM Signal
    This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
    14 VCC Power Supply for OEL Panel
    This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.



    General Specification

    ItemDimensionUnit
    Dot Matrix 128 × 32 Dots
    Module dimension 30.0 × 11.5 × 1.26 mm
    Active Area 22.384 × 5.584 mm
    Pixel Size 0.152 × 0.152 mm
    Pixel Pitch 0.175 × 0.175 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/32 Duty
    IC SSD1306
    Interface I2C
    Size 0.91 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD 0 4.0 V
    Supply Voltage for Display VCC 0 16.0 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    DC Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
    Supply Voltage for Display VCC - 7 7.25 8 V
    Input High Volt. VIH - 0.8×VDD - VDDIO V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH - 0.9×VDD - VDDIO V
    Output Low Volt. VOL - 0 - 0.1×VDD V
    Operating Current for VCC (VCC Supplied Externally) ICC Vcc =7.25V - 7 11 mA



    Products specifications
    Size 0.91"
    Resolution 128x32
    Active Area (mm) 22.38x5.58
    Dot Size 0.15x0.15
    Polarizer Glare
    Color Sky Blue
    Power supply 3V
    Display Interface I2C
    Display IC SSD1306BZ
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for Soldering
    Pin Nr. 14
    Pin Pitch 0.62mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
