    PMOLED 2.7" Graphic 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, Frame (22 pins), Glare
    Manufacturer: Winstar
    SKU: WEF12864L#K08-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €27.30
    €24.60
    €23.10

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €27.30 excl tax
    i h

    DESCRIPTION

    Winstar OLED Monochrome Display made of 128x64 pixels, diagonal size is 2.7 inch. Frame version. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.

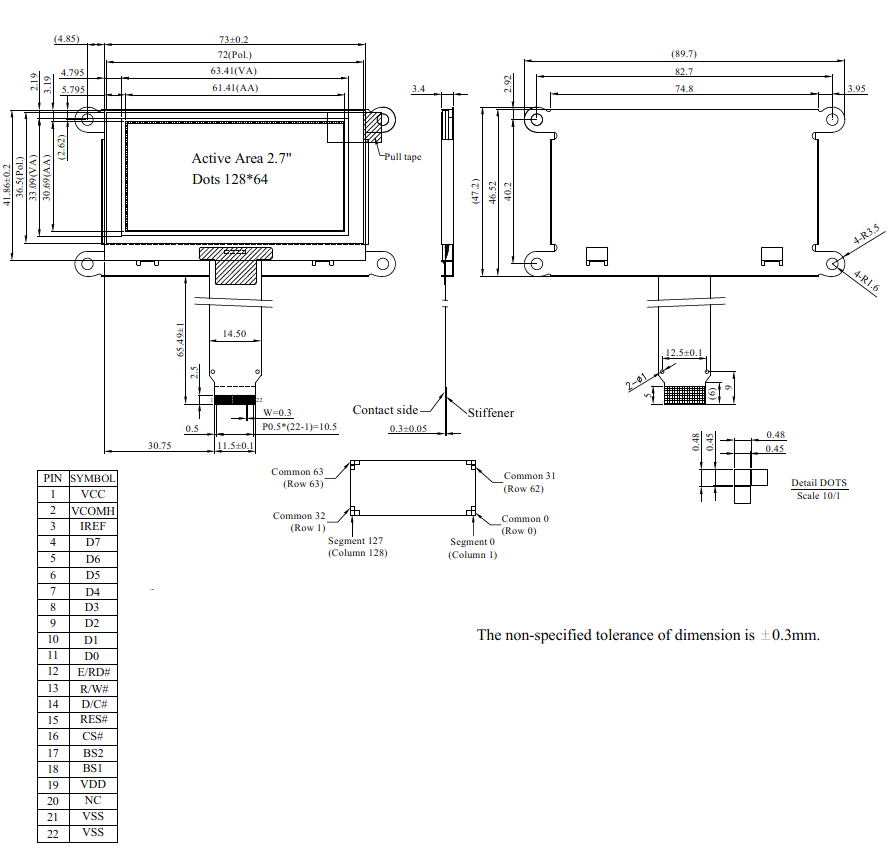

    DRAWING

    Products specifications
    Size 2.7"
    Resolution 128x64
    Active Area (mm) 61.41x30.69
    Dot Size 0.45x0.45
    Polarizer Glare
    Color Yellow
    Power supply 3V
    Display Interface 6800/8080/SPI/I2C
    Display IC SSD1309
    Constructive Structure COG
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 22
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2023/11/03 PCN FPC Improvement on WEO12864*#G/K and WEF12864*#K OLEDs



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
