FC-ISM-B11

External Antenna, 868MHz, 3.5dBi Gain, SMA Male Connector (ROHS, CE, REACH)

Description

Rubber duck 868MHz antenna is designed for ISM-Band terminals and devices. Flexible SMA-Male connector allows antenna to operate with 45°90°360°rotation. it will be great to help us to get the best signal. With VSWR of less than 1.8 and a gain of 5dBi, it should be great choice for 868MHz ISM band applications.



Specifications

Antenna Type

868MHz terminal antenna

Part Number

FC-ISM-B11

Frequency Range-MHz

868MHz

Gain

3.5DBI

V.S.W.R

≤1.5

Nominal Impedance

50 Ohms

Polarization

Vertical

Radiation Pattern

Omni-directional

Construction

TPEE/ABS(rubber duck)

Dimensions-mm

195x12.5mm

Antenna style

Tilt / swivel

Mounting

Hinged connector mount

Antenna color

Black or White

Connector

SMA male (FME/BNC/MCX/MMCX and so on)

Operating Temperature

-40℃~+85℃

Storage Temperature

-40℃~+85℃

Compliant

ROHS,CE,ISO



Strength Points

    1. Hinged SMA(M) connector The FC-ISM-B11 is a high performance 868MHz terminal mount dipole antenna, it is 195mm tall and 12.5mm in diameter and can be mounted straight or right angled due to its hinged SMA(M) connector which comes as standard. This antenna performs very well in free space, making it an ideal solution in areas where there may be no ground plane.
    2. Offer superior range and coverage This antenna is designed for providing omni-directional 868MHz frequency transmission. It will offer superior range and coverage for common internet of things applications include::metering, security systems,remote monitoring and many other IoT applications.
    3. Durable and compact size FC-ISM-B11 868MHz dipole antenna is made of TPEE/ABS material, Which make it with a durable, low profile and very low visual impact.
    4. This antenna is great for terminal installations on a range of industrial IoT, electronic, and smart metering solution, Wireless sensor remote monitoring ,Industrial IoT

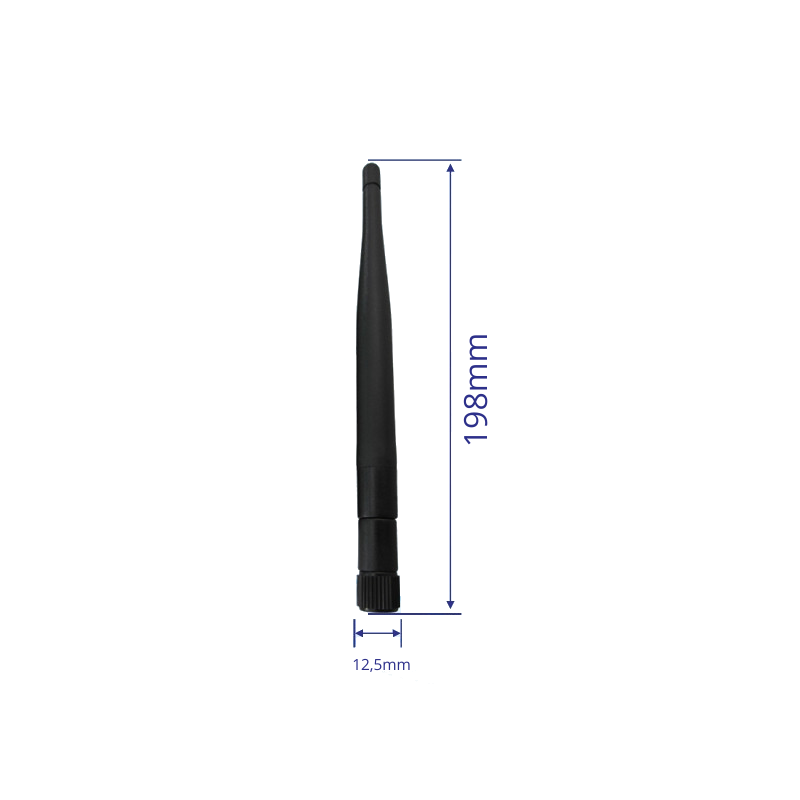

Dimensions

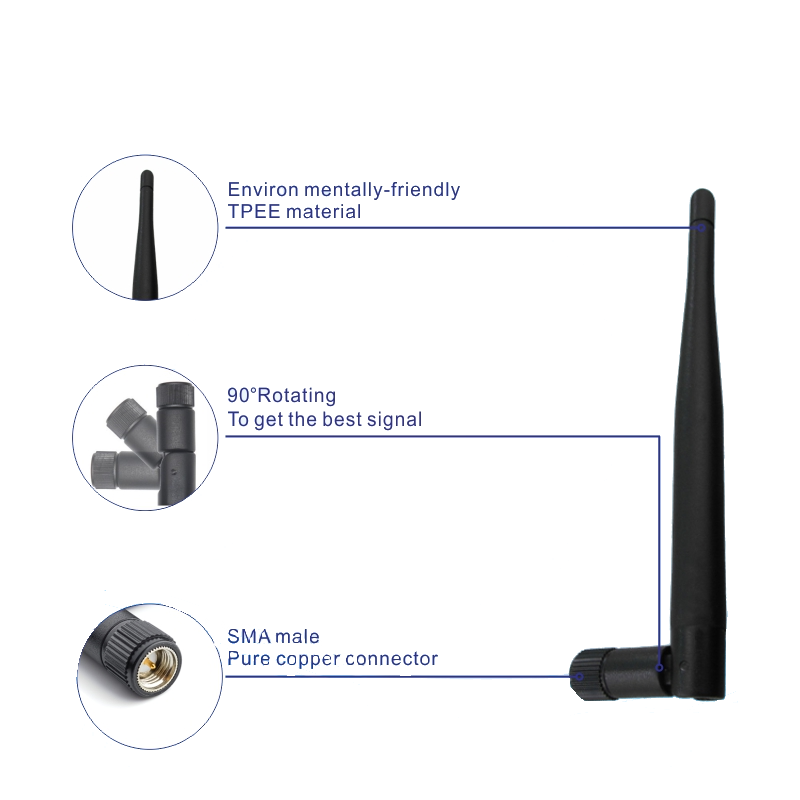

Details

SKU: FC-ISM-B11
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€2.50
€2.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
