FC-RC-001

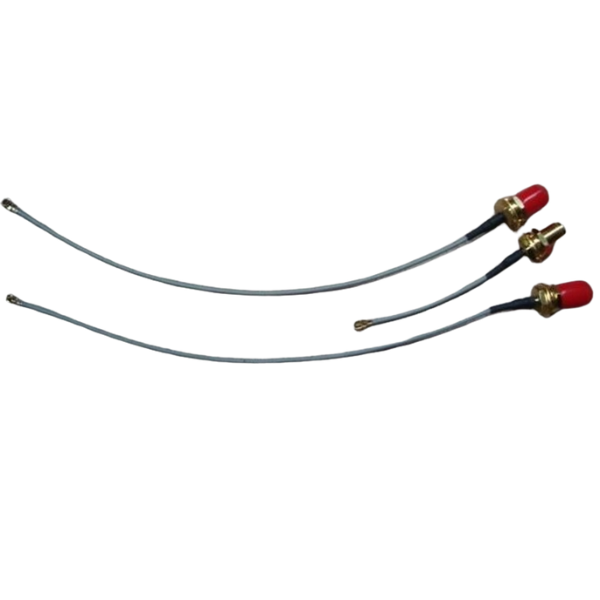

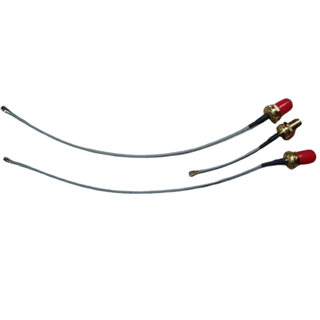

SMA Female to UFL IPEX Cable, 150mm Length (ROHS, CE, REACH)

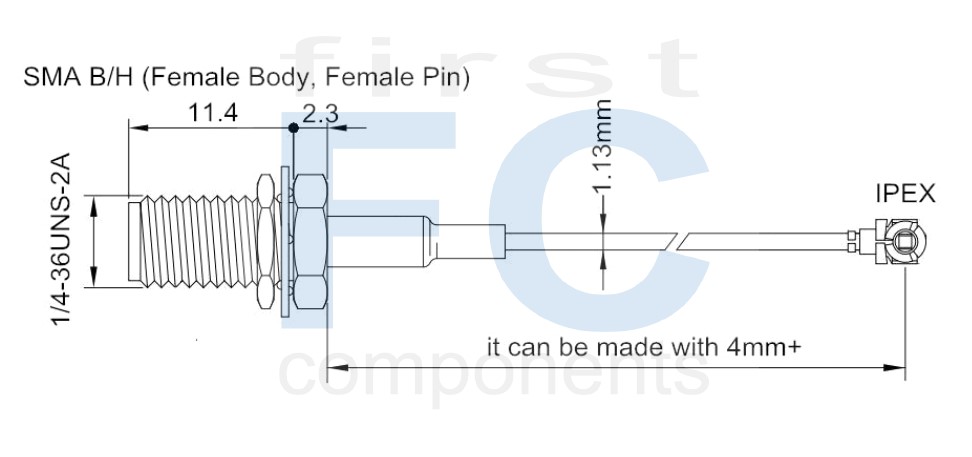

Drawing



Specifications

Electrical Specifications

Frequency Range

DC~6GHZ

Insertion Loss

0.6DB

VSWR

≤1.8

Input Impedance

50Ω

Insulator

FEP

Max Input Power (w)

50

Mechanical Specifications

WorkingTemperature

-40~85

Connector Type

SMABH(Female Body,Female Pin) to UFL

KV

50±2

Cable type

UI-1.13

Cable length

150mm(Customized)

Jacket Dimensions

Ø1.13



SKU: FC-RC-001
Available: Yes
Price Breaks
Quantity
1+
5+
Price
€1.90
€1.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€1.90 excl tax

Drawing



Specifications

Electrical Specifications

Frequency Range

DC~6GHZ

Insertion Loss

0.6DB

VSWR

≤1.8

Input Impedance

50Ω

Insulator

FEP

Max Input Power (w)

50

Mechanical Specifications

WorkingTemperature

-40~85

Connector Type

SMABH(Female Body,Female Pin) to UFL

KV

50±2

Cable type

UI-1.13

Cable length

150mm(Customized)

Jacket Dimensions

Ø1.13



Products specifications
Brand FC
Download
Products specifications
Brand FC
