FC-GNSS-024LT

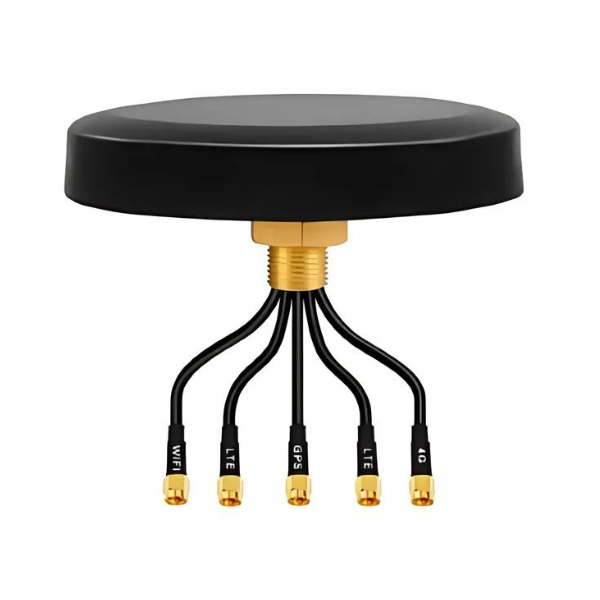

Picture of FC-GNSS-024LT

External MiMo Antenna (GNSS/4G/WiFi/BT), SMA Male Connector, Waterproof IP67 (ISO, ROHS, CE, REACH)

TECHNICAL SPECIFICATION

GNSS Specifications
Frequency Range	1575.42-1602MHZ
LNA Gain	30 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	RHCP
Axial Ration	3dB (max)
Noise Figure	< 1.5 dB
Supply Voltage	Supply Voltage
Current Consumption	5~15mA

4G Specifications
Frequency Range	690~960/1710~2170/2500~2700MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear

WIFI Specifications
Frequency Range	2400~2500MHz/5100-5800MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear

BT Specifications
Frequency Range	2400~2500MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear

SKU: FC-GNSS-024LT

Available: No

Be the first to review this product

Accessory Kit

Added Accessory 1

Price Breaks

Quantity

1+

5+

Price

€46.30

€41.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€46.30 excl tax

Overview
Specifications
Download
Contact Us

TECHNICAL SPECIFICATION

GNSS Specifications
Frequency Range	1575.42-1602MHZ
LNA Gain	30 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	RHCP
Axial Ration	3dB (max)
Noise Figure	< 1.5 dB
Supply Voltage	Supply Voltage
Current Consumption	5~15mA

4G Specifications
Frequency Range	690~960/1710~2170/2500~2700MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear

WIFI Specifications
Frequency Range	2400~2500MHz/5100-5800MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear

BT Specifications
Frequency Range	2400~2500MHz
Gain	5 ± 2dB
VSWR	≤1.5
Input Impendance	50Ω
Polarization	Linear
