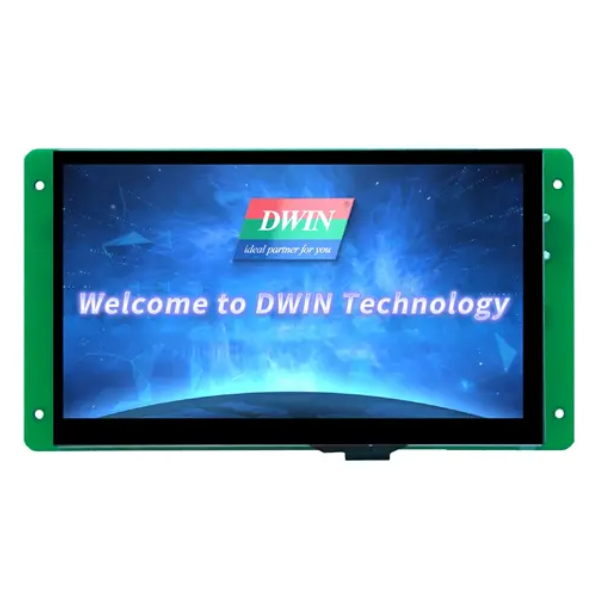

DMG80480T070_41WTC
DMG80480T070_41WTC
TFT 7" 800x480, Intelligent T5L UART COB, 250cd/m², Capacitive Touch Panel, Industrial Grade
Display
LCD Type
TN process TFT display screen
Viewing Angle
Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution
800×480 pixels (support 0°/90°/180°/270°)
Color
16.7M color (24-bit 8R8G8B)
Active Area (A.A.)
154.08mm (W)×85.92mm (H)
Interface
RGB
Backlight Mode
LED
Backlight Service Life
>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness
250nit
Brightness Control
0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Touch Parameters
Type
CTP (Capacitive touch panel)
Interface
I²C
Structure
G+G structure with surface cover of tempered glass
Touch Mode
Single point touch and support continuous sliding touch
Surface Hardness
6H
Light Transmittance
>85%
Life
Over 1,000,000 times touch
Voltage & Current
Rated Power
<3W
Operating Voltage
7~36V, typical value of 12V
Operating Current
230mA
VCC=12V, max backlight
90mA
VCC=12V, backlight off
Recommended power supply: 12V 1A DC
Interface
Mode
UART2: ON=TTL/CMOS; OFF=RS232
Voltage Level
Test Condition
Min
Typ
Max
Unit
Output 1, Iout = -4mA
4.78
5.0
-
V
Output 0, Iout = 4mA
-
-
0.4
V
Input 1
2.5
5.0
-
V
Input 0
-
-
1.0
V
Baud Rate
3150~3225600bps, typical value of 115200bps
Data Format
UART2: N81
Interface Cable
8Pin_2.0mm

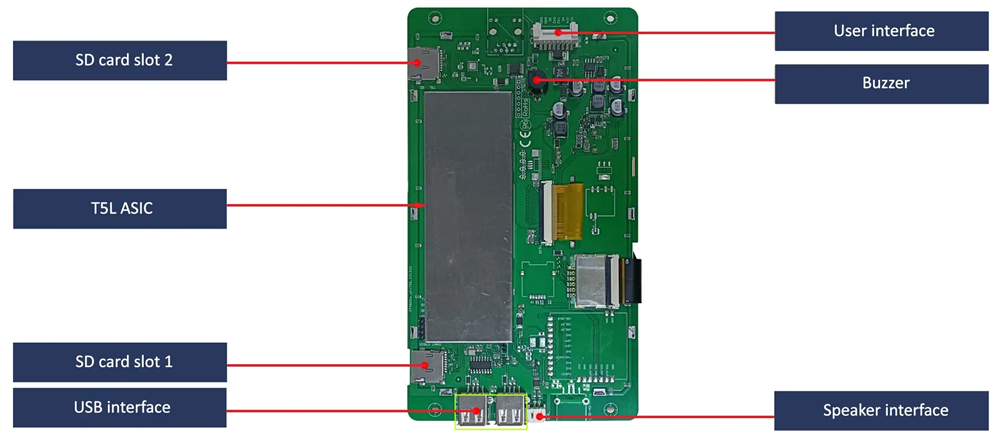

Display Connection
Accessories (Selectable in Above Menu)
DRAWING
SKU:
DMG80480T070_41WTC
Brand:
DWIN
Available:
Yes
Be the first to review this product
Accessory Kit
FFC Cable
-- Details Below in 'Related Products' --
HDL65013
Display Connector
-- Details Below in 'Related Products' --
8PIN_2.0
Added Accessory 1
-- Details Below in 'Related Products' --
HDL65011
Added Accessory 2
-- Details Below in 'Related Products' --
SD_CARD [+€8.20]
Price Breaks
Quantity
1+
5+
10+
Price
€108.10
€99.80
€82.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€108.10 excl tax
Overview
Specifications
Download
Contact Us
Display
LCD Type
TN process TFT display screen
Viewing Angle
Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution
800×480 pixels (support 0°/90°/180°/270°)
Color
16.7M color (24-bit 8R8G8B)
Active Area (A.A.)
154.08mm (W)×85.92mm (H)
Interface
RGB
Backlight Mode
LED
Backlight Service Life
>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness
250nit
Brightness Control
0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Touch Parameters
Type
CTP (Capacitive touch panel)
Interface
I²C
Structure
G+G structure with surface cover of tempered glass
Touch Mode
Single point touch and support continuous sliding touch
Surface Hardness
6H
Light Transmittance
>85%
Life
Over 1,000,000 times touch
Voltage & Current
Rated Power
<3W
Operating Voltage
7~36V, typical value of 12V
Operating Current
230mA
VCC=12V, max backlight
90mA
VCC=12V, backlight off
Recommended power supply: 12V 1A DC
Interface
Mode
UART2: ON=TTL/CMOS; OFF=RS232
Voltage Level
Test Condition
Min
Typ
Max
Unit
Output 1, Iout = -4mA
4.78
5.0
-
V
Output 0, Iout = 4mA
-
-
0.4
V
Input 1
2.5
5.0
-
V
Input 0
-
-
1.0
V
Baud Rate
3150~3225600bps, typical value of 115200bps
Data Format
UART2: N81
Interface Cable
8Pin_2.0mm
Display Connection
Accessories (Selectable in Above Menu)
DRAWING
Products specifications
Brand
DWIN
Size
7"
Resolution
800x480
Viewing Area (mm)
154.08×85.92
Active Area (mm)
154.08×85.92
Color
Full Color
Nr. Of Color
16.7M
Operating System
DGUSII OS
Power supply
12V
Display Interface
UART(TTL)/RS232
Display IC
DWIN ASIC T5L2
View Angle
TN
Touch Panel
Capacitive
O. Temperature (°C)
-20~70
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
DWIN
Size
7"
Resolution
800x480
Viewing Area (mm)
154.08×85.92
Active Area (mm)
154.08×85.92
Color
Full Color
Nr. Of Color
16.7M
Operating System
DGUSII OS
Power supply
12V
Display Interface
UART(TTL)/RS232
Display IC
DWIN ASIC T5L2
View Angle
TN
Touch Panel
Capacitive
O. Temperature (°C)
-20~70
Preferred - Not Preferred
Preferred
Related products
HDL65011
Ribbon Cable 8 pins 2mm pitch to DB9 and Power Interface, 200mm length
Quote request
HDL65013
Ribbon Cable 8 pins, 2mm pitch, 200mm length
Quote request
8PIN_2.0
Wafer Connector 8 pins, 2mm pitch
Quote request
SD_CARD
16Gb Micro SD Card with Adapter
From €7.70 excl tax
ED4 USB
DWIN Intelligent T5L USB Downloader
Quote request
