DMG80480K070_03WTC

TFT 7" 800x480, Intelligent T5L RS485/RS232 COB, 250cd/m², Capacitive Touch Panel (GG), Medical Grade



Media

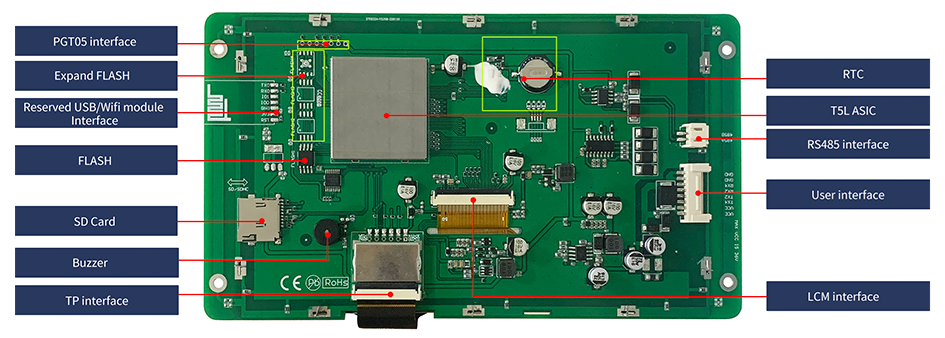

ASIC Information


T5L1 ASIC Self-designed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times



Display


Color 16.7M colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Display Area(A.A) 154.08mm (W)×85.92mm (H)
Resolution 800x480
Backlight LED
Brightness 250nit



Voltage & Current


Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on,240mA
VCC = +12V, Backlight off,80mA




Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface 4Pin_1.0mm interface
CTP interface COB structure, IIC interface
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;-5.0~-3.0 V
Output 0, Iout =-1mA;3.0~5.0 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;-15.0~-5.0V
Input 0, Iin = -1mA;5.0~15.0V
Interface UART2:RS232
UART4:RS232 (Only available after OS configuration)
UART5:RS485 (Only available after OS configuration)
User Interface 8Pin_2.0mm(RS232),2Pin_2.0mm(RS485)
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

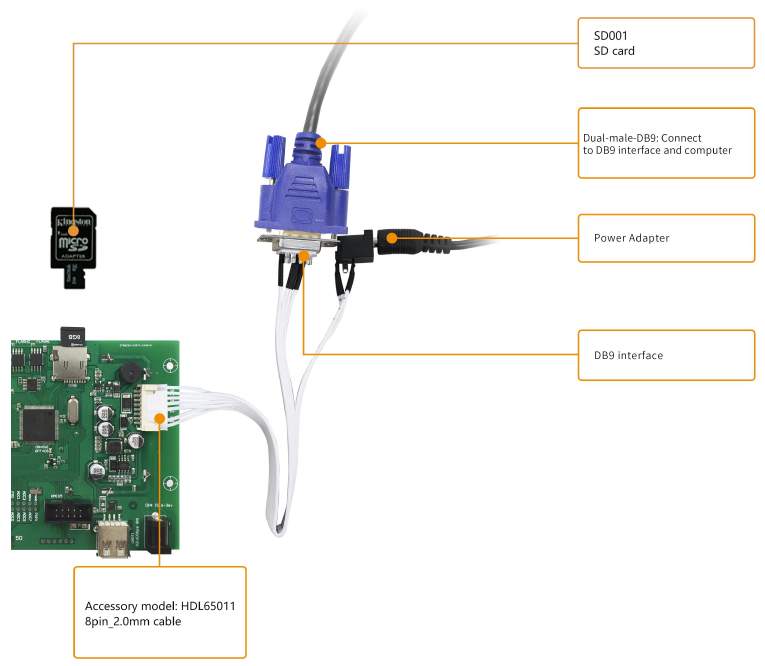

Display Connection








Accessories (Selectable in Above Menu)








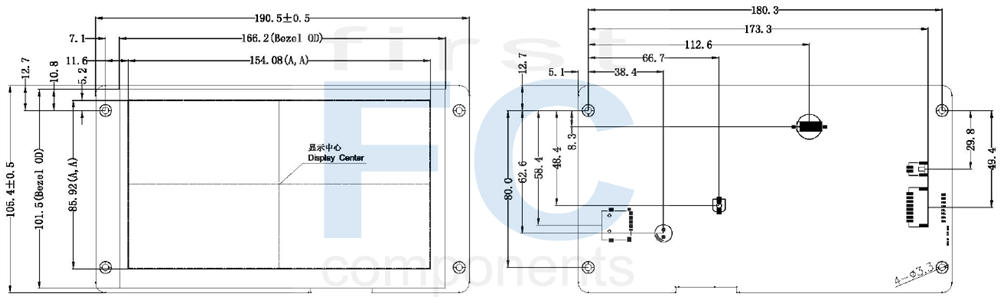

DRAWING






SKU: DMG80480K070_03WTC
Brand: DWIN
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€71.80
€66.20
€63.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€71.80 excl tax



Media





ASIC Information


T5L1 ASIC Self-designed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times



Display


Color 16.7M colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Display Area(A.A) 154.08mm (W)×85.92mm (H)
Resolution 800x480
Backlight LED
Brightness 250nit



Voltage & Current


Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on,240mA
VCC = +12V, Backlight off,80mA




Interface

LCM interface FPC50_0.5mm, RGB interface
RTP interface 4Pin_1.0mm interface
CTP interface COB structure, IIC interface
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;-5.0~-3.0 V
Output 0, Iout =-1mA;3.0~5.0 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;-15.0~-5.0V
Input 0, Iin = -1mA;5.0~15.0V
Interface UART2:RS232
UART4:RS232 (Only available after OS configuration)
UART5:RS485 (Only available after OS configuration)
User Interface 8Pin_2.0mm(RS232),2Pin_2.0mm(RS485)
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal



Display Connection








Accessories (Selectable in Above Menu)








DRAWING






Products specifications
Brand DWIN
Size 7"
Resolution 800x480
Viewing Area (mm) 154.08×85.92
Active Area (mm) 154.08×85.92
Color Full Color
Nr. Of Color 16.7M
Operating System DGUSII OS
Power supply 12V
Display Interface RS232/RS485
Display IC DWIN ASIC T5L1
View Angle TN
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
