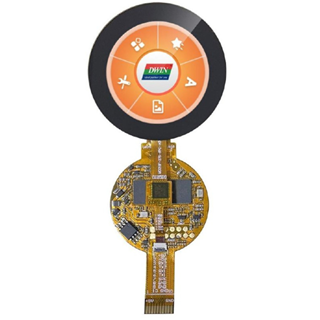

DMG40400F016_06WTC
DMG40400F016_06WTC
TFT 1.6" 400x400, Round Intelligent T5L UART COF, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel
ASIC Information
T5L0-Q88 ASIC*2
T5L0-Q88 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2023.
Display
Color
262K colors
LCD Type
IPS, TFT LCD
Viewing Angle
Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A)
39.84mm (W)×39.84mm (H)
Resolution
400*400
Backlight
LED
Brightness
250nit
Voltage & Current
Power Voltage
4.5~5.5V
Operation Current
160mA VCC=5V, max backlight
80mA VCC=5V, backlight off
Interface
User interface
10Pin_1.0mm FPC
Data Format
N81
Output Voltage
(TXD)
Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
(RXD)
Input 1;3.3V
Input 0;0~0.5V
Interface
UART1: TTL;
UART2: TTL;

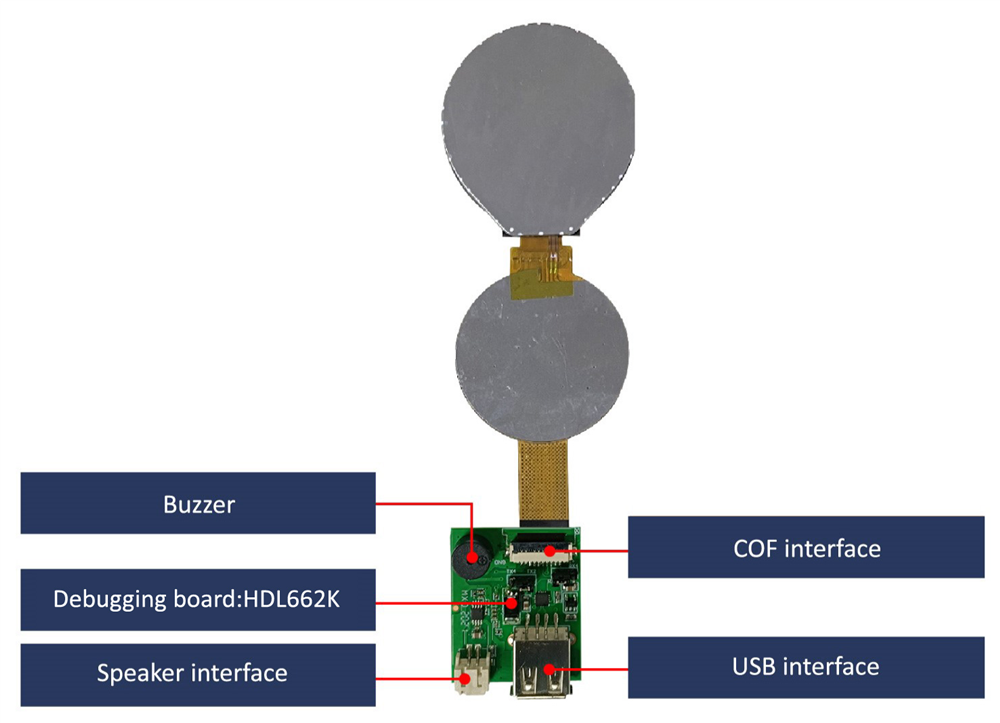

Display Connection
Accessories (Selectable in Above Menu)

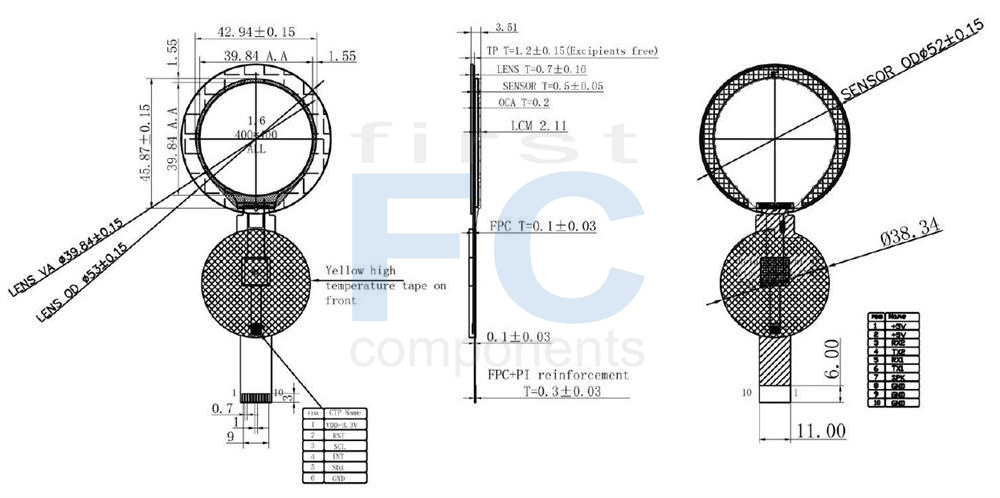

DRAWING
External Interface
Pin
Definition
Type
Functional Description
1
+5V
P
Power supply, DC4.5-5.5V
2
+5V
3
RX2
I
UART2 Input
4
TX2
O
UART2 Output
5
RX1
I
UART1 Input
6
TX1
O
UART1 Output
7
SPK
O
External MOSFET to drive buzzer or speaker
8
GND
P
GND
9
GND
10
GND
SKU:
DMG40400F016_06WTC
Brand:
DWIN
Available:
Yes
Be the first to review this product

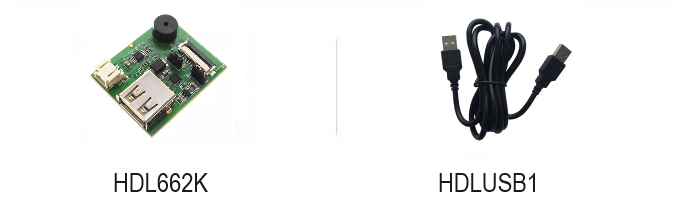

Accessory Kit
Added Board
-- Details Below in 'Related Products' --
HDL662K
Added Accessory 1
-- Details Below in 'Related Products' --
HDLUSB1
Price Breaks
Quantity
1+
5+
10+
Price
€33.90
€29.20
€26.30
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€33.90 excl tax
Overview
Specifications
Download
Contact Us
ASIC Information
T5L0-Q88 ASIC*2
T5L0-Q88 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2023.
Display
Color
262K colors
LCD Type
IPS, TFT LCD
Viewing Angle
Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area(A.A)
39.84mm (W)×39.84mm (H)
Resolution
400*400
Backlight
LED
Brightness
250nit
Voltage & Current
Power Voltage
4.5~5.5V
Operation Current
160mA VCC=5V, max backlight
80mA VCC=5V, backlight off
Interface
User interface
10Pin_1.0mm FPC
Data Format
N81
Output Voltage
(TXD)
Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
(RXD)
Input 1;3.3V
Input 0;0~0.5V
Interface
UART1: TTL;
UART2: TTL;
Display Connection
Accessories (Selectable in Above Menu)
DRAWING
External Interface
Pin
Definition
Type
Functional Description
1
+5V
P
Power supply, DC4.5-5.5V
2
+5V
3
RX2
I
UART2 Input
4
TX2
O
UART2 Output
5
RX1
I
UART1 Input
6
TX1
O
UART1 Output
7
SPK
O
External MOSFET to drive buzzer or speaker
8
GND
P
GND
9
GND
10
GND
Products specifications
Brand
DWIN
Size
1.6"
Resolution
400x400
Active Area (mm)
Ø39.84
Color
Full Color
Nr. Of Color
262K
Operating System
DGUSII OS
Power supply
5V
Display Interface
UART
Display IC
DWIN ASIC T5L0
View Angle
IPS
Touch Panel
Capacitive
O. Temperature (°C)
-10~60
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
DWIN
Size
1.6"
Resolution
400x400
Active Area (mm)
Ø39.84
Color
Full Color
Nr. Of Color
262K
Operating System
DGUSII OS
Power supply
5V
Display Interface
UART
Display IC
DWIN ASIC T5L0
View Angle
IPS
Touch Panel
Capacitive
O. Temperature (°C)
-10~60
Preferred - Not Preferred
Preferred
Related products
HDL662K
USB-UART(10pin) Adapter Board for DWIN COF T5L UART Series
Quote request
HDLUSB1
USB Male - USB Male Cable, Length 50cm
Quote request
