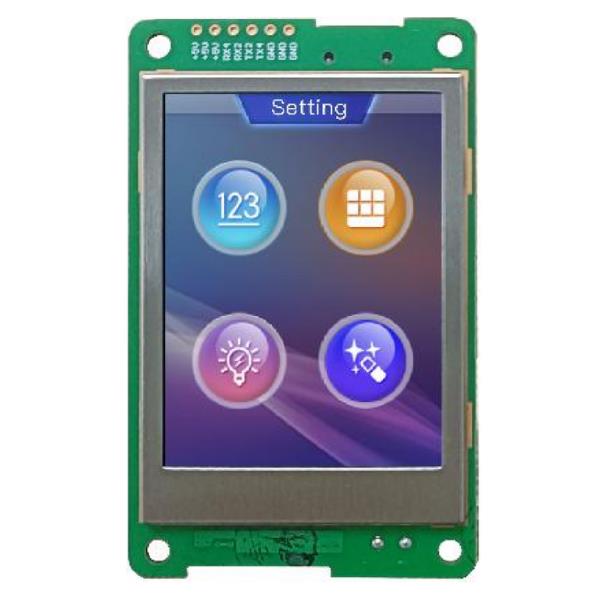

TFT 2.4" 240x320, Intelligent T5L UART COB, 300cd/m², No Touch, Commercial Grade
ASIC
T5L0 ASIC
Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times
Display Parameters
LCD Type
TN, TFT LCD
Viewing Angle
Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
Resolution
240×320 pixels (0°/90°/180°/270°)
Color
18-bit 6R6G6B
Active Area (A.A.)
36.7mm (W)×49.0mm (H)
Backlight Mode
LED
Backlight Service Life
>20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
Brightness
300nit
Brightness Control
0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.
Electrical specifications
Rated Power
<5W
Operating Voltage
4.5~5.5V, typical value of 5V
Operating Current
120mA
VCC=5V, max backlight
60mA
VCC=5V, backlight off
Recommended power supply: 5V 1A DC

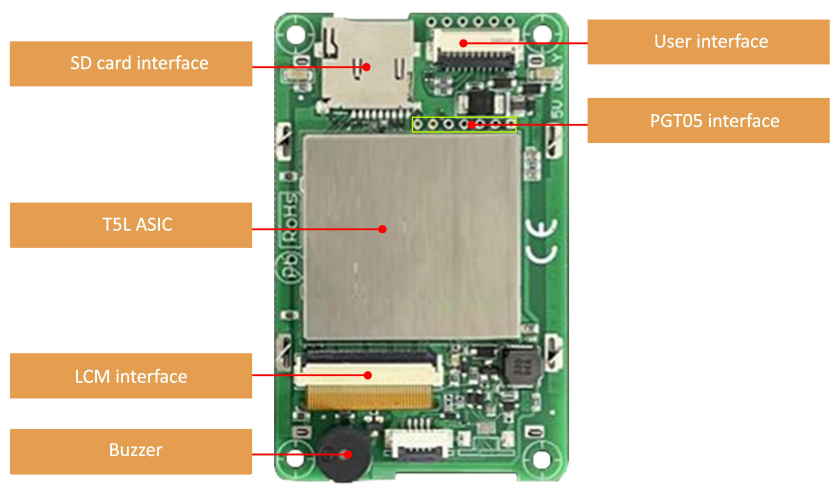

Hardware and interface description
LCM interface
FPC40_0.5mm, MIPI interface
User interface
10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash
16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer
3V passive buzzer. Power: <1W
SD card interface
FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface
When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

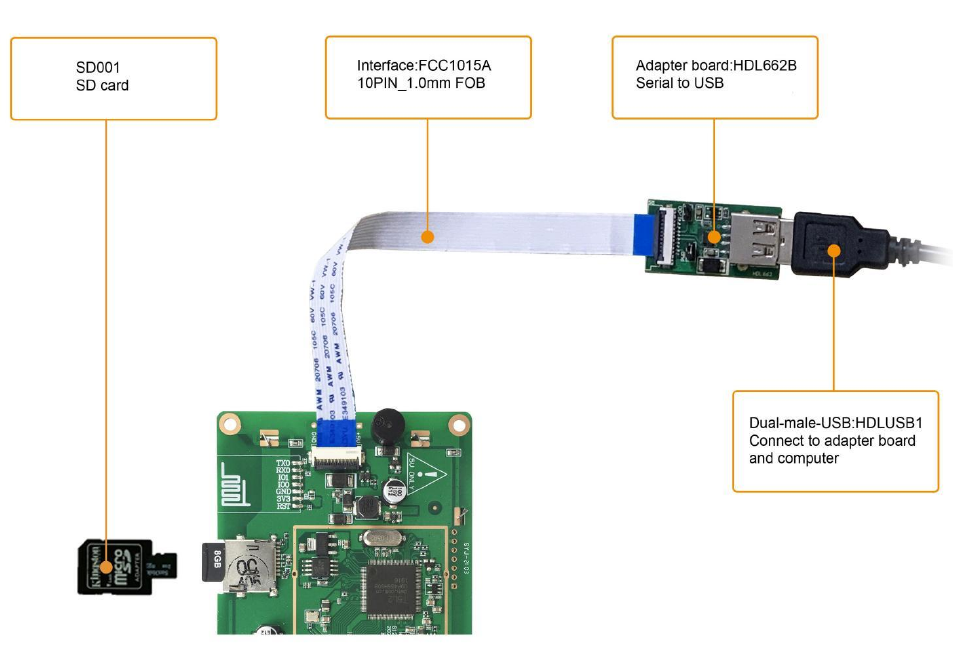

Display Connection

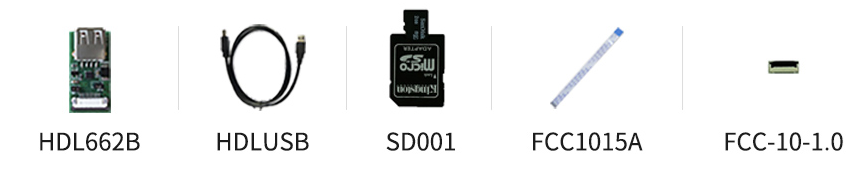

Accessories (Selectable in Above Menu)

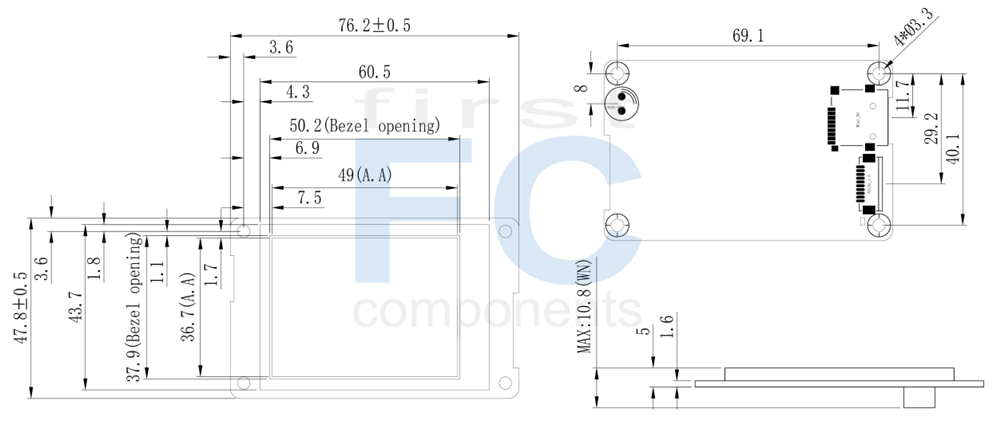

DRAWING
SKU:
DMG32240C024_03WN
Brand:
DWIN
Available:
No
Be the first to review this product
Accessory Kit
FFC Cable
-- Details Below in 'Related Products' --
FCC1015A
Display Connector
-- Details Below in 'Related Products' --
FCC-10-1.0
Added Board
-- Details Below in 'Related Products' --
HDL662B
Added Accessory 1
-- Details Below in 'Related Products' --
HDLUSB1
Added Accessory 2
-- Details Below in 'Related Products' --
SD_CARD [+€8.20]
Price Breaks
Quantity
1+
5+
10+
Price
€23.90
€20.90
€18.60
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
