DMG24240C013_13WN

TFT 1.3" 240x240, Round Intelligent T5L UART with Knob and Encoder, 400cd/m², Wide View Angle (IPS), Commercial Grade

Media

ASIC Information

T5L0 ASIC

Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color	18-bit 6R6G6B
LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	Diameter=32.4mm
Resolution	240×240 pixels (0°/90°/180°/270°)
Backlight	LED
Brightness	400nit

Voltage & Current

Power Voltage	4.5~5.5V, typical value of 5V
Operation Current	95mA @ 5V

Interface

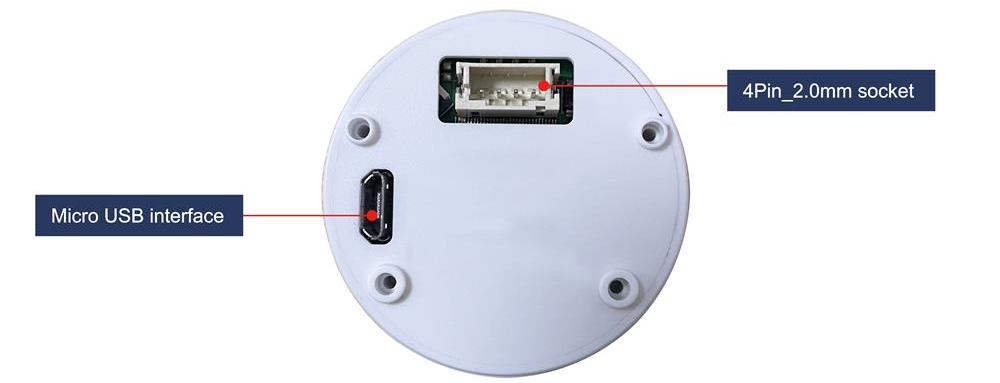

LCM interface	FPC12_0.5mm, 4SPI interface
Baudrate	3150~3225600bps
Output Voltage	Output 1,Iout = -4mA;3.0~3.3 V
Output Voltage	Output 0,Iout =4mA;0~0.3 V
Input Voltage （RXD）	Input 1;2.4~5.0V
Input Voltage （RXD）	Input 0;0~0.5V
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
User Interface	UART2: TTL/CMOS;
Speaker	Onboard speaker. Power: 2W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Connection

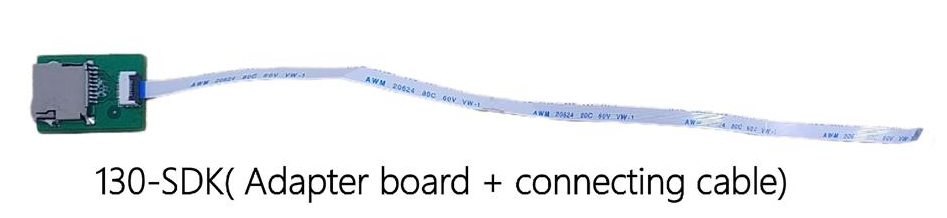

Accessories (Selectable in Above Menu)

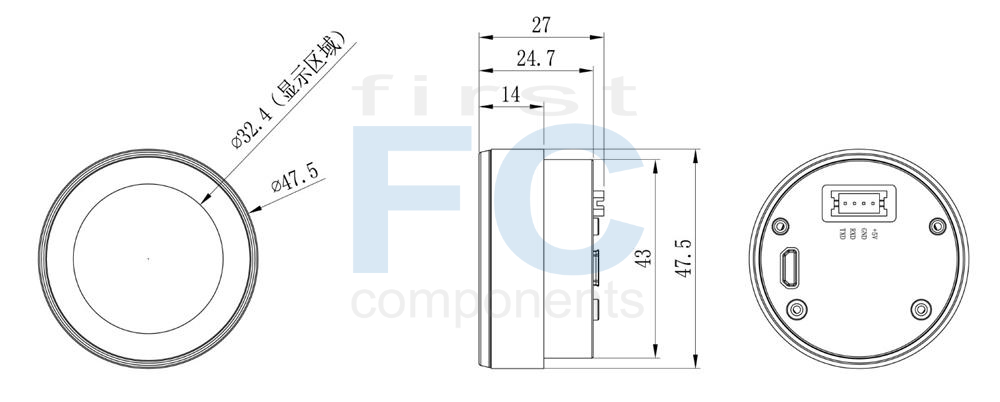

DRAWING

SKU: DMG24240C013_13WN

Brand: DWIN

Available: Yes

Be the first to review this product

Accessory Kit

Added Board
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€33.90

€29.20

€26.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€33.90 excl tax

Overview
Specifications
Download
Contact Us

Media

ASIC Information

T5L0 ASIC

Developed by DWIN. Mass production in 2020,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

Display

Color	18-bit 6R6G6B
LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	Diameter=32.4mm
Resolution	240×240 pixels (0°/90°/180°/270°)
Backlight	LED
Brightness	400nit

Voltage & Current

Power Voltage	4.5~5.5V, typical value of 5V
Operation Current	95mA @ 5V

Interface

LCM interface	FPC12_0.5mm, 4SPI interface
Baudrate	3150~3225600bps
Output Voltage	Output 1,Iout = -4mA;3.0~3.3 V
Output Voltage	Output 0,Iout =4mA;0~0.3 V
Input Voltage （RXD）	Input 1;2.4~5.0V
Input Voltage （RXD）	Input 0;0~0.5V
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
User Interface	UART2: TTL/CMOS;
Speaker	Onboard speaker. Power: 2W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

Products specifications

Brand	DWIN
Size	1.3"
Resolution	240x240
Active Area (mm)	Ø32.4
Color	Full Color
Nr. Of Color	262K
Operating System	DGUSII OS
Power supply	5V
Display Interface	UART
Display IC	DWIN ASIC T5L0
View Angle	IPS
Touch Panel	No touch
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
