100% custom designed Extension Board for Ubique product line. HMI solutions for a wide range of applications. See specs and fill in the 'Extension_Boards_Ubique_Questionnaire' for a cost evaluation.
100% custom designed Extension Board for Ubique product line: HMI solutions for a wide range of applications.
IOT’s new extension boards bring more versatility and utility to the Ubique Panel product line. Ubique Panel offers HMI solutions to address a wide range of applications. Applications that need advanced communication features can rely on the extension boards.

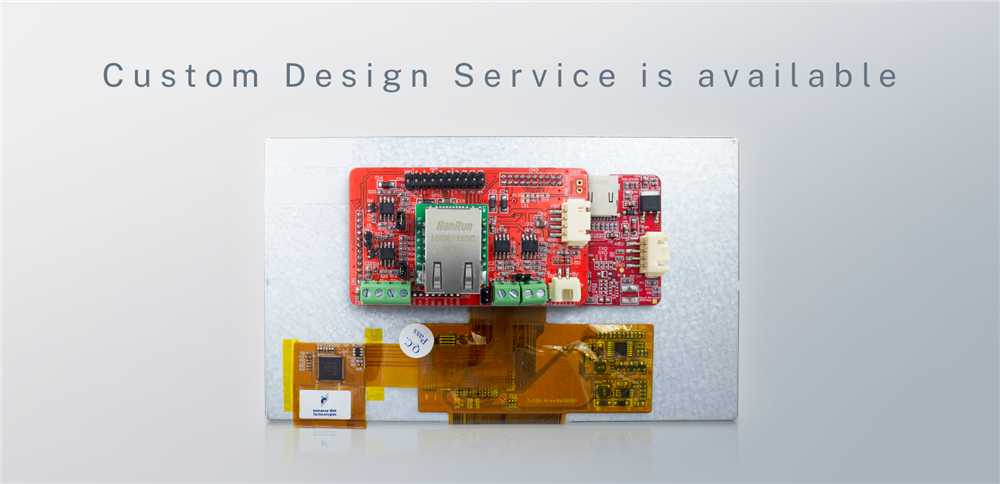

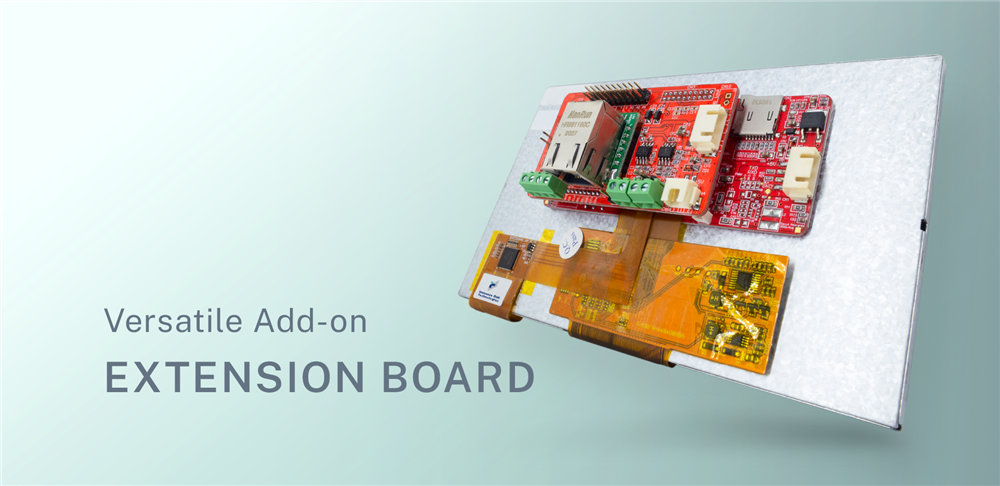

The extension board is mounted on top of the Ubique Panel’s control board making the entire solution compact and easy to fit into the customer's mechanical design.
||For a Cost evaluation of your Custom module, click on the above ‘DOWNLOAD’ tab, compile the ‘Extension_Boards_Ubique_Questionnaire' with your requests and send an e-mail to firstname.lastname@example.org. We’ll contact you soon with our feedback.
Why Extension Board?
What interfaces Extension Board offers?
RS-485, RS-232, CAN Bus, Ethernet, WiFi, BT, NB-IOT, LoRa (Combinations of these interfaces, but not all)
Audio line-out amplifier
Photo-coupler and MOSFET for controlling
Is there any “standard” Extension Board?
What customization options are available?
How to implement communication protocols?
Who needs extension boards?
Industrial machinery > RS-485/Ethernet to connect to PLC (Programmable Logic Controller)
Commercial equipment > Photo-coupler/MOSFET to perform the system control & WiFi to connect to the Cloud
Vending machines (outdoors) > RS-485/Ethernet to connect to main control board & NB-IOT to connect to the Cloud
Auto Applications > CAN Bus for connecting to ECUs
HMI with Communication needs > Internal communication: RS-485, Ethernet, UART & External communication: Ethernet, CAN Bus, WiFi, NB-IOT
HMI with control needs > Ethernet/RS-485 to connect to PLC & Photo-couplers/MOSFET to drive the system functions
