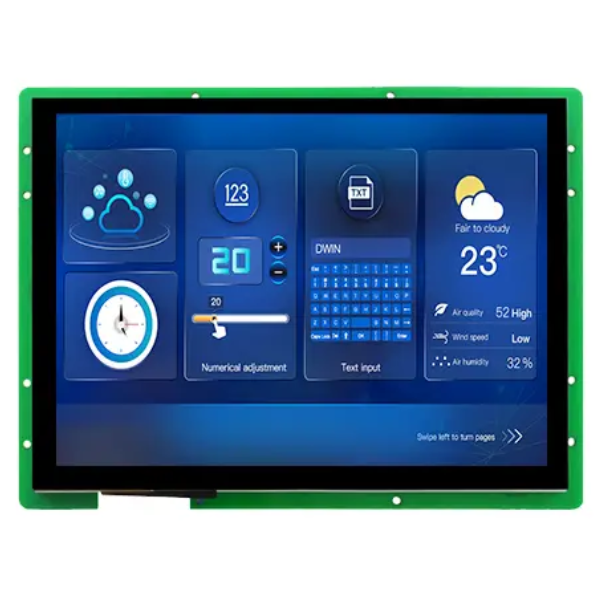

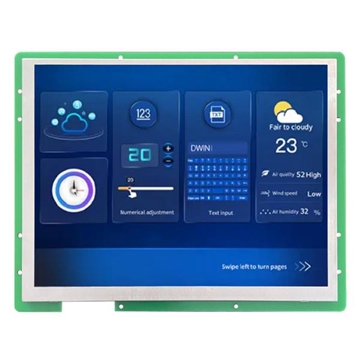

TFT 10.4" 1024x768, Intelligent T5L UART COB, 800cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

Media



ASIC Information

T5L2 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times



Display

Color 16.7M(16777216) colors，24-bit 8R8G8B
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area（A.A） 211.20mm (W)×158.40mm (H)
Resolution 1024X768
Backlight LED
Brightness 800nit



Touch parameters

Type CTP (Capacitive touch panel)
Structure G+G structure with surface cover of Asahi tempered glass
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch



Voltage & Current

Power Voltage 6~36V
Operation Current VCC = +12V, Backlight on
VCC = +12V, Backlight off



Interface

LCM interface FPC60_0.5mm, LVDS interface
RTP interface 4Pin_1.0mm interface
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA;3.0~3.3 V
Output 0, Iout =-1mA;0~0.3 V
Input Voltage
（RXD）		 Input 1， Iin = 1mA；2.4~5.0V
  Input 0， Iin = -1mA；0~0.5V
Interface UART2： N81，ON=TTL/CMOS; OFF=RS232
UART4： Optional N81/E81/O81/N82 four mode，ON=TTL/CMOS; OFF=RS232 (Only available after OS
configuration)
User Interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to

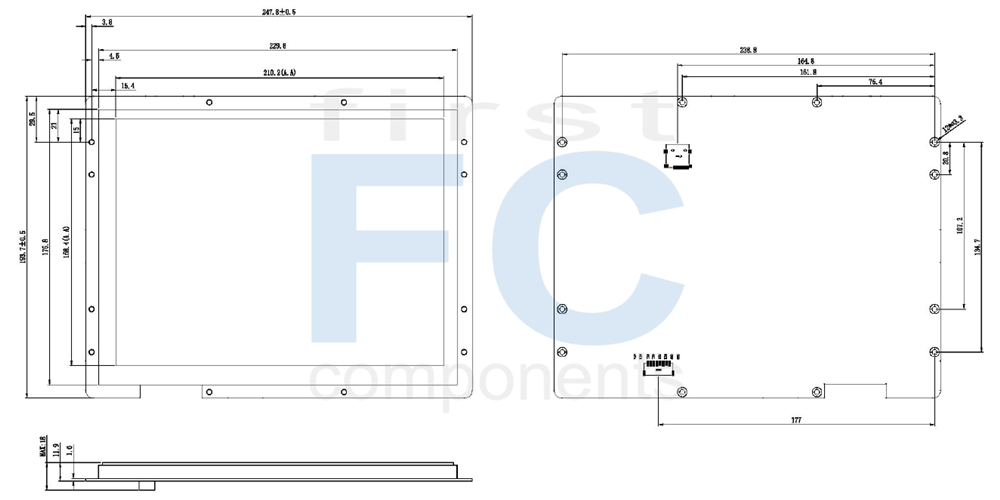

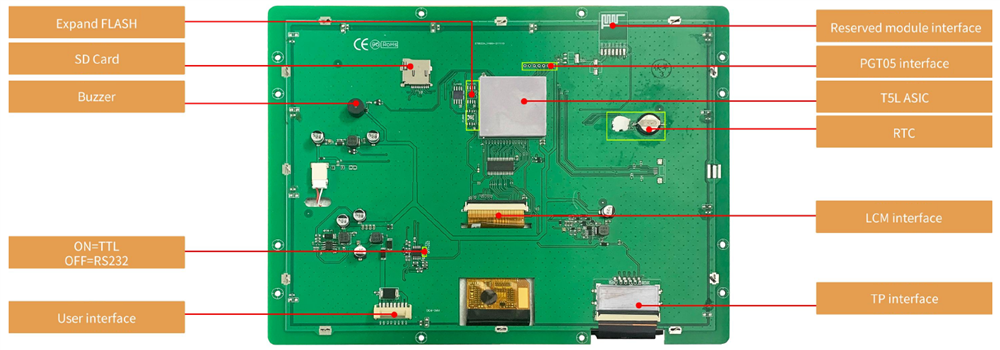

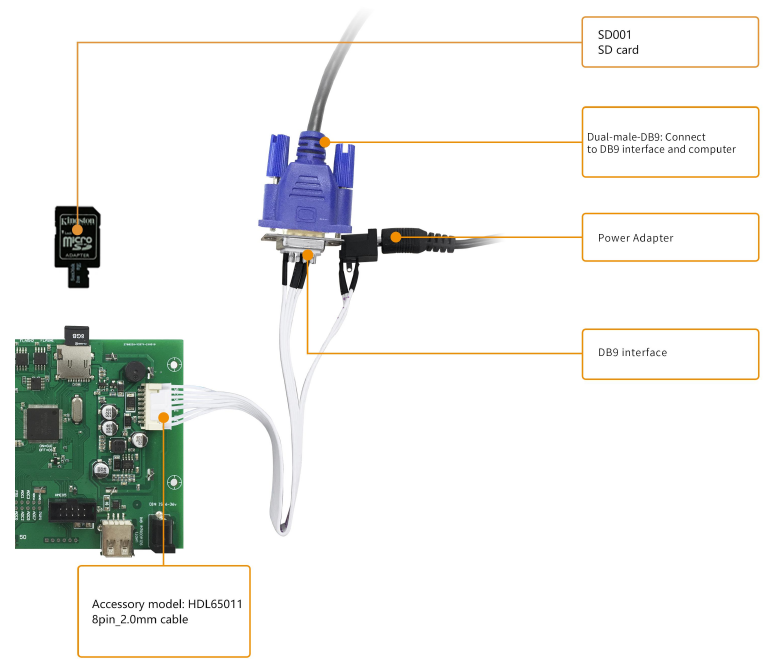

Display Connection

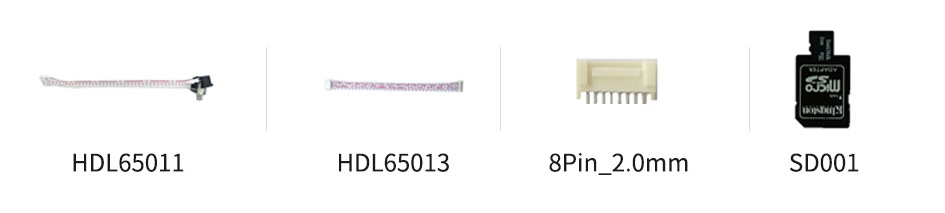

Accessories (Selectable in Above Menu)
