DMG10600K101_03WTC

TFT 10.1" 1024x600, Intelligent T5L RS485/RS232 COB, 250cd/m²,Wide View Angle (IPS) + Capacitive Touch Panel (GG), Medical Grade

Media

ASIC Information

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216） colors
LCD Type	IPS, TFT LCD
Viewing Angle	85°/85°/85°/85° (L/R/U/D), wide viewing angle
Active Area（A.A）	222.72mm (W)×125.28mm (H)
Resolution	1024x600
Backlight	LED
Brightness	250nit

Voltage & Current

Operating Voltage	6V-36V
Operating Current	VCC=12V, backlight on, 340mA
Operating Current	VCC=12V, backlight off, 100mA

Interface

Baudrate	3150~3225600bps, typical value of 115200bps
Output Voltage	Output 1, Iout = 1mA;2.5~-5.0 V
Output Voltage	Output 0, Iout =-1mA;-0.5~-2.5 V
Input Voltage （RXD）	Input 1， Iin = 1mA；0~2.5V
Input Voltage （RXD）	Input 0， Iin = -1mA；-2.5~-2V
Interface	UART2：RS232; UART4：RS232;（Only available after OS configuration) UART5：RS485;（Only available after OS configuration)
User interface	2Pin_2.0mm for RS485, 8Pin_2.0mm for RS232
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

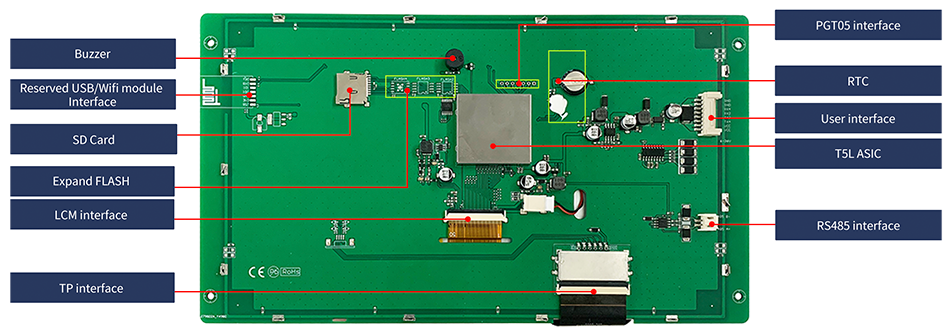

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

SKU: DMG10600K101_03WTC

Brand: DWIN

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€111.80

€103.20

€99.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€111.80 excl tax

Overview
Specifications
Download
Contact Us

Media

ASIC Information

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216） colors
LCD Type	IPS, TFT LCD
Viewing Angle	85°/85°/85°/85° (L/R/U/D), wide viewing angle
Active Area（A.A）	222.72mm (W)×125.28mm (H)
Resolution	1024x600
Backlight	LED
Brightness	250nit

Voltage & Current

Operating Voltage	6V-36V
Operating Current	VCC=12V, backlight on, 340mA
Operating Current	VCC=12V, backlight off, 100mA

Interface

Baudrate	3150~3225600bps, typical value of 115200bps
Output Voltage	Output 1, Iout = 1mA;2.5~-5.0 V
Output Voltage	Output 0, Iout =-1mA;-0.5~-2.5 V
Input Voltage （RXD）	Input 1， Iin = 1mA；0~2.5V
Input Voltage （RXD）	Input 0， Iin = -1mA；-2.5~-2V
Interface	UART2：RS232; UART4：RS232;（Only available after OS configuration) UART5：RS485;（Only available after OS configuration)
User interface	2Pin_2.0mm for RS485, 8Pin_2.0mm for RS232
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

Products specifications

Brand	DWIN
Size	10.1"
Resolution	1024x600
Viewing Area (mm)	222.72x125.28
Active Area (mm)	222.72×125.28
Color	Full Color
Nr. Of Color	16.7M
Operating System	DGUSII OS
Power supply	12V
Display Interface	RS232/RS485
Display IC	DWIN ASIC T5L2
View Angle	IPS
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	DWIN
Size	10.1"
Resolution	1024x600
Viewing Area (mm)	222.72x125.28
Active Area (mm)	222.72×125.28
Color	Full Color
Nr. Of Color	16.7M
Operating System	DGUSII OS
Power supply	12V
Display Interface	RS232/RS485
Display IC	DWIN ASIC T5L2
View Angle	IPS
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
