    PH128800T004-ZZC06

    TFT 10.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, MXT1066 IC), V-Com, B/L Power on FPC
    Brand: Powertip
    Cod.: PH128800T004-ZZC06

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €145,00
    €130,50
    €122,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €145,00 IVA esclusa
    i h

    DESCRIPTION

    PH128800T004-ZZC06 is a 10.1-inch display, featuring IPS /with V com, BL power, high brightness.

    Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.



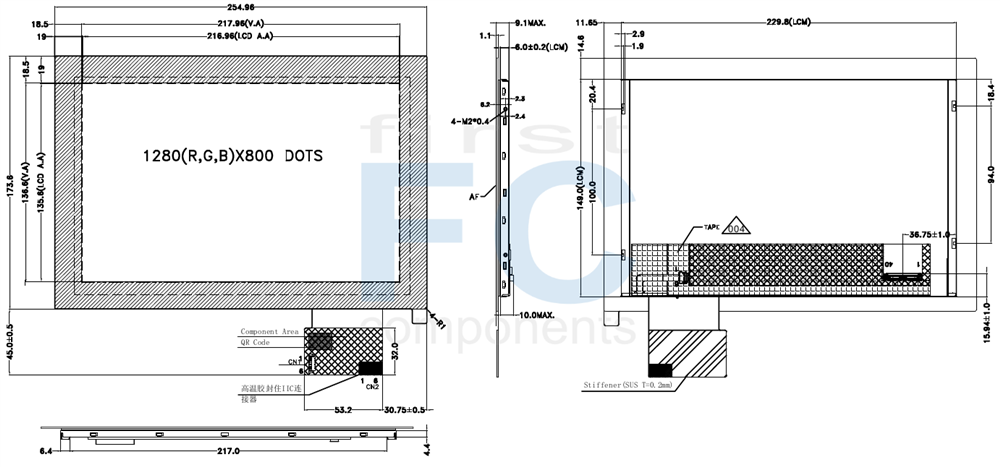

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin
    Number
    SymbolFunction
    1 NC No Connection
    2 VDD Power Supply
    3 VDD Power Supply
    4 NC No Connection
    5 NC No Connection
    6 NC No Connection
    7 NC No Connection
    8 LV0N -LVDS Differential Data Input
    9 LV0P

    +LVDS Differential Data Input

    10 GND Ground
    11 LV1N -LVDS Differential Data Input
    12 LV1P +LVDS Differential Data Input
    13 GND

    Ground

    14 LV1N -LVDS Differential Data Input
    15 LV1P +LVDS Differential Data Input
    16 GND Ground
    17 LVCLKN -LVDS Differential Clock Input
    18 LVCLKP +LVDS Differential Clock Input
    19 GND Ground
    20 LV3N -LVDS Differential Data Input
    21 LV3P +LVDS Differential Data Input
    22 GND Ground
    23 LED_GND Ground for LED Driving
    24 LED_GND Ground for LED Driving
    25 LED_GND Ground for LED Driving
    26 NC No Connection
    27 LED_PWM LED Backlight PWM control signal for dimming
    28 LED_EN LED Backlight Enable Input
    29 NC No Connection
    30 NC

    No Connection

    31 LED_VCC Power Supply for LED Backlight driving
    32 LED_VCC Power Supply for LED Backlight driving
    33 LED_VCC Power Supply for LED Backlight driving
    34 NC No Connection
    35 NC No Connection
    36 NC No Connection
    37 NC No Connection
    38 NC No Connection
    39 NC No Connection
    40 NC No Connection



    CN1 (CTP USB Interface)

    Pin
    Number
    SymbolFunction
    1 VDD Power Supply (+5.0)
    2 D- D- Differential Data Input
    3 D+ D+ Differential Data Input
    4 NC No Connection
    5 GND Ground
    6 NC No Connection



    General Specification

    ItemDimensionUnit
    Screen size(Inch) 10.1(Diagonal) -
    Resolution 1280*(R-G-B)*800 Dots mm
    Display mode

    Transmissive, Normally Black

    mm
    Color 16.7M
    Interface 8 bit LVDS
    ROHS This product conforms the RoHS of PTC



    Absolute Maximum Ratings

    ParameterSymbolConditionMinMaxUnit
    Power Supply Voltage VDD - -0.3 +4.0 V
    Power Supply Voltage LED_VCC - -0.3 +27 V
    Operating Temperature TOP(TS) Note 1 -20 +70 °C
    Storage Temperature TST(TA) Note 2 -30 +80 °C
    Storage Humidity Hd Ta<60°C 10 90 %RH



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Power Supply Voltage for LCD Driver VDD - 2.75 3.3 3.6 V
    Power Supply Voltage for LED Driver LED_VCC - 8.0 12.0 15.0 V
    Power Supply Current IDD VDD03.3V - 400 600 mA
    Power Supply Current for LED Driver ILED_VCC

    LED_VCC=12V

    - 650 700 mA
    Power Consumption Pd

    VDD=3.3V

    LED_VCC=12V

    - - 1.98+8.4 W
    PWM Signal Voltage High VPWM - 1.9 - - V
    Low - - - 0.8 V
    LED Enable Voltage High VLED_EN - 1.9 - - V
    Low - - - 0.8 V
    PWM Freqency Fpwm - 100 - 20000 Hz



    Specifiche di prodotto
    Size 10.1"
    Resolution 1280x800
    Active Area (mm) 216.96x135.60
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller MXT1066
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
