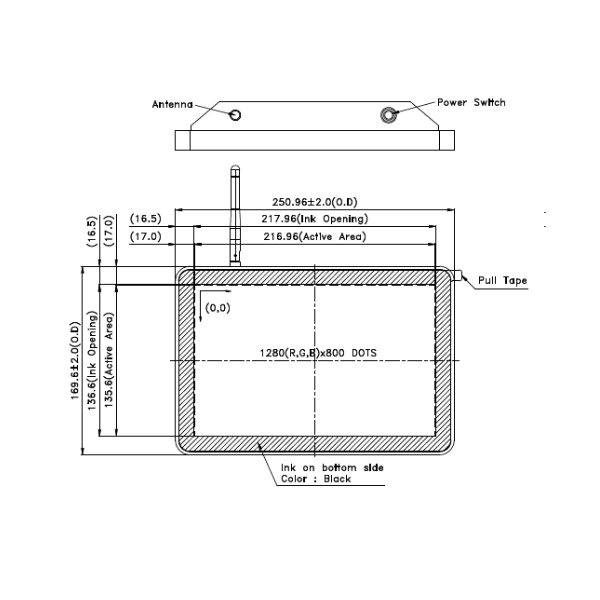

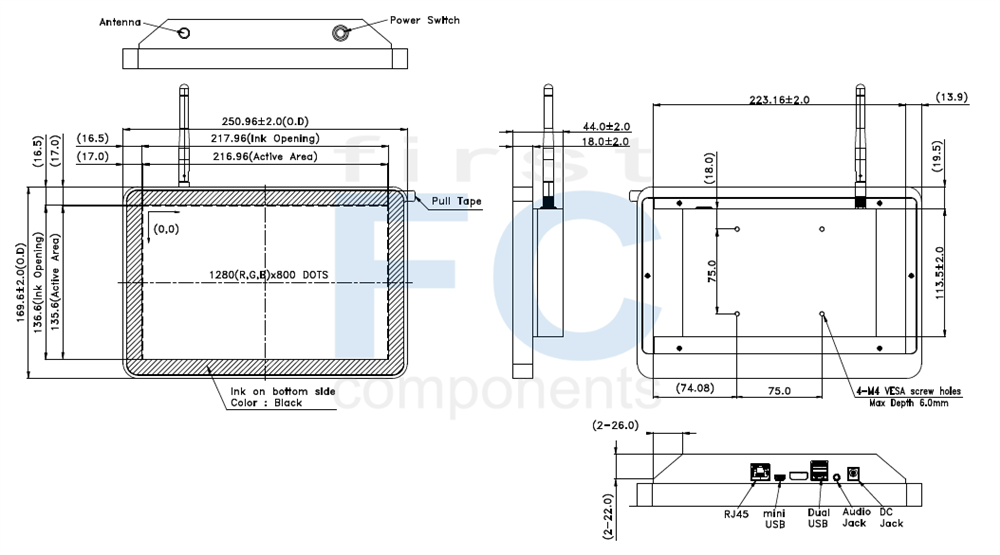

DRAWING

SPECIFICATIONS
General Specification
| Hardware |
| CPU |
RISC Processor |
i.MX 8M Mini (Quad Cortex-A53) |
| Memory |
On Board RAM |
2GB LPDDR4 SDRAM |
|
On Board Flash
|
8GB eMMC Flash |
| Display |
Resolution |
1280 x 800 (RGB) DOTS |
| Screen Size |
10.1 inch |
| Display Mode |
Transmissive, Normally Black |
| Touch Type |
Projective Capacitive Touch Panel |
| Functions |
USB |
1 x USB OTG
2 X USB 2.0 Host
|
| Ethernet |
10/100/1000 Mbps |
| Wireless |
WIFI IEEE 802.11 a/b/g/n/ac
Bluetooth
Antenna
|
| Switch |
Power Button |
| Power Input |
DC |
9V~24V |
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min | Max | Unit |
| Power Supply |
VIN |
- |
-0.3 |
26.0 |
V |
| Operating Temperature(TS) |
TOP |
- |
0 |
+70 |
°C |
| Storage Temperature (TA) |
TST |
- |
-30 |
+80 |
°C |
| Humidity |
Hd |
Ta=60°C |
10 |
90 |
%RH |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Power Supply Voltage |
VIN |
- |
9 |
12 |
24 |
V |
| Power Supply Current |
IIN1 |
VIN=12V |
- |
TBD |
- |
A |
| IO High-Level input voltage |
VIH |
- |
0.7xVdd3v3 |
- |
Vdd3v3+0.3 |
V |
| IO Low-Level input voltage |
VIL |
- |
-0.3 |
- |
0.3xvdd3v3 |
V |
| IO High-Level output voltage |
VOH |
- |
- |
- |
3.6 |
V |
| IO Low-level output voltage |
VOL |
- |
-0.3 |
- |
- |
V |
Specifiche di prodotto
|
Size
|
10.1" |
|
Resolution
|
1280x800 |
|
Active Area (mm)
|
216.96x135.60 |
|
Color
|
Full Color |
|
CPU
|
i.MX8M 1.6GHz Quad-Core 64bit ARM Cortex-A53 |
|
Operating System
|
Android / Yocto |
|
Power supply
|
12V |
|
Display Interface
|
USB/LAN/WiFi/BT/Audio |
|
View Angle
|
IPS |
|
Sunlight Readable
|
High 601~1200cd/m² |
|
Touch Panel
|
Capacitive |
|
O. Temperature (°C)
|
0~70 |
|
Preferred - Not Preferred
|
Preferred |
