    HRA128800T006-ZFC

    TFT 10.1" 1280x800, 400cd/m², IPS, with CTP Embedded Display Kit - PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35, Memory DDR3L 2GB, Android/Buildroot OS, Multiple interfaces, WiFI & BT Module
    Brand: Powertip
    Cod.: HRA128800T006-ZFC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €248,60
    €223,80
    €210,30

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €248,60 IVA esclusa
    i h

    DESCRIPTION

    POWERTIP's Embedded MPU display kits are the go-to solution to implement Human Machine Interface (HMI) applications. With multiple peripheral interfaces (I2C, UART, SPI, USB2.0, PWM, I2S, etc.), hardware video decoding capability and both Linux or Android OS support any customer requirement can be met. We provide Board Support Packages (BSP) in order to help customers build their own root file system and accelerate development on the embedded system conveniently for their HMI solutions.

    This Embedded Kit consits of:

    1) System on Module (SoM)

    2) Multi-interface CARRIER BOARD

    3) 10.1" Industrial grade TFT-LCD panel

    4) Connection accessories



    1. SYSTEM ON MODULE - SoM TYPE-1







    2. CARRIER BOARD





    3. TFT-LCD







    Contact us at [email protected] to have the Board Support Package (BSP) and user guide needed to install your preferred OS. We can also supply pre-built image files to speed up your development!

    Specifiche di prodotto
    Size 10.1"
    Resolution 1280x800

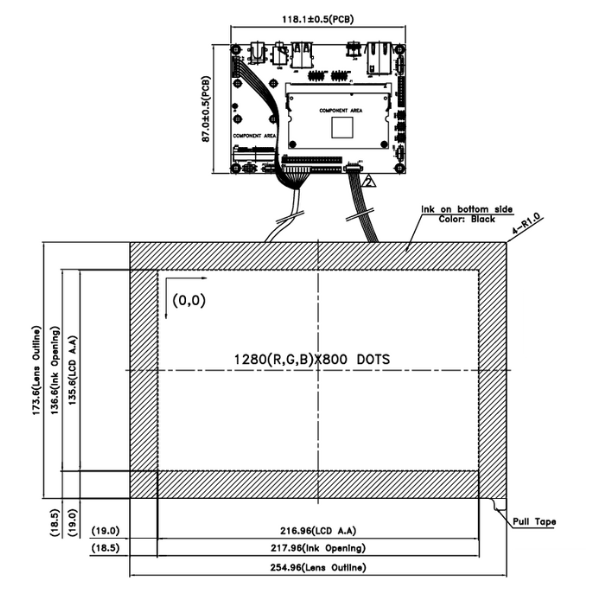

    Active Area (mm) 216.96x135.60
    Color Full Color
    CPU PX30 1.6GHz Quad-Core 64bit ARM Cortex-A35
    Operating System Android / Buildroot
    Power supply 12V
    View Angle IPS
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    In the Box SoM TYPE-1 + CARRIER BOARD + TFT Panel + LVDS Cable + CTP Cable
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
