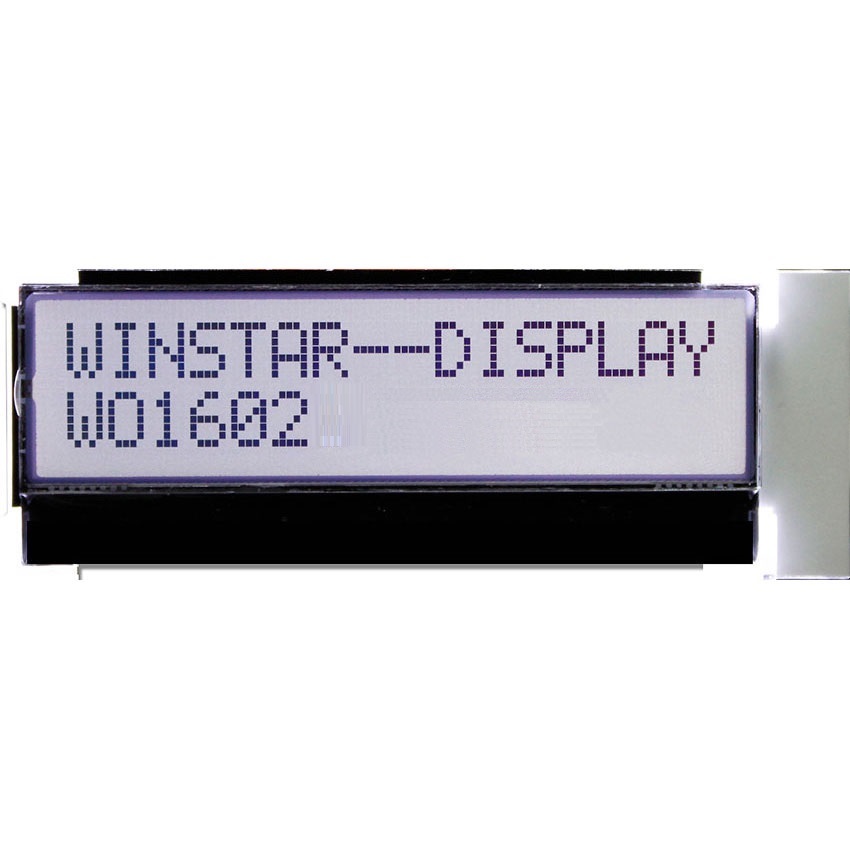

    WO1602AT-85HI#000-FC

    Character LCD 1.5" 16x2, B/L white, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C, 6 O'clock, Super wide operating temperature -30+80°C (IC ST7032i)
    Manufacturer: Winstar
    SKU: WO1602AT-85HI#000-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    Price
    €8.70
    €7.80

    For quantities above 9pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €8.70 excl tax
    i h

    MOQ

    After sample PO, MP MOQ 1Kpcs



    DESCRIPTION

    16 characters x 2 lines COG monochrome lcd display module. This COG LCM has the outline dimension 51.2 x 20.7 mm and VA size of 40.0 x 10.0 mm. This series is built in with ST7032I driver and the interface is I2C. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

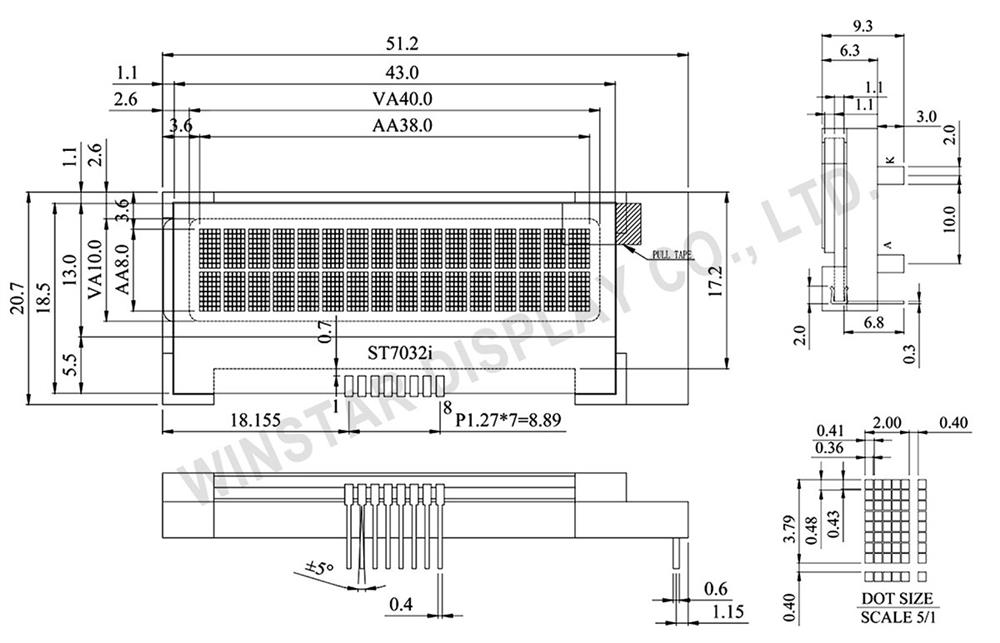

    DRAWING

    Winstar WO1602I - COG Monochrome LCD Display Module 16x2

    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 Vout Positive Voltage output
    2 CAP1N DC/DC voltage converter.
    3 CAP1P DC/DC voltage converter.
    4 VDD Power supply for logic
    5 VSS Ground
    6 SDA Serial input data
    7 SCL Serial clock input
    8 RST Controller reset signal, Active Low



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 51.2 × 20.7 mm
    Viewing Area 40.0 × 10.0 mm
    Dot Pitch 0.41 × 0.48 mm
    Dot Size 0.36 × 0.43 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 4.50 V


    Products specifications
    Size 1.5"
    Resolution 16x2
    Active Area (mm) 38.00x8.00
    Dot Size 0.36x0.43
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 3V
    Display Interface I2C
    Display IC ST7032i
    Constructive Structure COG
    View Angle 6H
    Frame No
    O. Temperature (°C) -30~80
    Data Connection Pin Strip
    Pin Nr. 8
    Pin Pitch 1.27mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
