WO12864-85HC2#FC
WO12864-85HC2#FC

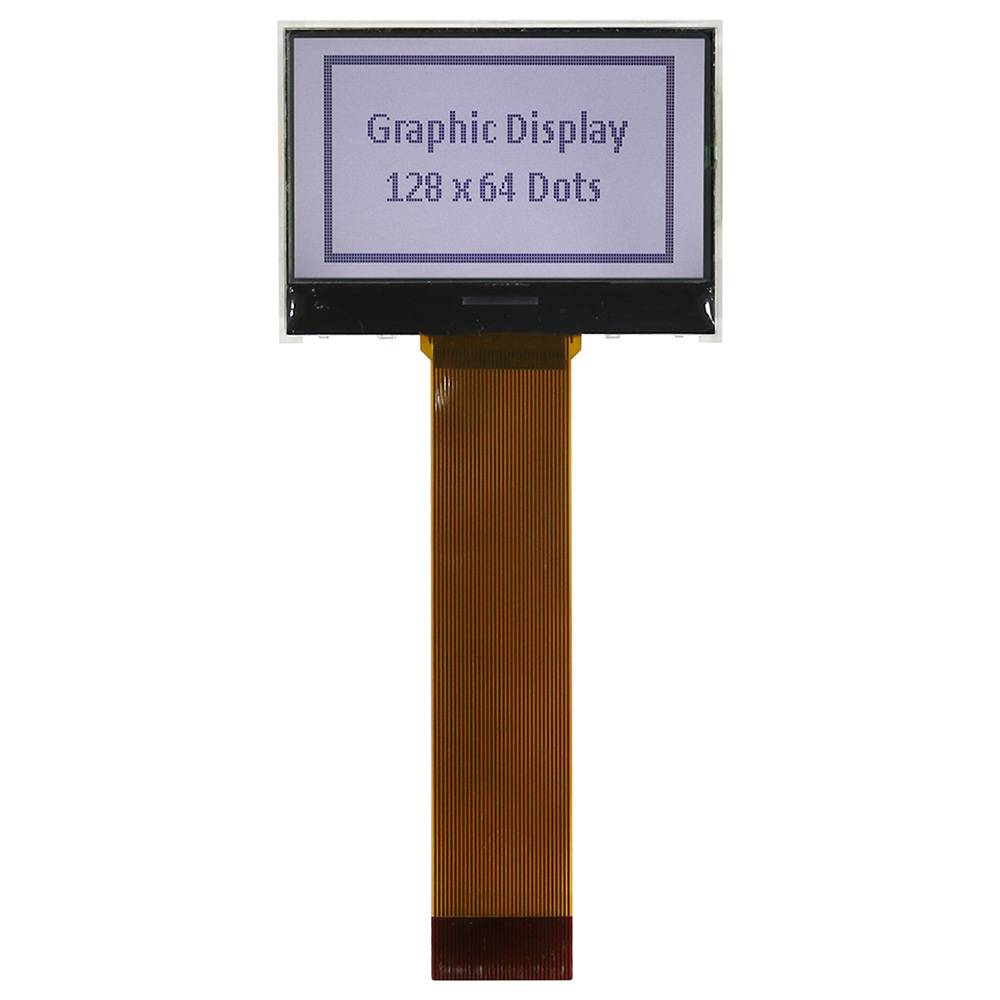

Graphic LCD 1.9" 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7565P)

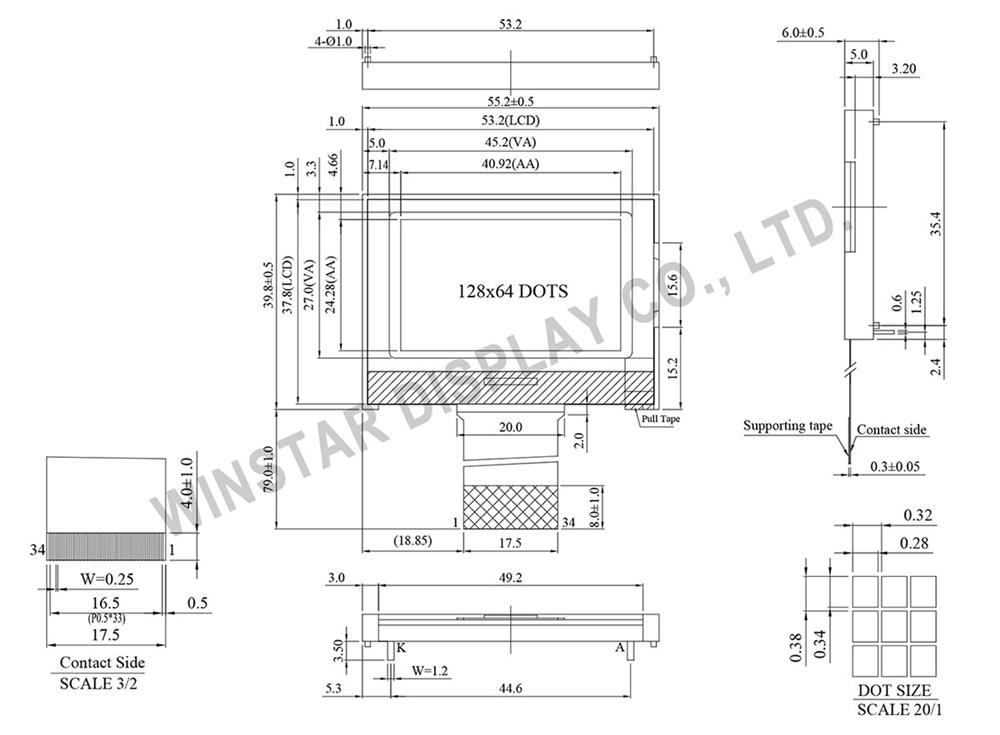

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
IRS
Selects the resistors for the V0 voltage level adjustment
2
/HPM
Control power supply for LCD “H”: Normal mode, “L”: High power mode
3
P/S
Selects the interface type: Serial or Parallel.
4
C86
Interface selection 6800/8080
5
VR
LCD Contrast Adjustment when IRS = “L”
6~10
V0~V4
Bias voltage levels for LCD driving
11
VRS
This is the internal-output VREG power supply for the LCD power supply voltage regulator.
12
CAP4+
DC/DC voltage converter.
13
CAP2-
DC/DC voltage converter.
14
CAP2+
DC/DC voltage converter.
15
CAP1+
#N/A
16
CAP1-
DC/DC voltage converter.
17
CAP3+
DC/DC voltage converter.
18
CAP5+
DC/DC voltage converter
19
Vout
Positive Voltage output
20
V
SS
Ground
21
V
DD
Power supply for logic
22~29
D7~D0
#N/A
30
/RD(E)
8080 family: Read signal, 6800 family: Enable clock
31
/WR(RW)
8080 family: Write signal, 6800 family: Read/Write signal
32
A0
Data/ Instruction select signal
33
/RES
Controller reset signal, Active Low
34
/CS1
This is the chip select signal.
Mechanical Data
Item
Standard Value
Unit
Module Dimension
55.2 × 39.8
mm
Viewing Area
45.2 × 27.0
mm
Dot Pitch
0.32 × 0.38
mm
Dot Size
0.28 × 0.34
mm
Electrical Characteristics
Item
Symbol
Standard value
typ.
Unit
Input Voltage
VDD
3.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss
9.60
V
SKU:
WO12864-85HC2#FC
Brand:
Winstar
Available:
Yes
