NE042-N001GD

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

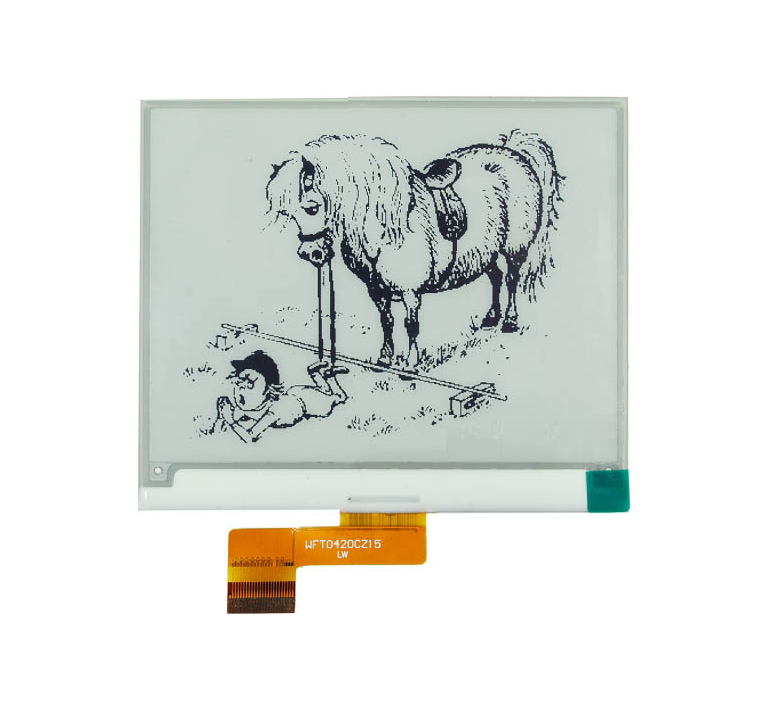

The display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 4.2” active area contains 400×300 pixels, and has 1-bit white/black full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.

FEATURES

•          High contrast
•          High reflectance
•          Ultra wide viewing angle
•          Ultra low power consumption
•          Pure reflective mode
•          Bi-stable
•          Commercial temperature range
•          Landscape, portrait mode
•          Antiglare hard-coated front-surface
•          Low current deep sleep mode
•          On chip display RAM
•          Waveform stored in On-chip OTP
•          Serial peripheral interface available
•          On-chip oscillator
•          On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
•          I2C Signal Master Interface to read external temperature sensor
•          Available in COG package IC thickness 300um
